SPI T6963C Graphic Lcd Library

The mikroBasic PRO for PIC provides a library for working with Glcds based on TOSHIBA T6963C controller via SPI interface. The Toshiba T6963C is a very popular Lcd controller for the use in small graphics modules. It is capable of controlling displays with a resolution up to 240x128. Because of its low power and small outline it is most suitable for mobile applications such as PDAs, MP3 players or mobile measurement equipment. Although this controller is small, it has a capability of displaying and merging text and graphics and it manages all interfacing signals to the displays Row and Column drivers.

For creating a custom set of Glcd images use Glcd Bitmap Editor Tool.

Important :

The library uses the SPI module for communication.
The user must initialize SPI module before using the SPI T6963C Glcd Library.
To use constants located in __Lib_SPIT6963C_Const.mbas file, user must include it the source file : include __Lib_SPIT6963C_Const.
This Library is designed to work with mikroElektronika's Serial Glcd 240x128 and 240x64 Adapter Boards pinout, see schematic at the bottom of this page for details.
PIC16 family of MCUs does not support working with external resources.

Some mikroElektronika's adapter boards have pinout different from T6369C datasheets. Appropriate relations between these labels are given in the table below:

Adapter Board	T6369C datasheet
RS	C/D
R/W	/RD
E	/WR

Library Dependency Tree

External dependencies of SPI T6963C Graphic Lcd Library

The implementation of SPI T6963C Graphic Lcd Library routines is based on Port Expander Library routines.

External dependencies are the same as Port Expander Library external dependencies.

Library Routines

SPI_T6963C_Config
SPI_T6963C_WriteData
SPI_T6963C_WriteCommand
SPI_T6963C_SetPtr
SPI_T6963C_Set_Ext_Buffer
SPI_T6963C_WaitReady
SPI_T6963C_Fill
SPI_T6963C_Dot
SPI_T6963C_Set_Font_Adv
SPI_T6963C_Set_Font_Ext_Adv
SPI_T6963C_Write_Char
SPI_T6963C_Write_Char_Adv
SPI_T6963C_Write_Text
SPI_T6963C_Write_Text_Adv
SPI_T6963C_Write_Const_Text_Adv
SPI_T6963C_Line
SPI_T6963C_Rectangle
SPI_T6963C_rectangle_round_edges
SPI_T6963C_rectangle_round_edges_fill
SPI_T6963C_Box
SPI_T6963C_Circle
SPI_T6963C_circle_fill
SPI_T6963C_Image
SPI_T6963C_Ext_Image
SPI_T6963C_PartialImage
SPI_T6963C_Ext_PartialImage
SPI_T6963C_Sprite
SPI_T6963C_Set_Cursor
SPI_T6963C_ClearBit
SPI_T6963C_SetBit
SPI_T6963C_NegBit
SPI_T6963C_DisplayGrPanel
SPI_T6963C_DisplayTxtPanel
SPI_T6963C_SetGrPanel
SPI_T6963C_SetTxtPanel
SPI_T6963C_PanelFill
SPI_T6963C_GrFill
SPI_T6963C_TxtFill
SPI_T6963C_Cursor_Height
SPI_T6963C_Graphics
SPI_T6963C_Text
SPI_T6963C_Cursor
SPI_T6963C_Cursor_Blink

SPI_T6963C_Config

Prototype	sub procedure SPI_T6963C_Config(dim width as word, dim height as word, dim fntW as word, dim DeviceAddress as byte, dim wr as byte, dim rd as byte, dim cd as byte, dim rst as byte)
Returns	Nothing.
Description	Initializes T6963C Graphic Lcd controller. Parameters : `width:` width of the Glcd panel `height:` height of the Glcd panel `fntW:` font width `DeviceAddress:` SPI expander hardware address, see schematic at the bottom of this page `wr:` write signal pin on Glcd control port `rd:` read signal pin on Glcd control port `cd:` command/data signal pin on Glcd control port `rst:` reset signal pin on Glcd control port Display RAM organization: The library cuts RAM into panels : a complete panel is one graphics panel followed by a text panel (see schematic below). schematic: +---------------------+ /\ + GRAPHICS PANEL #0 + \| + + \| + + \| + + \| +---------------------+ \| PANEL 0 + TEXT PANEL #0 + \| + + \/ +---------------------+ /\ + GRAPHICS PANEL #1 + \| + + \| + + \| + + \| +---------------------+ \| PANEL 1 + TEXT PANEL #1 + \| + + \| +---------------------+ \/
Requires	Global variables : `SPExpanderCS`: Chip Select line `SPExpanderRST`: Reset line `SPExpanderCS_Direction`: Direction of the Chip Select pin `SPExpanderRST_Direction`: Direction of the Reset pin must be defined before using this function. SPI module needs to be initialized. See SPI1_Init and SPI1_Init_Advanced routines.
Example	' port expander pinout definition dim SPExpanderRST as sbit at RC0_bit SPExpanderCS as sbit at RC1_bit SPExpanderRST_Direction as sbit at TRISC0_bit SPExpanderCS_Direction as sbit at TRISC1_bit ' end of port expander pinout definition ... ' Initialize SPI module SPI1_Init() SPI_T6963C_Config(240, 64, 8, 0, 0, 1, 3, 4)

SPI_T6963C_writeData

Prototype	sub procedure SPI_T6963C_WriteData(dim Ddata as byte)
Returns	Nothing.
Description	Writes data to T6963C controller via SPI interface. Parameters : `Ddata:` data to be written
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_writeData(AddrL)

SPI_T6963C_writeCommand

Prototype	sub procedure SPI_T6963C_writeCommand(dim Ddata as byte)
Returns	Nothing.
Description	Writes command to T6963C controller via SPI interface. Parameters : `Ddata:` command to be written
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_writeCommand(SPI_T6963C_CURSOR_POINTER_SET)

SPI_T6963C_setPtr

Prototype	sub procedure SPI_T6963C_setPtr(dim p as word, dim c as byte)
Returns	Nothing.
Description	Sets the memory pointer p for command c. Parameters : `p:` address where command should be written `c:` command to be written
Requires	SToshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_setPtr(T6963C_grHomeAddr + start, SPI_T6963C_ADDRESS_POINTER_SET)

SPI_T6963C_Set_Ext_Buffer

Prototype	sub procedure SPI_T6963C_Set_Ext_Buffer(dim getExtDataPtr as ^TSPI_T6963C_Get_Ext_Data_Ptr)
Returns	Nothing.
Description	Function sets pointer to the user function which manipulates the external resource. Parameters : `TSPI_T6963C_Get_Ext_Data_Ptr` - pointer to the user function. User function prototype should be in the following format: `sub function External(dim offset as longword, dim count as longword, dim byref num as longword) as ^byte` Parameters used in the function have the following meaning : `offset` - offset from the beginning of the resource from where the data is requested. `count` - requested number of bytes. `num` - variable for holding the returned number of bytes (less or equal to the number of acquired bytes).
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_Set_Ext_Buffer(@ReadExternalBuffer)

SPI_T6963C_waitReady

Prototype	sub procedure SPI_T6963C_waitReady()
Returns	Nothing.
Description	Pools the status byte, and loops until Toshiba Glcd module is ready.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_waitReady()

SPI_T6963C_fill

Prototype	sub procedure SPI_T6963C_fill(dim v as byte, dim start as word, dim len as word)
Returns	Nothing.
Description	Fills controller memory block with given byte. Parameters : `v:` byte to be written `start:` starting address of the memory block `len:` length of the memory block in bytes
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_fill(0x33, 0x00FF, 0x000F)

SPI_T6963C_dot

Prototype	sub procedure SPI_T6963C_dot(dim x as integer, dim y as integer, dim color as byte)
Returns	Nothing.
Description	Draws a dot in the current graphic panel of Glcd at coordinates (x, y). Parameters : `x:` dot position on x-axis `y:` dot position on y-axis `color:` color parameter. Valid values: SPI_T6963C_BLACK, SPI_T6963C_WHITE and SPI_T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_dot(x0, y0, SPI_T6963C_WHITE)

SPI_T6963C_Set_Font_Adv

Prototype	sub procedure SPI_T6963C_Set_Font_Adv(dim activeFont as ^far const byte, dim font_color as word, dim font_orientation as byte)
Description	Sets font that will be used with SPI_T6963C_Write_Char_Adv and SPI_T6963C_Write_Text_Adv routines.
Parameters	`activeFont:` font to be set. Needs to be formatted as an array of char. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_Set_Font_Adv(@myfont, 1, 0)
Notes	None.

SPI_T6963C_Set_Ext_Font_Adv

Prototype	sub procedure SPI_T6963C_Set_Ext_Font_Adv(dim activeFont as longword, dim font_color as word, dim font_orientation as word)
Description	Sets font that will be used with SPI_T6963C_Write_Char_Adv and SPI_T6963C_Write_Text_Adv routines. Font is located in an external resource.
Parameters	`activeFont:` font to be set. This parameter represents the address in the exteral resource from where the font data begins. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_Set_Ext_Font_Adv(173296, 0, 0)
Notes	None.

SPI_T6963C_write_char

Prototype	sub procedure SPI_T6963C_write_char(dim c as byte, dim x as byte, dim y as byte, dim mode as byte)
Returns	Nothing.
Description	Writes a char in the current text panel of Glcd at coordinates (x, y). Parameters : `c:` char to be written `x:` char position on x-axis `y:` char position on y-axis `mode:` mode parameter. Valid values: `SPI_T6963C_ROM_MODE_OR`, `SPI_T6963C_ROM_MODE_XOR`, `SPI_T6963C_ROM_MODE_AND` and `SPI_T6963C_ROM_MODE_TEXT` Mode parameter explanation: `SPI_T6963C_ROM_MODE_OR` Mode: In the OR-Mode, text and graphics can be displayed and the data is logically “OR-ed”. This is the most common way of combining text and graphics for example labels on buttons. `SPI_T6963C_ROM_MODE_XOR` Mode: In this mode, the text and graphics data are combined via the logical “exclusive OR”. This can be useful to display text in negative mode, i.e. white text on black background. `SPI_T6963C_ROM_MODE_AND` Mode: The text and graphic data shown on display are combined via the logical “AND function”. `SPI_T6963C_ROM_MODE_TEXT` Mode: This option is only available when displaying just a text. The Text Attribute values are stored in the graphic area of display memory. For more details see the T6963C datasheet.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_write_char("A",22,23,SPI_T6963C_ROM_MODE_AND)

SPI_T6963C_write_char_adv

Prototype	sub procedure SPI_T6963C_write_char_adv(dim ch, x, y as word)
Description	Writes a char in the current text panel of Glcd at coordinates (x, y).
Parameters	`c:` char to be written `x:` char position on x-axis `y:` char position on y-axis
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_Write_Char_Adv("A",22,23)
Notes	None.

SPI_T6963C_write_text

Prototype	sub procedure SPI_T6963C_write_text(dim byref str as string, dim x as byte, dim y as byte, dim mode as byte)
Returns	Nothing.
Description	Writes text in the current text panel of Glcd at coordinates (x, y). Parameters : `str:` text to be written `x:` text position on x-axis `y:` text position on y-axis `mode:` mode parameter. Valid values: `SPI_T6963C_ROM_MODE_OR`, `SPI_T6963C_ROM_MODE_XOR`, `SPI_T6963C_ROM_MODE_AND` and `SPI_T6963C_ROM_MODE_TEXT` Mode parameter explanation: `SPI_T6963C_ROM_MODE_OR` Mode: In the OR-Mode, text and graphics can be displayed and the data is logically “OR-ed”. This is the most common way of combining text and graphics for example labels on buttons. `SPI_T6963C_ROM_MODE_XOR` Mode: In this mode, the text and graphics data are combined via the logical “exclusive OR”. This can be useful to display text in negative mode, i.e. white text on black background. `SPI_T6963C_ROM_MODE_AND` Mode: The text and graphic data shown on display are combined via the logical “AND function”. `SPI_T6963C_ROM_MODE_TEXT` Mode: This option is only available when displaying just a text. The Text Attribute values are stored in the graphic area of display memory. For more details see the T6963C datasheet.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_write_text("GLCD LIBRARY DEMO, WELCOME !", 0, 0, SPI_T6963C_ROM_MODE_XOR)

SPI_T6963C_Write_Text_Adv

Prototype	sub procedure SPI_T6963C_Write_Text_Adv(dim byref text as string, dim x, y as word)
Description	Writes text in the current text panel of Glcd at coordinates (x, y).
Parameters	`str:` text to be written `x:` text position on x-axis `y:` text position on y-axis
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_Write_Text_Adv("Glcd LIBRARY DEMO, WELCOME !", 0, 0);
Notes	None.

SPI_T6963C_Write_Const_Text_Adv

Prototype	sub procedure SPI_T6963C_Write_Const_Text_Adv(dim text as ^far const byte, dim x, y as word)
Description	Writes text located in the program memory on the glcd at coordinates (x, y).
Parameters	`str:` text to be written `x:` text position on x-axis `y:` text position on y-axis
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	const ctext = "mikroElektronika" ... SPI_T6963C_Write_Const_Text_Adv(@ctext, 0, 0);
Notes	None.

SPI_T6963C_line

Prototype	sub procedure SPI_T6963C_line(dim x0 as integer, dim y0 as integer, dim x1 as integer, dim y1 as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a line from (x0, y0) to (x1, y1). Parameters : `x0:` x coordinate of the line start `y0:` y coordinate of the line end `x1:` x coordinate of the line start `y1:` y coordinate of the line end `pcolor:` color parameter. Valid values: SPI_T6963C_BLACK, SPI_T6963C_WHITE and SPI_T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_line(0, 0, 239, 127, SPI_T6963C_WHITE)

SPI_T6963C_rectangle

Prototype	sub procedure SPI_T6963C_rectangle(dim x0 as integer, dim y0 as integer, dim x1 as integer, dim y1 as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a rectangle on Glcd. Parameters : `x0:` x coordinate of the upper left rectangle corner `y0:` y coordinate of the upper left rectangle corner `x1:` x coordinate of the lower right rectangle corner `y1:` y coordinate of the lower right rectangle corner `pcolor:` color parameter. Valid values: SPI_T6963C_BLACK, SPI_T6963C_WHITE and SPI_T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_rectangle(20, 20, 219, 107, SPI_T6963C_WHITE)

SPI_T6963C_rectangle_round_edges

Prototype	sub procedure SPI_T6963C_rectangle_round_edges(dim x0 as integer, dim y0 as integer, dim x1 as integer, dim y1 as integer, dim radius as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a rounded edge rectangle on Glcd. Parameters : `x0:` x coordinate of the upper left rectangle corner `y0:` y coordinate of the upper left rectangle corner `x1:` x coordinate of the lower right rectangle corner `y1:` y coordinate of the lower right rectangle corner `round_radius:` radius of the rounded edge. `pcolor:` color parameter. Valid values: SPI_T6963C_BLACK, SPI_T6963C_WHITE and SPI_T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_rectangle_round_edges(20, 20, 219, 107, 12, SPI_T6963C_WHITE)

SPI_T6963C_rectangle_round_edges_fill

Prototype	sub procedure SPI_T6963C_rectangle_round_edges_fill(dim x0 as integer, dim y0 as integer, dim x1 as integer, dim y1 as integer, dim radius as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a filled rounded edge rectangle on Glcd. Parameters : `x0:` x coordinate of the upper left rectangle corner `y0:` y coordinate of the upper left rectangle corner `x1:` x coordinate of the lower right rectangle corner `y1:` y coordinate of the lower right rectangle corner `round_radius:` radius of the rounded edge `pcolor:` color parameter. Valid values: SPI_T6963C_BLACK, SPI_T6963C_WHITE and SPI_T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_rectangle_round_edges_fill(20, 20, 219, 107, 12, SPI_T6963C_WHITE)

SPI_T6963C_box

Prototype	sub procedure SPI_T6963C_box(dim x0 as integer, dim y0 as integer, dim x1 as integer, dim y1 as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a box on the Glcd Parameters : `x0:` x coordinate of the upper left box corner `y0:` y coordinate of the upper left box corner `x1:` x coordinate of the lower right box corner `y1:` y coordinate of the lower right box corner `pcolor:` color parameter. Valid values: SPI_T6963C_BLACK, SPI_T6963C_WHITE and SPI_T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_box(0, 119, 239, 127, SPI_T6963C_WHITE)

SPI_T6963C_circle

Prototype	sub procedure SPI_T6963C_circle(dim x as integer, dim y as integer, dim r as longint, dim pcolor as byte)
Returns	Nothing.
Description	Draws a circle on the Glcd. Parameters : `x:` x coordinate of the circle center `y:` y coordinate of the circle center `r:` radius size `pcolor:` color parameter. Valid values: SPI_T6963C_BLACK, SPI_T6963C_WHITE and SPI_T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_circle(120, 64, 110, SPI_T6963C_WHITE)

SPI_T6963C_circle_fill

Prototype	sub procedure SPI_T6963C_circle_fill(dim x as integer, dim y as integer, dim r as longint, dim pcolor as byte)
Returns	Nothing.
Description	Draws a filled circle on the Glcd. Parameters : `x:` x coordinate of the circle center `y:` y coordinate of the circle center `r:` radius size `pcolor:` color parameter. Valid values: SPI_T6963C_BLACK, SPI_T6963C_WHITE and SPI_T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_circle_fill(120, 64, 110, SPI_T6963C_WHITE)

SPI_T6963C_image

Prototype	sub procedure SPI_T6963C_image(const pic as ^byte)
Returns	Nothing.
Description	Displays bitmap on Glcd. Parameters : `image:` image to be displayed. Bitmap array is located in code memory. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd. Note : Image dimension must match the display dimension.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_image(@my_image)

SPI_T6963C_Ext_Image

Prototype	sub procedure SPI_T6963C_Ext_Image(dim image as longword)
Description	Displays a bitmap from an external resource.
Parameters	`pic:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_Ext_image(153608)
Notes	Image dimension must match the display dimension. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd.

SPI_T6963C_PartialImage

Prototype	sub procedure SPI_T6963C_PartialImage(dim x_left, y_top, width, height, picture_width, picture_height as word, const image as ^byte)
Returns	Nothing.
Description	Displays a partial area of the image on a desired location. Parameters : `x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. Bitmap array is located in code memory. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd. Note : Image dimension must match the display dimension.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' Draws a 10x15 part of the image starting from the upper left corner on the coordinate (10,12). Original image size is 16x32. SPI_T6963C_PartialImage(10, 12, 10, 15, 16, 32, @image)

SPI_T6963C_Ext_PartialImage

Prototype	sub procedure SPI_T6963C_Ext_PartialImage(dim x_left, y_top, width, height, picture_width, picture_height as word, dim image as longword)
Description	Displays a partial area of the image on a desired location.
Parameters	`x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_Ext_PartialImage(10, 12, 10, 15, 16, 32, 0)
Notes	Image dimension must match the display dimension. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd.

SPI_T6963C_sprite

Prototype	sub procedure SPI_T6963C_sprite(dim px, py as byte, const pic as ^byte, dim sx, sy as byte)
Returns	Nothing.
Description	Fills graphic rectangle area (px, py) to (px+sx, py+sy) with custom size picture. Parameters : `px:` x coordinate of the upper left picture corner. Valid values: multiples of the font width `py:` y coordinate of the upper left picture corner `pic:` picture to be displayed `sx:` picture width. Valid values: multiples of the font width `sy:` picture height Note : If `px` and `sx` parameters are not multiples of the font width they will be scaled to the nearest lower number that is a multiple of the font width.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_sprite(76, 4, einstein, 88, 119) ' draw a sprite

SPI_T6963C_set_cursor

Prototype	sub procedure SPI_T6963C_set_cursor(dim x, y as byte)
Returns	Nothing.
Description	Sets cursor to row x and column y. Parameters : `x:` cursor position row number `y:` cursor position column number
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_set_cursor(cposx, cposy)

SPI_T6963C_clearBit

Prototype	sub procedure SPI_T6963C_clearBit(dim b as byte)
Returns	Nothing.
Description	Clears control port bit(s). Parameters : `b:` bit mask. The function will clear bit `x` on control port if bit `x` in bit mask is set to 1.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' clear bits 0 and 1 on control port SPI_T6963C_clearBit(0x03)

SPI_T6963C_setBit

Prototype	sub procedure SPI_T6963C_setBit(dim b as byte)
Returns	Nothing.
Description	Sets control port bit(s). Parameters : `b:` bit mask. The function will set bit `x` on control port if bit `x` in bit mask is set to 1.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' set bits 0 and 1 on control port SPI_T6963C_setBit(0x03)

SPI_T6963C_negBit

Prototype	sub procedure SPI_T6963C_negBit(dim b as byte)
Returns	Nothing.
Description	Negates control port bit(s). Parameters : `b:` bit mask. The function will negate bit `x` on control port if bit `x` in bit mask is set to 1.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' negate bits 0 and 1 on control port SPI_T6963C_negBit(0x03)

SPI_T6963C_DisplayGrPanel

Prototype	sub procedure SPI_T6963C_DisplayGrPanel(dim n as byte)
Returns	Nothing.
Description	Display selected graphic panel. Parameters : `n:` graphic panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' display graphic panel 1 SPI_T6963C_DisplayGrPanel(1)

SPI_T6963C_DisplayTxtPanel

Prototype	sub procedure SPI_T6963C_DisplayTxtPanel(dim n as byte)
Returns	Nothing.
Description	Display selected text panel. Parameters : `n:` text panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' display text panel 1 SPI_T6963C_DisplayTxtPanel(1)

SPI_T6963C_SetGrPanel

Prototype	sub procedure SPI_T6963C_SetGrPanel(dim n as byte)
Returns	Nothing.
Description	Compute start address for selected graphic panel and set appropriate internal pointers. All subsequent graphic operations will be preformed at this graphic panel. Parameters : `n:` graphic panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' set graphic panel 1 as current graphic panel. SPI_T6963C_SetGrPanel(1)

SPI_T6963C_SetTxtPanel

Prototype	sub procedure SPI_T6963C_SetTxtPanel(dim n as byte)
Returns	Nothing.
Description	Compute start address for selected text panel and set appropriate internal pointers. All subsequent text operations will be preformed at this text panel. Parameters : `n:` text panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' set text panel 1 as current text panel. SPI_T6963C_SetTxtPanel(1)

SPI_T6963C_PanelFill

Prototype	sub procedure SPI_T6963C_PanelFill(dim v as byte)
Returns	Nothing.
Description	Fill current panel in full (graphic+text) with appropriate value (0 to clear). Parameters : `v:` value to fill panel with.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	clear current panel SPI_T6963C_PanelFill(0)

SPI_T6963C_GrFill

Prototype	sub procedure SPI_T6963C_GrFill(dim v as byte)
Returns	Nothing.
Description	Fill current graphic panel with appropriate value (0 to clear). Parameters : `v:` value to fill graphic panel with.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' clear current graphic panel SPI_T6963C_GrFill(0)

SPI_T6963C_TxtFill

Prototype	sub procedure SPI_T6963C_TxtFill(dim v as byte)
Returns	Nothing.
Description	Fill current text panel with appropriate value (0 to clear). Parameters : `v:` this value increased by 32 will be used to fill text panel.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' clear current text panel SPI_T6963C_TxtFill(0)

SPI_T6963C_Cursor_Height

Prototype	sub procedure SPI_T6963C_Cursor_Height(dim n as byte)
Returns	Nothing.
Description	Set cursor size. Parameters : `n:` cursor height. Valid values: `0`..`7`.
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	SPI_T6963C_Cursor_Height(7)

SPI_T6963C_Graphics

Prototype	sub procedure SPI_T6963C_Graphics(dim n as byte)
Returns	Nothing.
Description	Enable/disable graphic displaying. Parameters : `n:` graphic enable/disable parameter. Valid values: `0` (disable graphic dispaying) and `1` (enable graphic displaying).
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' enable graphic displaying SPI_T6963C_Graphics(1)

SPI_T6963C_Text

Prototype	sub procedure SPI_T6963C_Text(dim n as byte)
Returns	Nothing.
Description	Enable/disable text displaying. Parameters : `n:` text enable/disable parameter. Valid values: `0` (disable text dispaying) and `1` (enable text displaying).
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' enable text displaying SPI_T6963C_Text(1)

SPI_T6963C_Cursor

Prototype	sub procedure SPI_T6963C_Cursor(dim n as byte)
Returns	Nothing.
Description	Set cursor on/off. Parameters : `n:` on/off parameter. Valid values: `0` (set cursor off) and `1` (set cursor on).
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' set cursor on SPI_T6963C_Cursor(1)

SPI_T6963C_Cursor_Blink

Prototype	sub procedure SPI_T6963C_Cursor_Blink(dim n as byte)
Returns	Nothing.
Description	Enable/disable cursor blinking. Parameters : `n:` cursor blinking enable/disable parameter. Valid values: `0` (disable cursor blinking) and `1` (enable cursor blinking).
Requires	Toshiba Glcd module needs to be initialized. See SPI_T6963C_Config routine.
Example	' enable cursor blinking SPI_T6963C_Cursor_Blink(1)

Library Example

The following drawing demo tests advanced routines of the SPI T6963C Glcd library. Hardware configurations in this example are made for the T6963C 240x128 display, EasyPIC6 board and 16F887.

Copy Code To Clipboard

program SPI_T6963C_240x128

include __Lib_SPIT6963C_Const

dim
' Port Expander module connections
   SPExpanderRST as sbit at RC0_bit
   SPExpanderCS  as sbit at RC1_bit
   SPExpanderRST_Direction as sbit at TRISC0_bit
   SPExpanderCS_Direction  as sbit at TRISC1_bit
' End Port Expander module connections

dim   panel as byte         ' current panel
          i as word         ' general purpose register
       curs as byte         ' cursor visibility
      cposx,
      cposy as word         ' cursor x-y position
      txt, txt1 as string[29]


main:
  txt1 = " EINSTEIN WOULD HAVE LIKED mE"
  txt  = " GLCD LIBRARY DEMO, WELCOME !"

  ANSEL  = 0                   ' Configure AN pins as digital I/O
  ANSELH = 0
  C1ON_bit = 0                 ' Disable comparators
  C2ON_bit = 0

  TRISB0_bit = 1               ' Set RB0 as input
  TRISB1_bit = 1               ' Set RB1 as input
  TRISB2_bit = 1               ' Set RB2 as input
  TRISB3_bit = 1               ' Set RB3 as input
  TRISB4_bit = 1               ' Set RB4 as input

  ' Initialize SPI module
  SPI1_Init()

  ' ' If Port Expander Library uses SPI2 module
  ' Pass pointer to SPI Read sub function of used SPI module

  ' Initialize SPI module used with PortExpander
  ' SPI2_Init_Advanced(_SPI_MASTER, _SPI_FCY_DIV32, _SPI_CLK_HI_TRAILING)

'  *
'  * init display for 240 pixel width and 128 pixel height
'  * 8 bits character width
'  * data bus on MCP23S17 portB
'  * control bus on MCP23S17 PORTA
'  * bit 2 is !WR
'  * bit 1 is !RD
'  * bit 0 is !CD
'  * bit 4 is RST
'  * chip enable, reverse on, 8x8 font internaly set in library
'  *


  ' Initialize SPI Toshiba 240x128
  SPI_T6963C_Config(240, 128, 8, 0, 2, 1, 0, 4)
  'Delay_ms(1000)

'   *
'   * Enable both graphics and text display at the same time
'   *

  SPI_T6963C_graphics(1)

  SPI_T6963C_text(1)

  panel = 0
  i = 0
  curs = 0
  cposx = 0
  cposy = 0

'   *
'   * Text messages
'   *
  SPI_T6963C_write_text(txt, 0, 0, SPI_T6963C_ROM_MODE_XOR)
  SPI_T6963C_write_text(txt1, 0, 15, SPI_T6963C_ROM_MODE_XOR)

'   *
'   * Cursor
'   *
  SPI_T6963C_cursor_height(8)        ' 8 pixel height
  SPI_T6963C_set_cursor(0, 0)        ' move cursor to top left
  SPI_T6963C_cursor(0)               ' cursor off

'   *
'   * Draw rectangles
'   *
  SPI_T6963C_rectangle(0, 0, 239, 127, SPI_T6963C_WHITE)
  SPI_T6963C_rectangle(20, 20, 219, 107, SPI_T6963C_WHITE)
  SPI_T6963C_rectangle(40, 40, 199, 87, SPI_T6963C_WHITE)
  SPI_T6963C_rectangle(60, 60, 179, 67, SPI_T6963C_WHITE)


'   *
'   * Draw a cross
'   *
  SPI_T6963C_line(0, 0, 239, 127, SPI_T6963C_WHITE)
  SPI_T6963C_line(0, 127, 239, 0, SPI_T6963C_WHITE)

'   *
'   * Draw solid boxes
'   *
  SPI_T6963C_box(0, 0, 239, 8, SPI_T6963C_WHITE)
  SPI_T6963C_box(0, 119, 239, 127, SPI_T6963C_WHITE)

'   *
'   * Draw circles
'   *
  SPI_T6963C_circle(120, 64, 10,  SPI_T6963C_WHITE)
  SPI_T6963C_circle(120, 64, 30,  SPI_T6963C_WHITE)
  SPI_T6963C_circle(120, 64, 50,  SPI_T6963C_WHITE)
  SPI_T6963C_circle(120, 64, 70,  SPI_T6963C_WHITE)
  SPI_T6963C_circle(120, 64, 90,  SPI_T6963C_WHITE)
  SPI_T6963C_circle(120, 64, 110, SPI_T6963C_WHITE)
  SPI_T6963C_circle(120, 64, 130, SPI_T6963C_WHITE)

  SPI_T6963C_sprite(76, 4, @einstein, 88, 119)   ' Draw a sprite

  SPI_T6963C_setGrPanel(1)                       ' Select other graphic panel

  SPI_T6963C_sprite(0, 0,  @mikroE_240x64_bmp, 240, 64)     ' 240x128 can"t be stored in most of PIC16 MCUs
  SPI_T6963C_sprite(0, 64, @mikroE_240x64_bmp, 240, 64)     '   it is replaced with smaller picture 240x64
                                                 '   Smaller picture is drawn two times

  while TRUE                                     ' Endless loop

    '*
    '* If PORTB_0 is pressed, toggle the display between graphic panel 0 and graphic 1
    '*

    if (RB0_bit <> 0) then
        Inc(panel)
        panel = panel and 1
        SPI_T6963C_displayGrPanel(panel)
        Delay_ms(300)

    '*
    '* If PORTB_1 is pressed, display only graphic panel
    '*

    else
      if (RB1_bit <> 0) then
          SPI_T6963C_graphics(1)
          SPI_T6963C_text(0)
          Delay_ms(300)

    '*
    '* If PORTB_2 is pressed, display only text panel
    '*
      else
        if (RB2_bit <> 0) then
            SPI_T6963C_graphics(0)
            SPI_T6963C_text(1)
            Delay_ms(300)

    '*
    '* If PORTB_3 is pressed, display text and graphic panels
    '*
        else
          if (RB3_bit <> 0) then
              SPI_T6963C_graphics(1)
              SPI_T6963C_text(1)
              Delay_ms(300)

    '*
    '*  If PORTB_4 is pressed, change cursor
    '*
          else
            if(RB4_bit <> 0) then
              Inc(curs)
              if (curs = 3) then
                curs = 0
              end if
              select case curs
                case 0
                     ' no cursor
                     SPI_T6963C_cursor(0)
                case 1
                       ' blinking cursor
                       SPI_T6963C_cursor(1)
                       SPI_T6963C_cursor_blink(1)
                case 2
                       ' non blinking cursor
                       SPI_T6963C_cursor(1)
                       SPI_T6963C_cursor_blink(0)
              end select  'case
                Delay_ms(300)

            end if
          end if
        end if
      end if
    end if

      '*
      '* Move cursor, even if not visible
      '*
      Inc(cposx)
      if (cposx = SPI_T6963C_txtCols) then
        cposx = 0
        Inc(cposy)
        if (cposy = SPI_T6963C_grHeight / SPI_T6963C_CHARACTER_HEIGHT) then
          cposy = 0
        end if
      end if
      SPI_T6963C_set_cursor(cposx, cposy)

      Delay_ms(100)
  wend
end.

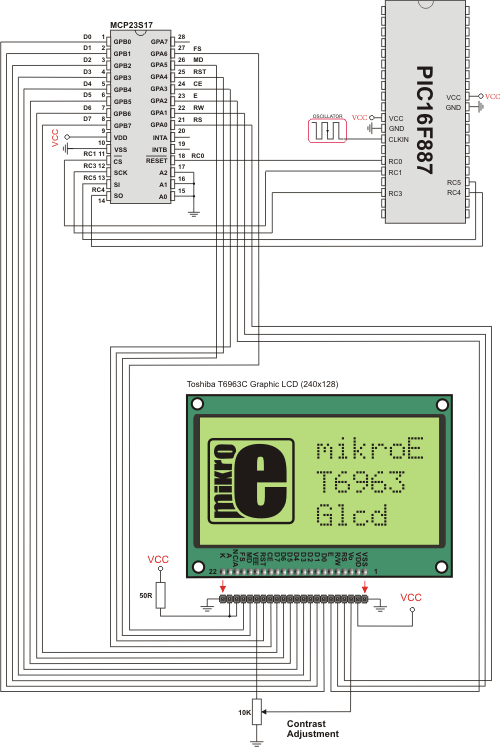

HW Connection

SPI T6963C Glcd HW connection

Want more examples and libraries?
Find them on
