SPI Lcd8 (8-bit interface) Library
The mikroBasic PRO for PIC provides a library for communication with Lcd (with HD44780 compliant controllers) in 8-bit mode via SPI interface.
For creating a custom set of Lcd characters use Lcd Custom Character Tool.
Important :
- The library uses the SPI module for communication. The user must initialize the SPI module before using the SPI Lcd8 Library.
- This Library is designed to work with the mikroElektronika's Serial Lcd/Glcd Adapter Board pinout. See schematic at the bottom of this page for details.
Library Dependency Tree
External dependencies of SPI Lcd Library
The implementation of SPI Lcd Library routines is based on Port Expander Library routines.
External dependencies are the same as Port Expander Library external dependencies.
Library Routines
SPI_Lcd8_Config
| Prototype |
sub procedure SPI_Lcd8_Config(dim DeviceAddress as byte) |
|---|---|
| Returns |
Nothing. |
| Description |
Initializes the Lcd module via SPI interface. Parameters :
|
| Requires |
Global variables :
|
| Example |
' port expander pinout definition
dim SPExpanderRST as sbit at RC0_bit
SPExpanderCS as sbit at RC1_bit
SPExpanderRST_Direction as sbit at TRISC0_bit
SPExpanderCS_Direction as sbit at TRISC1_bit
' end of port expander pinout definition
...
SPI1_Init() ' Initialize SPI interface
SPI_Lcd8_Config(0) ' Intialize Lcd in 8bit mode via spi
|
SPI_Lcd8_Out
| Prototype |
sub procedure SPI_Lcd8_Out(dim row as byte, dim column as byte, dim byref text as string) |
|---|---|
| Returns |
Nothing. |
| Description |
Prints text on Lcd starting from specified position. Both string variables and literals can be passed as a text. Parameters :
|
| Requires |
Lcd needs to be initialized for SPI communication, see SPI_Lcd8_Config routine. |
| Example |
' Write text "Hello!" on Lcd starting from row 1, column 3: SPI_Lcd8_Out(1, 3, "Hello!") |
SPI_Lcd8_Out_CP
| Prototype |
sub procedure SPI_Lcd8_Out_CP(dim text as string) |
|---|---|
| Returns |
Nothing. |
| Description |
Prints text on Lcd at current cursor position. Both string variables and literals can be passed as a text. Parameters :
|
| Requires |
Lcd needs to be initialized for SPI communication, see SPI_Lcd8_Config routine. |
| Example |
' Write text "Here!" at current cursor position:
SPI_Lcd8_Out_CP("Here!")
|
SPI_Lcd8_Chr
| Prototype |
sub procedure SPI_Lcd8_Chr(dim Row as byte, dim Column as byte, dim Out_Char as byte) |
|---|---|
| Returns |
Nothing. |
| Description |
Prints character on Lcd at specified position. Both variables and literals can be passed as character. Parameters :
|
| Requires |
Lcd needs to be initialized for SPI communication, see SPI_Lcd8_Config routine. |
| Example |
' Write character "i" at row 2, column 3: SPI_Lcd8_Chr(2, 3, "i") |
SPI_Lcd8_Chr_CP
| Prototype |
sub procedure SPI_Lcd8_Chr_CP(dim Out_Char as byte) |
|---|---|
| Returns |
Nothing. |
| Description |
Prints character on Lcd at current cursor position. Both variables and literals can be passed as character. Parameters :
|
| Requires |
Lcd needs to be initialized for SPI communication, see SPI_Lcd8_Config routine. |
| Example |
Print “e” at current cursor position:
' Write character "e" at current cursor position:
SPI_Lcd8_Chr_Cp("e")
|
SPI_Lcd8_Cmd
| Prototype |
sub procedure SPI_Lcd8_Cmd(dim out_char as byte) |
|---|---|
| Returns |
Nothing. |
| Description |
Sends command to Lcd. Parameters :
Note :
Predefined constants can be passed to the function, see Available SPI Lcd8 Commands.
|
| Requires |
Lcd needs to be initialized for SPI communication, see SPI_Lcd8_Config routine. |
| Example |
' Clear Lcd display: SPI_Lcd8_Cmd(_LCD_CLEAR) |
Available SPI Lcd8 Commands
| SPI Lcd8 Command | Purpose |
|---|---|
| _LCD_FIRST_ROW | Move cursor to the 1st row |
| _LCD_SECOND_ROW | Move cursor to the 2nd row |
| _LCD_THIRD_ROW | Move cursor to the 3rd row |
| _LCD_FOURTH_ROW | Move cursor to the 4th row |
| _LCD_CLEAR | Clear display |
| _LCD_RETURN_HOME | Return cursor to home position, returns a shifted display to its original position. Display data RAM is unaffected. |
| _LCD_CURSOR_OFF | Turn off cursor |
| _LCD_UNDERLINE_ON | Underline cursor on |
| _LCD_BLINK_CURSOR_ON | Blink cursor on |
| _LCD_MOVE_CURSOR_LEFT | Move cursor left without changing display data RAM |
| _LCD_MOVE_CURSOR_RIGHT | Move cursor right without changing display data RAM |
| _LCD_TURN_ON | Turn Lcd display on |
| _LCD_TURN_OFF | Turn Lcd display off |
| _LCD_SHIFT_LEFT | Shift display left without changing display data RAM |
| _LCD_SHIFT_RIGHT | Shift display right without changing display data RAM |
Library Example
This example demonstrates how to communicate Lcd in 8-bit mode via the SPI module, using serial to parallel convertor MCP23S17.
program Spi_Lcd8_Test
dim text as char[17]
' Port Expander module connections
dim SPExpanderRST as sbit at RC0_bit
SPExpanderCS as sbit at RC1_bit
SPExpanderRST_Direction as sbit at TRISC0_bit
SPExpanderCS_Direction as sbit at TRISC1_bit
' End Port Expander module connections
main:
ANSEL = 0 ' Configure AN pins as digital
ANSELH = 0
C1ON_bit = 0 ' Disable comparators
C2ON_bit = 0
text = "mikroElektronika"
' If Port Expander Library uses SPI1 module
SPI1_Init() ' Initialize SPI module used with PortExpander
' ' If Port Expander Library uses SPI2 module
' SPI2_Init() ' Initialize SPI module used with PortExpander
SPI_Lcd8_Config(0) ' Initialize Lcd over SPI interface
SPI_Lcd8_Cmd(_LCD_CLEAR) ' Clear display
SPI_Lcd8_Cmd(_LCD_CURSOR_OFF) ' Turn cursor off
SPI_Lcd8_Out(1,6, "mikroE") ' Print text to Lcd, 1st row, 6th column
SPI_Lcd8_Chr_CP("!") ' Append '!'
SPI_Lcd8_Out(2,1, text) ' Print text to Lcd, 2nd row, 1st column
' SPI_Lcd8_Out(3,1,"mikroE") ' For Lcd with more than two rows
' SPI_Lcd8_Out(4,15,"mikroE") ' For Lcd with more than two rows
end.

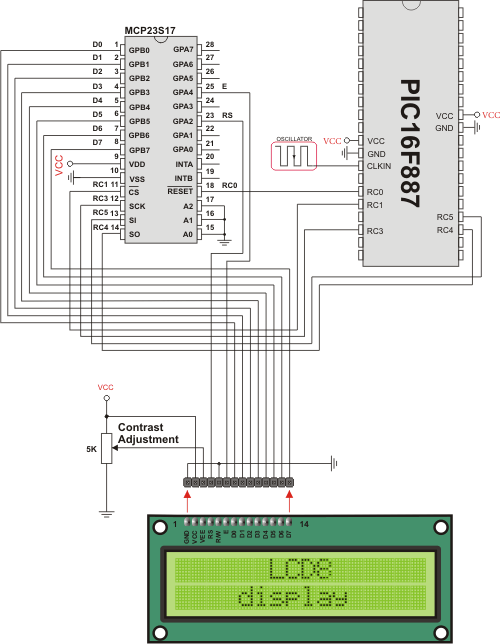

HW Connection
SPI Lcd8 HW connection
