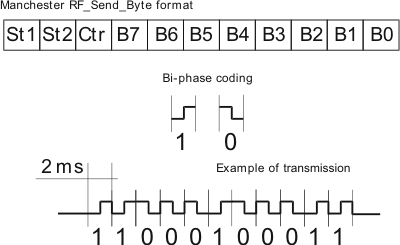

The mikroBasic PRO for 8051 provides a library for handling Manchester coded signals. The Manchester code is a code in which data and clock signals are combined to form a single self-synchronizing data stream; each encoded bit contains a transition at the midpoint of a bit period, the direction of transition determines whether the bit is 0 or 1; the second half is the true bit value and the first half is the complement of the true bit value (as shown in the figure below).

Notes:

• The Manchester receive routines are blocking calls (Man_Receive_Init and Man_Synchro). This means that MCU will wait until the task has been performed (e.g. byte is received, synchronization achieved, etc).
• Manchester code library implements time-based activities, so interrupts need to be disabled when using it.

External dependencies of Manchester Code Library

Library Routines

• Man_Receive_Init
• Man_Receive
• Man_Send_Init
• Man_Send
• Man_Synchro
• Man_Break

The following routines are for the internal use by compiler only:

• Manchester_0
• Manchester_1
• Manchester_Out

Man_Receive_Init

' Initialize Receiver
dim MANRXPIN as sbit at P0_0_bit
...
Man_Receive_Init()

Man_Receive

dim data, error as byte
...
data = 0
error = 0
data = Man_Receive(&error)

if (error <> 0) then
' error handling
end if

Man_Send_Init

' Initialize Transmitter:
dim MANTXPIN as sbit at P0_1-bit
...
Man_Send_Init()

Man_Send

dim msg as byte
...
Man_Send(msg)

Man_Synchro

dim man__half_bit_len as word
...
man__half_bit_len = Man_Synchro()

Man_Break

dim data1, error, counter as byte

sub procedure Timer1InterruptHandler() org IVT_ADDR_ET1
  counter = 0
  if (counter >= 20) then
  begin
    Man_Break()
    counter = 0                // reset counter
  else
    Inc(counter)               // increment counter
  end if
end

main:
  TR1_bit = 0                  // Stop Timer1
  ET1_bit = 1                  // Enable Timer1 interrupt
  TH1 = 0x00                   // Set Timer1 high byte
  TL1 = 0x00                   // Set Timer1 low byte
  TR1_bit = 1                  // Run Timer1

  EA_bit = 0                   // Interrupt disable

  ...

  Man_Receive_Init()

  ...

  // try Man_Receive with blocking prevention mechanism
  EA_bit = 1                   // Interrupt enable
  data1 = Man_Receive(@error)
  EA_bit = 0                   // Interrupt disable

  ...

end

Library Example

The following code is code for the Manchester receiver, it shows how to use the Manchester Library for receiving data:

program Manchester_Receiver

' LCD module connections
dim LCD_RS as sbit at P2_0_bit
dim LCD_EN as sbit at P2_1_bit

dim LCD_D4 as sbit at P2_2_bit
dim LCD_D5 as sbit at P2_3_bit
dim LCD_D6 as sbit at P2_4_bit
dim LCD_D7 as sbit at P2_5_bit
' End LCD module connections

' Manchester module connections
dim MANRXPIN as sbit at P0_0_bit
dim MANTXPIN as sbit at P0_1_bit
' End Manchester module connections

dim error_flag, counter, ErrorCount, temp as byte

main:
  counter = 0
  ErrorCount = 0

  Lcd_Init()                             ' Initialize Lcd
  Lcd_Cmd(_LCD_CLEAR)                    ' Clear Lcd display

  Man_Receive_Init()                     ' Initialize Receiver

  while TRUE                             ' Endless loop
    Lcd_Cmd(_LCD_FIRST_ROW)              ' Move cursor to the 1st row
    while TRUE                           ' Wait for the "start" byte
      temp = Man_Receive(error_flag)     ' Attempt byte receive
      if (temp = 0x0B) then              ' "Start" byte, see Transmitter example
        break                            ' We got the starting sequence
      end if
      if (error_flag <> 0) then          ' Exit so we do not loop forever
        break
      end if
    wend

    do
      temp = Man_Receive(error_flag)     ' Attempt byte receive
      if (error_flag <> 0) then          ' If error occured
        Lcd_Chr_CP("?")                  ' Write question mark on Lcd
        Inc(ErrorCount)                  ' Update error counter
        if (ErrorCount > 20) then        ' In case of multiple errors
          temp = Man_Synchro()           ' Try to synchronize again
          'Man_Receive_Init()            ' Alternative, try to Initialize Receiver again
          ErrorCount = 0                 ' Reset error counter
        end if
      else                               ' No error occured
        if (temp <> 0x0E) then           ' If "End" byte was received(see Transmitter example)
                                         ' do not write anymore received byte on Lcd
          Lcd_Chr_CP(temp)               ' else write character on Lcd
          Inc(counter)                   ' Counts how many chars have been written on Lcd
          if counter = 25 then           ' If there were more then 25 characters
                                         ' synchronization is off
            Lcd_Cmd(_LCD_CLEAR)          ' Clear the Lcd of garbled communication
            temp = Man_Synchro()         ' Try to synchronize again
          end if

          else
            counter = 0                  ' reset counter
        end if
        Delay_ms(25)
      end if
    loop until ( temp = 0x0E )
  wend                                   ' If "End" byte was received exit do loop
end.

The following code is code for the Manchester transmitter, it shows how to use the Manchester Library for transmitting data:

program Manchester_Transmitter

' Manchester module connections
dim MANRXPIN as sbit at P0_0_bit
dim MANTXPIN as sbit at P0_1_bit
' End Manchester module connections

dim index, character as byte
    s1 as char[16]

main:
  s1 = "mikroElektronika"
  Man_Send_Init()               ' Initialize transmitter
  while TRUE                    ' Endless loop
    Man_Send(0x0B)              ' Send "start" byte
    Delay_ms(100)               ' Wait for a while
    character = s1[0]           ' Take first char from string
    index = 0                   ' Initialize index variable
    while (character <> 0)      ' String ends with zero
      Man_Send(character)       ' Send character
      Delay_ms(90)              ' Wait for a while
      Inc(index)                ' Increment index variable
      character = s1[index]     ' Take next char from string
    wend
    Man_Send(0x0E)              ' Send "end" byte
    Delay_ms(1000)
  wend
end.

Connection Example

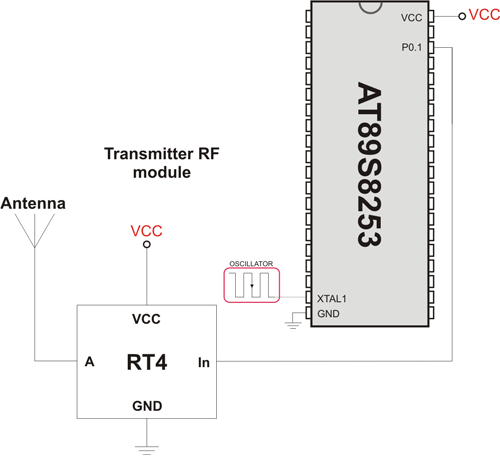

Simple Transmitter connection

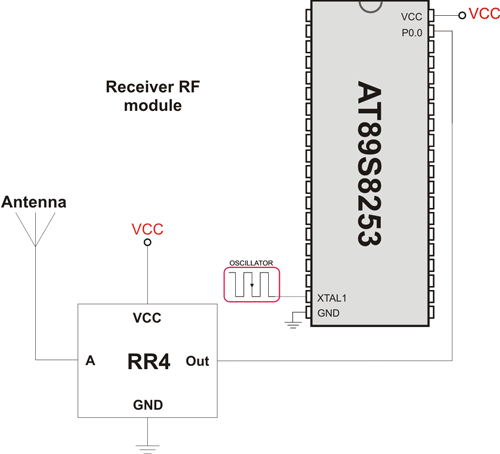

Simple Receiver connection
