SPI Graphic Lcd Library

The mikroC PRO for AVR provides a library for operating Graphic Lcd 128x64 (with commonly used Samsung KS108/KS107 controller) via SPI interface.

For creating a custom set of Glcd images use Glcd Bitmap Editor Tool.

Important :

The library uses the SPI module for communication. User must initialize SPI module before using the SPI Graphic Lcd Library.
For MCUs with multiple SPI modules it is possible to initialize all of them and then switch by using the SPI_Set_Active() routine. See the SPI Library functions.
This Library is designed to work with the mikroElektronika's Serial Lcd/Glcd Adapter Board pinout, see schematic at the bottom of this page for details.

Library Dependency Tree

External dependencies of SPI Lcd Library

The implementation of SPI Lcd Library routines is based on Port Expander Library routines.

External dependencies are the same as Port Expander Library external dependencies.

Library Routines

Basic routines:

SPI_Glcd_Init
SPI_Glcd_Set_Side
SPI_Glcd_Set_Page
SPI_Glcd_Set_X
SPI_Glcd_Read_Data
SPI_Glcd_Write_Data
SPI_Glcd_Set_Ext_Buffer

Advanced routines:

SPI_Glcd_Fill
SPI_Glcd_Dot
SPI_Glcd_Line
SPI_Glcd_V_Line
SPI_Glcd_H_Line
SPI_Glcd_Rectangle
SPI_Glcd_Rectangle_Round_Edges
SPI_Glcd_Rectangle_Round_Edges_Fill
SPI_Glcd_Box
SPI_Glcd_Circle
SPI_Glcd_Circle_Fill
SPI_Glcd_Set_Font
SPI_Glcd_Set_Font_Adv
SPI_Glcd_Set_Ext_Font_Adv
SPI_Glcd_Write_Char
SPI_Glcd_Write_Char_Adv
SPI_Glcd_Write_Text
SPI_Glcd_Write_Text_Adv
SPI_Glcd_Write_Const_Text_Adv
SPI_Glcd_Image
SPI_Glcd_Ext_Image
SPI_Glcd_PartialImage
SPI_Glcd_Ext_PartialImage

SPI_Glcd_Init

Prototype	void SPI_Glcd_Init(char DeviceAddress);
Returns	Nothing.
Description	Initializes the Glcd module via SPI interface. Parameters : `DeviceAddress:` SPI expander hardware address, see schematic at the bottom of this page
Requires	Global variables : `SPExpanderCS`: Chip Select line `SPExpanderRST`: Reset line `SPExpanderCS_Direction`: Direction of the Chip Select pin `SPExpanderRST_Direction`: Direction of the Reset pin must be defined before using this function. SPI module needs to be initialized. See SPI1_Init and SPI1_Init_Advanced routines.
Example	// Port Expander module connections sbit SPExpanderRST at PORTB0_bit; sbit SPExpanderCS at PORTB1_bit; sbit SPExpanderRST_Direction at DDB0_bit; sbit SPExpanderCS_Direction at DDB1_bit; // End Port Expander module connections ... // If Port Expander Library uses SPI1 module : SPI1_Init_Advanced(_SPI_MASTER, _SPI_FCY_DIV2, _SPI_CLK_HI_TRAILING); // Initialize SPI module used with PortExpander SPI_Glcd_Init(0);

SPI_Glcd_Set_Side

Prototype	void SPI_Glcd_Set_Side(char x_pos);
Returns	Nothing.
Description	Selects Glcd side. Refer to the Glcd datasheet for detail explanation. Parameters : `x_pos:` position on x-axis. Valid values: 0..127 The parameter `x_pos` specifies the Glcd side: values from 0 to 63 specify the left side, values from 64 to 127 specify the right side. Note : For side, x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	The following two lines are equivalent, and both of them select the left side of Glcd: SPI_Glcd_Set_Side(0); SPI_Glcd_Set_Side(10);

SPI_Glcd_Set_Page

Prototype	void SPI_Glcd_Set_Page(char page);
Returns	Nothing.
Description	Selects page of Glcd. Parameters : `page:` page number. Valid values: 0..7 Note : For side, x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	SPI_Glcd_Set_Page(5);

SPI_Glcd_Set_X

Prototype	void SPI_Glcd_Set_X(char x_pos);
Returns	Nothing.
Description	Sets x-axis position to `x_pos` dots from the left border of Glcd within the selected side. Parameters : `x_pos:` position on x-axis. Valid values: 0..63 Note : For side, x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	SPI_Glcd_Set_X(25);

SPI_Glcd_Read_Data

Prototype	char SPI_Glcd_Read_Data();
Returns	One byte from Glcd memory.
Description	Reads data from the current location of Glcd memory and moves to the next location.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines. Glcd side, x-axis position and page should be set first. See the functions SPI_Glcd_Set_Side, SPI_Glcd_Set_X, and SPI_Glcd_Set_Page.
Example	char data; ... data = SPI_Glcd_Read_Data();

SPI_Glcd_Write_Data

Prototype	void SPI_Glcd_Write_Data(char Ddata);
Returns	Nothing.
Description	Writes one byte to the current location in Glcd memory and moves to the next location. Parameters : `Ddata:` data to be written
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines. Glcd side, x-axis position and page should be set first. See the functions SPI_Glcd_Set_Side, SPI_Glcd_Set_X, and SPI_Glcd_Set_Page.
Example	char data_; ... SPI_Glcd_Write_Data(data_);

SPI_Glcd_Set_Ext_Buffer

Prototype	void SPI_Glcd_Set_Ext_Buffer(char* (getExtDataPtr)(unsigned long* offset, unsigned long count, unsigned long* num));
Returns	Nothing.
Description	Function sets pointer to the user function which manipulates the external resource. Parameters : `offset` - offset from the beginning of the resource from where the data is requested. `count` - requested number of bytes. `num` - variable for holding the returned number ob byte (less or equal to the number of acqired bytes).
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine. Glcd side, x-axis position and page should be set first. See the functions SPI_Glcd_Set_Side, SPI_Glcd_Set_X, and SPI_Glcd_Set_Page.
Example	char* ReadExternalBuffer(unsigned long offset, unsigned int count, unsigned int num){ unsigned long* start_sector; unsigned int pos; start_sector = Mmc_Get_File_Write_Sector() + offset/512; pos = (unsigned long)offset%512; if(start_sector == currentSector+1){ Mmc_Multi_Read_Buffer(EXT_BUFFER); currentSector = start_sector; }else if(start_sector != currentSector){ Mmc_Multi_Read_Stop(); Mmc_Multi_Read_Start(start_sector); Mmc_Multi_Read_Buffer(EXT_BUFFER); currentSector = start_sector; } if(count>512-pos){ num = 512-pos; } else* num = count; return* EXT_BUFFER+pos; } SPI_Glcd_Set_Ext_Buffer(ReadExternalBuffer);

SPI_Glcd_Fill

Prototype	void SPI_Glcd_Fill(char pattern);
Returns	Nothing.
Description	Fills Glcd memory with byte `pattern`. Parameters : `pattern:` byte to fill Glcd memory with To clear the Glcd screen, use `SPI_Glcd_Fill(0)`. To fill the screen completely, use `SPI_Glcd_Fill(0xFF)`.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Clear screen SPI_Glcd_Fill(0);

SPI_Glcd_Dot

Prototype	void SPI_Glcd_Dot(char x_pos, char y_pos, char color);
Returns	Nothing.
Description	Draws a dot on Glcd at coordinates (`x_pos`, `y_pos`). Parameters : `x_pos:` x position. Valid values: 0..127 `y_pos:` y position. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the dot state: 0 clears dot, 1 puts a dot, and 2 inverts dot state. Note : For side, x and y axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Invert the dot in the upper left corner SPI_Glcd_Dot(0, 0, 2);

SPI_Glcd_Line

Prototype	void SPI_Glcd_Line(int x_start, int y_start, int x_end, int y_end, char color);
Returns	Nothing.
Description	Draws a line on Glcd. Parameters : `x_start:` x coordinate of the line start. Valid values: 0..127 `y_start:` y coordinate of the line start. Valid values: 0..63 `x_end:` x coordinate of the line end. Valid values: 0..127 `y_end:` y coordinate of the line end. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 Parameter `color` determines the line color: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Draw a line between dots (0,0) and (20,30) SPI_Glcd_Line(0, 0, 20, 30, 1);

SPI_Glcd_V_Line

Prototype	void SPI_Glcd_V_Line(char y_start, char y_end, char x_pos, char color);
Returns	Nothing.
Description	Draws a vertical line on Glcd. Parameters : `y_start:` y coordinate of the line start. Valid values: 0..63 `y_end:` y coordinate of the line end. Valid values: 0..63 `x_pos:` x coordinate of vertical line. Valid values: 0..127 `color:` color parameter. Valid values: 0..2 Parameter `color` determines the line color: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Draw a vertical line between dots (10,5) and (10,25) SPI_Glcd_V_Line(5, 25, 10, 1);

SPI_Glcd_H_Line

Prototype	void SPI_Glcd_H_Line(char x_start, char x_end, char y_pos, char color);
Returns	Nothing.
Description	Draws a horizontal line on Glcd. Parameters : `x_start:` x coordinate of the line start. Valid values: 0..127 `x_end:` x coordinate of the line end. Valid values: 0..127 `y_pos:` y coordinate of horizontal line. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the line color: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Draw a horizontal line between dots (10,20) and (50,20) SPI_Glcd_H_Line(10, 50, 20, 1);

SPI_Glcd_Rectangle

Prototype	void SPI_Glcd_Rectangle(char x_upper_left, char y_upper_left, char x_bottom_right, char y_bottom_right, char color);
Returns	Nothing.
Description	Draws a rectangle on Glcd. Parameters : `x_upper_left:` x coordinate of the upper left rectangle corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left rectangle corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right rectangle corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right rectangle corner. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the rectangle border: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Draw a rectangle between dots (5,5) and (40,40) SPI_Glcd_Rectangle(5, 5, 40, 40, 1);

SPI_Glcd_Rectangle_Round_Edges

Prototype	void SPI_Glcd_Rectangle_Round_Edges(unsigned short x_upper_left, unsigned short y_upper_left, unsigned short x_bottom_right, unsigned short y_bottom_right, unsigned short round_radius, unsigned short color);
Returns	Nothing.
Description	Draws a rounded edge rectangle on Glcd. Parameters : `x_upper_left:` x coordinate of the upper left rectangle corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left rectangle corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right rectangle corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right rectangle corner. Valid values: 0..63 `round_radius:` radius of the rounded edge. `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the rectangle border: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see SPI_Glcd_Init routine.
Example	// Draw a rounded edge rectangle between dots (5,5) and (40,40) with the radius of 12 SPI_Glcd_Rectangle_Round_Edges(5, 5, 40, 40, 12, 1);

SPI_Glcd_Rectangle_Round_Edges_Fill

Prototype	void SPI_Glcd_Rectangle_Round_Edges_Fill(unsigned short x_upper_left, unsigned short y_upper_left, unsigned short x_bottom_right, unsigned short y_bottom_right, unsigned short round_radius, unsigned short color);
Returns	Nothing.
Description	Draws a filled rounded edge rectangle on Glcd with color. Parameters : `x_upper_left:` x coordinate of the upper left rectangle corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left rectangle corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right rectangle corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right rectangle corner. Valid values: 0..63 `round_radius:` radius of the rounded edge `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the rectangle border: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see SPI_Glcd_Init routine.
Example	// Draws a filled rounded edge rectangle between dots (5,5) and (40,40) with the radius of 12 SPI_Glcd_Rectangle_Round_Edges_Fill(5, 5, 40, 40, 12, 1);

SPI_Glcd_Box

Prototype	void SPI_Glcd_Box(char x_upper_left, char y_upper_left, char x_bottom_right, char y_bottom_right, char color);
Returns	Nothing.
Description	Draws a box on Glcd. Parameters : `x_upper_left:` x coordinate of the upper left box corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left box corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right box corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right box corner. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the box fill: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Draw a box between dots (5,15) and (20,40) SPI_Glcd_Box(5, 15, 20, 40, 1);

SPI_Glcd_Circle

Prototype	void SPI_Glcd_Circle(int x_center, int y_center, int radius, char color);
Returns	Nothing.
Description	Draws a circle on Glcd. Parameters : `x_center:` x coordinate of the circle center. Valid values: 0..127 `y_center:` y coordinate of the circle center. Valid values: 0..63 `radius:` radius size `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the circle line: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine.
Example	// Draw a circle with center in (50,50) and radius=10 SPI_Glcd_Circle(50, 50, 10, 1);

SPI_Glcd_Circle_FIll

Prototype	void SPI_Glcd_Circle_Fill(int x_center, int y_center, int radius, char color);
Returns	Nothing.
Description	Draws a filled circle on Glcd. Parameters : `x_center:` x coordinate of the circle center. Valid values: 0..127 `y_center:` y coordinate of the circle center. Valid values: 0..63 `radius:` radius size `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the circle : 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine.
Example	// Draw a circle with center in (50,50) and radius=10 SPI_Glcd_Circle_Fill(50, 50, 10, 1);

SPI_Glcd_Set_Font

Prototype	void SPI_Glcd_Set_Font(const code char activeFont, char* aFontWidth, char aFontHeight, unsigned int aFontOffs);
Returns	Nothing.
Description	Sets font that will be used with SPI_Glcd_Write_Char and SPI_Glcd_Write_Text routines. Parameters : `activeFont:` font to be set. Needs to be formatted as an array of char `aFontWidth:` width of the font characters in dots. `aFontHeight:` height of the font characters in dots. `aFontOffs:` number that represents difference between the mikroC PRO for AVR character set and regular ASCII set (eg. if 'A' is 65 in ASCII character, and 'A' is 45 in the mikroC PRO for AVR character set, aFontOffs is 20). Demo fonts supplied with the library have an offset of 32, which means that they start with space. The user can use fonts given in the file `__Lib_GLCDFonts` file located in the Uses folder or create his own fonts. List of supported fonts: `Font_Glcd_System3x5` `Font_Glcd_System5x7` `Font_Glcd_5x7` `Font_Glcd_Character8x7` For the sake of the backward compatibility, these fonts are supported also: `System3x5` (equivalent to `Font_Glcd_System3x5`) `FontSystem5x7_v2` (equivalent to `Font_Glcd_System5x7`) `font5x7` (equivalent to `Font_Glcd_5x7`) `Character8x7` (equivalent to `Font_Glcd_Character8x7`)
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Use the custom 5x7 font "myfont" which starts with space (32): SPI_Glcd_Set_Font(myfont, 5, 7, 32);

SPI_Glcd_Set_Font_Adv

Prototype	void SPI_Glcd_Set_Font_Adv(const char activeFont, unsigned char* font_color, char font_orientation);
Description	Sets font that will be used with SPI_Glcd_Write_Char_Adv and SPI_Glcd_Write_Text_Adv routines. Font is located in an external resource.
Parameters	`activeFont:` font to be set. Needs to be formatted as an array of char. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine.
Example	Glcd_Set_Font_Adv(&myfont, 0, 0);
Notes	None.

SPI_Glcd_Set_Ext_Font_Adv

Prototype	void SPI_Glcd_Set_Ext_Font_Adv(unsigned long activeFont, unsigned short aFontWidth, unsigned short aFontHeight, unsigned int aFontOffs);
Description	Sets font that will be used with SPI_Glcd_Write_Char_Adv and SPI_Glcd_Write_Text_Adv routines. Font is located in an external resource.
Parameters	`activeFont:` font to be set. This parameter represents the address in the exteral resource from where the font data begins. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine.
Example	SPI_Glcd_Set_Ext_Font_Adv(173296, 5, 7, 32);
Notes	None.

SPI_Glcd_Write_Char

Prototype	void SPI_Glcd_Write_Char(char chr1, char x_pos, char page_num, char color);
Returns	Nothing.
Description	Prints character on Glcd. Parameters : `chr1:` character to be written `x_pos:` character starting position on x-axis. Valid values: 0..(127-FontWidth) `page_num:` the number of the page on which character will be written. Valid values: 0..7 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the character: 0 white, 1 black, and 2 inverts each dot. Note : For side, x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines. Use the SPI_Glcd_Set_Font to specify the font for display; if no font is specified, then the default `Font_Glcd_System5x7` font supplied with the library will be used.
Example	// Write character 'C' on the position 10 inside the page 2: SPI_Glcd_Write_Char('C', 10, 2, 1);

SPI_Glcd_Write_Char_Adv

Prototype	void SPI_Glcd_Write_Char_Adv(unsigned int c, unsigned int x, unsigned int y);
Returns	Nothing.
Description	Writes a char on the glcd at coordinates (x, y). `c:` char to be written. `x:` char position on x-axis. `y:` char position on y-axis.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine.
Example	SPI_Glcd_Write_Char_Adv('A',22,23);

SPI_Glcd_Write_Text

Prototype	void SPI_Glcd_Write_Text(char text[], char x_pos, char page_num, char color);
Returns	Nothing.
Description	Prints text on Glcd. Parameters : `text:` text to be written `x_pos:` text starting position on x-axis. `page_num:` the number of the page on which text will be written. Valid values: 0..7 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the text: 0 white, 1 black, and 2 inverts each dot. Note : For side, x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines. Use the SPI_Glcd_Set_Font to specify the font for display; if no font is specified, then the default `Font_Glcd_System5x7` font supplied with the library will be used.
Example	// Write text "Hello world!" on the position 10 inside the page 2: SPI_Glcd_Write_Text("Hello world!", 10, 2, 1);

SPI_Glcd_Write_Text_Adv

Prototype	void SPI_Glcd_Write_Text_Adv(unsigned char text, unsigned int* x, unsigned int y);
Returns	Nothing.
Description	Writes text on the glcd at coordinates (x, y). Parameters : `text:` text to be written. `x:` text position on x-axis. `y:` text position on y-axis.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine.
Example	SPI_Glcd_Write_Text_Adv("GLCD LIBRARY DEMO, WELCOME !", 0, 0);

SPI_Glcd_Write_Const_Text_Adv

Prototype	void SPI_Glcd_Write_Const_Text_Adv(const far char text, unsigned int* x, unsigned int y);
Returns	Nothing.
Description	Writes text located in the program memory on the glcd at coordinates (x, y). Parameters : `text:` text to be written. `x:` text position on x-axis. `y:` text position on y-axis.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine.
Example	const char ctext[] = "mikroElektronika"; ... SPI_Glcd_Write_Const_Text_Adv(ctext, 0, 0);

SPI_Glcd_Image

Prototype	void SPI_Glcd_Image(const code char *image);
Returns	Nothing.
Description	Displays bitmap on Glcd. Parameters : `image:` image to be displayed. Bitmap array is located in code memory. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Draw image my_image on Glcd SPI_Glcd_Image(my_image);

SPI_Glcd_Ext_Image

Prototype	void SPI_Glcd_Ext_Image(unsigned long image);
Description	Displays a bitmap from an external resource on a desired address.
Parameters	`image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine.
Example	SPI_Glcd_Ext_Image(153608);
Notes	Use the mikroC PRO for AVR integrated Glcd Bitmap Editor, Tools > Glcd Bitmap Editor, to convert image to a constant array suitable for displaying on Glcd.

SPI_Glcd_PartialImage

Prototype	void SPI_Glcd_PartialImage(unsigned int x_left, unsigned int y_top, unsigned int width, unsigned int height, unsigned int picture_width, unsigned int picture_height, code const unsigned short * image);
Returns	Nothing.
Description	Displays a partial area of the image on a desired location. Parameters : `x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. Bitmap array is located in code memory. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routines.
Example	// Draws a 10x15 part of the image starting from the upper left corner on the coordinate (10,12). Original image size is 16x32. SPI_Glcd_PartialImage(10, 12, 10, 15, 16, 32, image);

SPI_Glcd_Ext_PartialImage

Prototype	void SPI_Glcd_Ext_PartialImage(unsigned int x_left, unsigned int y_top, unsigned int width, unsigned int height, unsigned int picture_width, unsigned int picture_height, unsigned long image);
Description	Displays a partial area of the image, located on an external resource, on a desired location of the screen.
Parameters	`x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Glcd needs to be initialized for SPI communication, see SPI_Glcd_Init routine.
Example	SPI_Glcd_Ext_PartialImage(10, 12, 10, 15, 16, 32, 0);
Notes	Use the mikroC PRO for AVR integrated Glcd Bitmap Editor, Tools > Glcd Bitmap Editor, to convert image to a constant array suitable for displaying on Glcd.

Library Example

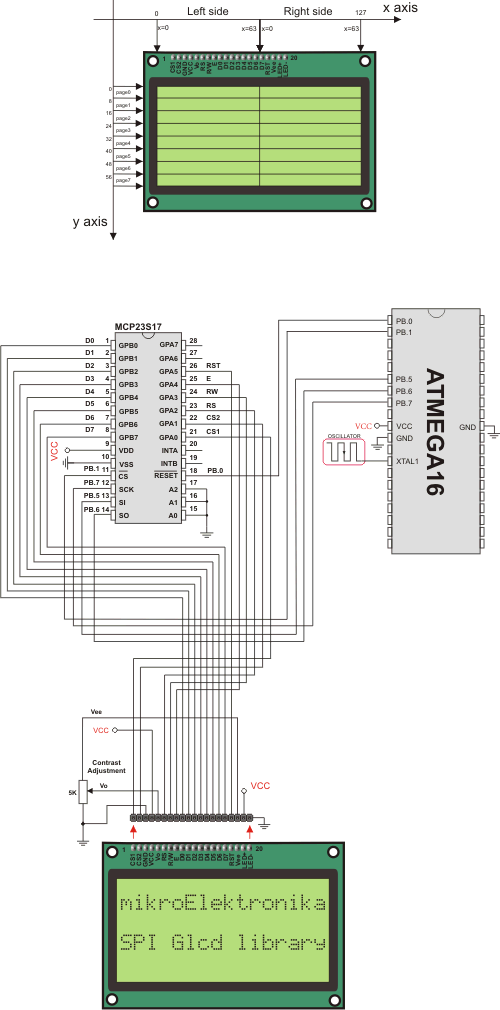

The example demonstrates how to communicate to KS0108 Glcd via the SPI module, using serial to parallel convertor MCP23S17.

Copy Code To Clipboard

const code char truck_bmp[1024];

// Port Expander module connections
sbit  SPExpanderRST at PORTB0_bit;
sbit  SPExpanderCS  at PORTB1_bit;
sbit  SPExpanderRST_Direction at DDB0_bit;
sbit  SPExpanderCS_Direction  at DDB1_bit;
// End Port Expander module connections

void Delay2s(){                         // 2 seconds delay function
  Delay_ms(2000);
}

void main() {
  char counter;
  char *someText;
  // If Port Expander Library uses SPI1 module
  SPI1_Init_Advanced(_SPI_MASTER, _SPI_FCY_DIV2, _SPI_CLK_HI_TRAILING);  // Initialize SPI module used with PortExpander

  // // If Port Expander Library uses SPI2 module
  //  SPI2_Init_Advanced(_SPI_MASTER, _SPI_FCY_DIV2, _SPI_CLK_HI_TRAILING);  // Initialize SPI module used with PortExpander

  SPI_Glcd_Init(0);                              // Initialize Glcd via SPI
  SPI_Glcd_Fill(0x00);                           // Clear Glcd

  while(1) {
    SPI_Glcd_Image(truck_bmp);                   // Draw image
    Delay2s(); Delay2s();
    SPI_Glcd_fill(0x00);                                  // Clear GLCD
    SPI_Glcd_PartialImage(0,0,68,30,128,64,truck_bmp);    // Partial image
    Delay_ms(500);
    SPI_Glcd_PartialImage(24,16,68,30,128,64,truck_bmp);
    Delay_ms(500);
    SPI_Glcd_PartialImage(56,34,68,30,128,64,truck_bmp);
    Delay2s(); Delay2s();
    SPI_Glcd_Fill(0x00);                             // Clear GLCD

    SPI_Glcd_Box(62,40,124,56,1);                    // Draw box
    SPI_Glcd_Rectangle(5,5,84,35,1);                 // Draw rectangle
    Delay_ms(1000);
    SPI_Glcd_Rectangle_Round_Edges(2,2,87,38,7,1);
    Delay_ms(1000);
    SPI_Glcd_Rectangle_Round_Edges_Fill(8,8,81,32,12,1);
    Delay_ms(1000);
    SPI_Glcd_Line(0, 0, 127, 63, 1);                 // Draw line
    Delay2s();

    for(counter = 5; counter < 60; counter+=5 ) {  // Draw horizontal and vertical lines
      Delay_ms(250);
      SPI_Glcd_V_Line(2, 54, counter, 1);
      SPI_Glcd_H_Line(2, 120, counter, 1);
      }
    Delay2s();

    SPI_Glcd_Fill(0x00);                         // Clear Glcd
    SPI_Glcd_Set_Font(Character8x7, 8, 7, 32);   // Choose font, see __Lib_GLCDFonts.c in Uses folder
    SPI_Glcd_Write_Text("mikroE", 5, 7, 2);      // Write string

    for (counter = 1; counter <= 10; counter++)  // Draw circles
      SPI_Glcd_Circle(63,32, 3*counter, 1);
    Delay2s();

    SPI_Glcd_Circle_Fill(63,32, 30, 1);          // Draw circles
    Delay2S();

    SPI_Glcd_Box(12,20, 70,63, 2);               // Draw box
    Delay2s();

    SPI_Glcd_Fill(0xFF);                         // Fill Glcd

    SPI_Glcd_Set_Font(Character8x7, 8, 7, 32);   // Change font
    someText = "8x7 Font";
    SPI_Glcd_Write_Text(someText, 5, 0, 2);      // Write string
    Delay2s();

    SPI_Glcd_Set_Font(System3x5, 3, 5, 32);      // Change font
    someText = "3X5 CAPITALS ONLY";
    SPI_Glcd_Write_Text(someText, 60, 2, 2);     // Write string
    Delay2s();

    SPI_Glcd_Set_Font(font5x7, 5, 7, 32);        // Change font
    someText = "5x7 Font";
    SPI_Glcd_Write_Text(someText, 5, 4, 2);      // Write string
    Delay2s();

    SPI_Glcd_Set_Font(FontSystem5x7_v2, 5, 7, 32); // Change font
    someText = "5x7 Font (v2)";
    SPI_Glcd_Write_Text(someText, 5, 6, 2);        // Write string
    Delay2s();
    }
}

HW Connection

SPI Glcd HW connection

Want more examples and libraries?
Find them on
