Software Simulator
The Source-level Software Simulator is an integral component of the mikroBasic PRO for dsPIC30/33 and PIC24 environment. It is designed to simulate operations of the Microchip dsPIC30/33 and PIC24 MCUs and assist the users in debugging code written for these devices.

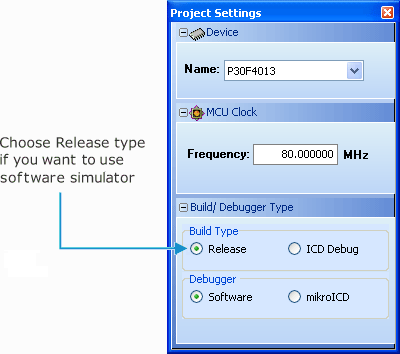

Upon completion of writing your program, choose Release build Type in the Project Settings window:
After you have successfuly compiled your project, you can run the Software Simulator by selecting Run › Start Debugger from the drop-down menu, or by clicking the Start Debugger Icon
from the Debugger Toolbar.
Starting the Software Simulator makes more options available: Step Into, Step Over, Step Out, Run to Cursor, etc. Line that is to be executed is color highlighted (blue by default).
Note :
The Software Simulator simulates the program flow and execution of instruction lines, but it cannot fully emulate dsPIC device behavior, i.e. it doesn’t update timers, interrupt flags, etc.
