RS-485 is a multipoint communication which allows multiple devices to be connected to a single bus. mikroBasic PRO for dsPIC30/33 and PIC24 provides a set of library routines for comfortable work with RS485 system using Master/Slave architecture. Master and Slave devices interchange packets of information. Each of these packets contains synchronization bytes, CRC byte, address byte and the data. Each Slave has unique address and receives only packets addressed to it. The Slave can never initiate communication.

It is the user’s responsibility to ensure that only one device transmits via 485 bus at a time.

The RS-485 routines require the UART module. Pins of UART need to be attached to RS-485 interface transceiver, such as LTC485 or similar (see schematic at the bottom of this page).

• START byte value = 150
• STOP byte value = 169
• Address 50 is the broadcast address for all Slaves (packets containing address 50 will be received by all Slaves except the Slaves with addresses 150 and 169).

  Important :

• The library uses the UART module for communication. The user must initialize the appropriate UART module before using the RS-485 Library.
• For MCUs with multiple UART modules it is possible to initialize them and then switch by using the UART_Set_Active routine.

Library Dependency Tree

External dependencies of RS-485 Library

Library Routines

• RS485Master_Init
• RS485Master_Receive
• RS485Master_Send
• RS485Slave_Init
• RS485Slave_Receive
• RS485Slave_Send

RS485Master_Init

' RS485 module pinout
dim RS485_rxtx_pin as sbit at RF2_bit
dim RS485_rxtx_pin_direction as sbit at TRISF2_bit
' End of RS485 module pinout
...
UART1_Init(9600)                    ' initialize UART1 module
RS485Master_Init()                  ' intialize MCU as a Master for RS-485 communication

RS485Master_Receive

dim msg as byte[8]
...
RS485Master_Receive(msg)

RS485Master_Send

dim msg as byte[8]
...
' send 3 bytes of data to slave with address 0x12
RS485Master_Send(msg, 3, 0x12)

RS485Slave_Init

' RS485 module pinout
dim RS485_rxtx_pin as sbit  at RF2_bit
dim RS485_rxtx_pin_direction as sbit  at TRISF2_bit
' End of RS485 module pinout
...
UART1_Init(9600)                    ' initialize UART1 module
RS485Slave_Init(160)                ' intialize MCU as a Slave for RS-485 communication with address 160

RS485Slave_Receive

dim msg as byte[8]
...
RS485Slave_Read(msg)

RS485Slave_Send

dim msg as byte[8]
...
' send 2 bytes of data to the Master
RS485Slave_Send(msg, 2)

Library Example

The example demonstrates working with the dsPIC as a Master node in RS-485 communication. Master sends message to Slave with address 160 and waits for a response. After the response is received, the first byte of received data is incremented and sent back to the Slave. The received data is displayed on PORTB while error on receiving (0xAA) and number of consecutive unsuccessful retries are displayed on PORTD. Hardware configurations in this example are made for the EasydsPIC4A board and dsPIC30F4013.

Copy Code To Clipboard

program RS485_Master_Example

dim dat as byte[10]                         ' buffer for receving/sending messages
    i, j as byte
    cnt as longint

dim rs485_rxtx_pin  as sbit at RF2_bit                ' set transcieve pin
    rs485_rxtx_pin_direction as sbit at TRISF2_bit    ' set transcieve pin direction

' Interrupt routine
sub procedure interrupt() org IVT_ADDR_U2RXINTERRUPT
  RS485Master_Receive(dat)
  U2RXIF_bit = 0                     ' ensure interrupt not pending
end sub

main:
  cnt = 0

  ADPCFG = 0xFFFF

  PORTB = 0
  PORTD = 0
  TRISB = 0
  TRISD = 0

  UART2_Init(9600)                   ' initialize UART2 module
  Delay_ms(100)

  RS485Master_Init()                 ' initialize MCU as Master

  dat[0] = 0xAA
  dat[1] = 0xF0
  dat[2] = 0x0F
  dat[4] = 0                         ' ensure that message received flag is 0
  dat[5] = 0                         ' ensure that error flag is 0
  dat[6] = 0

  RS485Master_Send(dat,1,160)

  URXISEL1_U2STA_bit = 0
  URXISEL1_U2STA_bit = 0
  NSTDIS_bit = 1                     ' no nesting of interrupts
  U2RXIF_bit = 0                     ' ensure interrupt not pending
  U2RXIE_bit = 1                     ' enable intterupt

  while (TRUE)
                                     ' upon completed valid message receiving
                                     '   data[4] is set to 255
    Inc(cnt)
    if (dat[5] <> 0) then            ' if an error detected, signal it
      PORTD = 0xAA                   '   by setting portd to 0xAA
    end if
    if (dat[4] <> 0) then            ' if message received successfully
      cnt = 0
      dat[4] = 0                     ' clear message received flag
      j = dat[3]
      for i = 1 to dat[3]            ' show data on PORTB
        PORTB = dat[i-1]
      next i
      dat[0] = dat[0]+1              ' send back to master
      Delay_ms(1)
      RS485Master_Send(dat,1,160)
    end if

    if (cnt > 100000) then           ' if in 100000 poll-cycles the answer
      Inc(PORTD)                     '   was not detected, signal
      cnt = 0                        '   failure of send-message
      RS485Master_Send(dat,1,160)
      if (PORTD > 10) then              ' if sending failed 10 times
        RS485Master_Send(dat,1,50)   '   send message on broadcast address
      end if
    end if
  wend
end.

Copy Code To Clipboard

program RS485_Slave_Example

dim dat as byte[20]                           ' buffer for receving/sending messages
    i, j as byte

dim rs485_rxtx_pin as sbit at RF2_bit                   ' set transcieve pin
    rs485_rxtx_pin_direction as sbit at TRISF2_bit      ' set transcieve pin direction

' Interrupt routine
sub procedure interrupt() org IVT_ADDR_U2RXINTERRUPT
  RS485Slave_Receive(dat)
  U2RXIF_bit = 0                  ' ensure interrupt not pending
end sub

main:
  ADPCFG = 0xFFFF

  PORTB = 0
  PORTD = 0
  TRISB = 0
  TRISD = 0

  UART2_Init(9600)                ' initialize UART2 module
  Delay_ms(100)

  RS485Slave_Init(160)            ' Intialize MCU as slave, address 160

  dat[0] = 0xAA
  dat[1] = 0xF0
  dat[2] = 0x0F
  dat[4] = 0                      ' ensure that message received flag is 0
  dat[5] = 0                      ' ensure that error flag is 0
  dat[6] = 0

  URXISEL1_U2STA_bit = 0
  URXISEL1_U2STA_bit = 0
  NSTDIS_bit = 1                  ' no nesting of interrupts
  U2RXIF_bit = 0                  ' ensure interrupt not pending
  U2RXIE_bit = 1                  ' enable intterupt

  while (TRUE)
    if (dat[5] <> 0) then         ' if an error detected, signal it by
      PORTD = 0xAA                '   setting portd to 0xAA
      dat[5] = 0
    end if
    if (dat[4] <> 0) then         ' upon completed valid message receive
      dat[4] = 0                  '   data[4] is set to 0xFF
      j = dat[3]

      for i = 1 to dat[3]         ' show data on PORTB
        PORTB = dat[i-1]
      next i

      dat[0] = dat[0]+1           ' increment received dat[0]
      Delay_ms(1)
      RS485Slave_Send(dat,1)      '   and send it back to master
    end if
  wend
end.

HW Connection

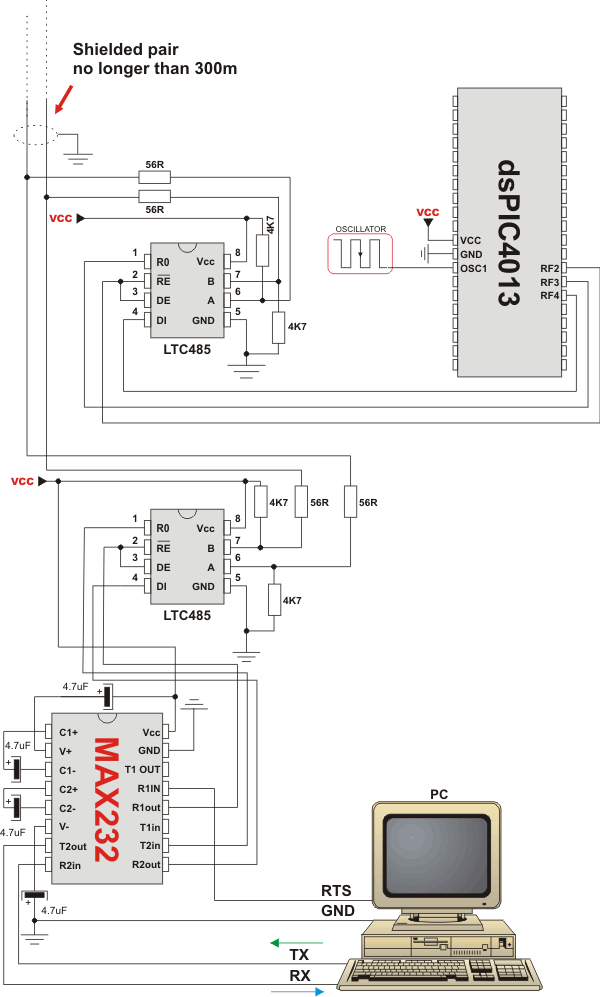

Example of interfacing PC to dsPIC MCU via RS485 bus with LTC485 as RS-485 transceiver

Message format and CRC calculations

Q: How is CRC checksum calculated on RS485 master side?

Copy Code To Clipboard

_START_BYTE = 0x96; ' 10010110
_STOP_BYTE  = 0xA9; ' 10101001


PACKAGE:
--------
_START_BYTE 0x96
ADDRESS
DATALEN
[DATA1]            ' if exists
[DATA2]            ' if exists
[DATA3]            ' if exists
CRC
_STOP_BYTE  0xA9


DATALEN bits
------------
bit7 = 1  MASTER SENDS
       0  SLAVE  SENDS
bit6 = 1  ADDRESS WAS XORed with 1, IT WAS EQUAL TO _START_BYTE or _STOP_BYTE
       0  ADDRESS UNCHANGED
bit5 = 0  FIXED
bit4 = 1  DATA3 (if exists) WAS XORed with 1, IT WAS EQUAL TO _START_BYTE or _STOP_BYTE
       0  DATA3 (if exists) UNCHANGED
bit3 = 1  DATA2 (if exists) WAS XORed with 1, IT WAS EQUAL TO _START_BYTE or _STOP_BYTE
       0  DATA2 (if exists) UNCHANGED
bit2 = 1  DATA1 (if exists) WAS XORed with 1, IT WAS EQUAL TO _START_BYTE or _STOP_BYTE
       0  DATA1 (if exists) UNCHANGED
bit1bit0 = 0 to 3 NUMBER OF DATA BYTES SEND


CRC generation :
----------------
crc_send = datalen  xor address
crc_send = crc_send xor data[0]    ' if exists
crc_send = crc_send xor data[1]    ' if exists
crc_send = crc_send xor data[2]    ' if exists
crc_send = crc_send not crc_send
if ((crc_send = START_BYTE) or (crc_send = STOP_BYTE)) then
   crc_send = crc_send + 1
end if
NOTE: DATALEN<4..0> can not take the START_BYTE<4..0> or STOP_BYTE<4..0> values.
