UART Library
  mikroBasic PRO for dsPIC30/33 and PIC24 Libraries > Hardware Libraries >


UART Library

The UART hardware module is available with a number of dsPIC30/33 and PIC24 MCUs. The mikroBasic PRO for dsPIC30/33 and PIC24 UART Library provides comfortable work with the Asynchronous (full duplex) mode.

  Important :

Library Routines

Generic Routines

UARTx_Init

Prototype

sub procedure UARTx_Init(dim baud_rate as longint)
Description

Configures and initializes the UART module.

The internal UART module module is set to:

  • continue operation in IDLE mode
  • default Tx and Rx pins
  • loopback mode disabled
  • 8-bit data, no parity
  • 1 STOP bit
  • transmitter enabled
  • generate interrupt on transmission end
  • interrupt on reception enabled
  • Address Detect mode disabled
Parameters
  • baud_rate: requested baud rate
Returns

Nothing.
Requires

Routine requires the UART module.
Example
' Initialize hardware UART1 module and establish communication at 2400 bps
UART1_Init(2400)
Notes

Refer to the device data sheet for baud rates allowed for specific Fosc.

For the dsPIC33 and PIC24 MCUs, the compiler will choose for which speed the calculation is to be performed (high or low). This does not mean that it is the best choice for desired baud rate.
If the baud rate error generated in this way is too big then UARTx_Init_Advanced routine, which allows speed select be used.

UART library routines require you to specify the module you want to use. To select the desired UART module, simply change the letter x in the routine prototype for a number from 1 to 4.

Switching between the UART modules in the UART library is done by the UART_Set_Active function (UART modules have to be previously initialized).

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UARTx_Init_Advanced

Prototype ' dsPIC30 prototype

sub procedure UARTx_Init_Advanced(dim baud_rate as longint, dim parity, stop_bits as word)

' dsPIC33 and PIC24 prototype

sub procedure UARTx_Init_Advanced(dim baud_rate as longint, dim parity, stop_bits as word, dim high_low_speed as word)
Description

Configures and initializes the UART module with user defined settings.
Parameters
  • baud_rate: requested baud rate
  • parity: parity and data selection parameter.
    Valid values :
    Data/Parity Mode
    Description Predefined library const
    8-bit data, no parity _UART_8BIT_NOPARITY
    8-bit data, even parity _UART_8BIT_EVENPARITY
    8-bit data, odd parity _UART_8BIT_ODDPARITY
    9-bit data, no parity _UART_9BIT_NOPARITY
  • stop_bits: stop bit selection parameter.
    Valid values :
    Stop bits
    Description Predefined library const
    One stop bit _UART_ONE_STOPBIT
    Two stop bit _UART_TWO_STOPBITS
  • high_low_speed: high/low speed selection parameter. Available only for dsPIC33 and PIC24 MCUs.
    Valid values :
    High/Low Speed
    Description Predefined library const
    Low Speed UART _UART_LOW_SPEED
    Hi Speed UART _UART_HI_SPEED
Returns

Nothing.
Requires

Routine requires the UART module.
Example
' dsPIC30 family example
' Initialize hardware UART1 module and establish communication at 2400 bps, 8-bit data, even parity and 2 STOP bits
UART1_Init_Advanced(2400, 2, 1)

' dsPIC33 and PIC24 family example
' Initialize hardware UART2 module and establish communication at 2400 bps, 8-bit data, even parity, 2 STOP bits and high speed baud rate calculations
UART2_Init_Advanced(2400, 2, 1, 1)
Notes

Refer to the device data sheet for baud rates allowed for specific Fosc.

UART library routines require you to specify the module you want to use. To select the desired UART module, simply change the letter x in the routine prototype for a number from 1 to 4.

Switching between the UART modules in the UART library is done by the UART_Set_Active function (UART modules have to be previously initialized).

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UARTx_Data_Ready

Prototype

sub function UARTx_Data_Ready() as word
Description

The function tests if data in receive buffer is ready for reading.
Parameters

None.
Returns
  • 1 if data is ready for reading
  • 0 if there is no data in the receive register
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example
dim receive as word
...
' read data if ready
if (UART1_Data_Ready() = 1) then
  receive = UART1_Read()
end if
Notes

UART library routines require you to specify the module you want to use. To select the desired UART module, simply change the letter x in the routine prototype for a number from 1 to 4.

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UARTx_Tx_Idle

Prototype

sub function UARTx_Tx_Idle() as word
Description

Use the function to test if the transmit shift register is empty or not.
Parameters

None.
Returns
  • 1 if the data has been transmitted
  • 0 otherwise
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example
' If the previous data has been shifted out, send next data:
if (UART1_Tx_Idle() = 1) then
  UART1_Write(_data)
end if
Notes

UART library routines require you to specify the module you want to use. To select the desired UART module, simply change the letter x in the routine prototype for a number from 1 to 4.

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UARTx_Read

Prototype

sub function UARTx_Read() as word
Description

The function receives a byte via UART. Use the UARTx_Data_Ready function to test if data is ready first.
Parameters

None.
Returns

Received byte.
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example
dim receive as word
...
' read data if ready
if (UART1_Data_Ready() = 1) then
  receive = UART1_Read()
end if
Notes

UART library routines require you to specify the module you want to use. To select the desired UART module, simply change the letter x in the routine prototype for a number from 1 to 4.

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UARTx_Read_Text

Prototype

sub procedure UARTx_Read_Text(dim byref output, delimiter as string; dim Attempts as byte)
Description

Reads characters received via UART until the delimiter sequence is detected. The read sequence is stored in the parameter output; delimiter sequence is stored in the parameter delimiter.

This is a blocking call: the delimiter sequence is expected, otherwise the procedure exits (if the delimiter is not found).
Parameters
  • Output: received text
  • Delimiter: sequence of characters that identifies the end of a received string
  • Attempts: defines number of received characters in which Delimiter sequence is expected. If Attempts is set to 255, this routine will continuously try to detect the Delimiter sequence.
Returns

Nothing.
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example

Read text until the sequence “OK” is received, and send back what’s been received:

UART1_Init(4800)                           ' initialize UART module
Delay_ms(100)

 while TRUE
   if (UART1_Data_Ready() = 1)             ' if data is received
     UART1_Read_Text(output, "OK", 10)  ' reads text until 'OK' is found
     UART1_Write_Text(output)              ' sends back text
   end if
 wend.
Notes

UART library routines require you to specify the module you want to use. To select the desired UART module, simply change the letter x in the routine prototype for a number from 1 to 4.

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UARTx_Write

Prototype

sub procedure UARTx_Write(dim data_ as word)
Description

The function transmits a byte via the UART module.
Parameters
  • data_: data to be sent
Returns

Nothing.
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example
dim data_ as byte
...
data_ = 0x1E
UART1_Write(data_)
Notes

UART library routines require you to specify the module you want to use. To select the desired UART module, simply change the letter x in the routine prototype for a number from 1 to 4.

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UARTx_Write_Text

Prototype

sub procedure UARTx_Write_Text(dim byref uart_text as string[20])
Description

Sends text via UART. Text should be zero terminated.
Parameters
  • UART_text: text to be sent
Returns

Nothing.
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example

Read text until the sequence “OK” is received, and send back what’s been received:

UART1_Init(4800)                           ' initialize UART module
Delay_ms(100)

 while TRUE
   if (UART1_Data_Ready() = 1)             ' if data is received
     UART1_Read_Text(output, 'OK', 10)  ' reads text until 'OK' is found
     UART1_Write_Text(output)              ' sends back text
   end if
 wend.
Notes

UART library routines require you to specify the module you want to use. To select the desired UART module, simply change the letter x in the routine prototype for a number from 1 to 4.

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UART_Set_Active

Prototype

sub procedure UART_Set_Active (dim read_ptr as ^TUART_Rd_Ptr, dim write_ptr as ^TUART_Wr_Ptr, dim ready_ptr as ^TUART_Rdy_Ptr, dim tx_idle_ptr as ^TUART_TX_Idle_Ptr)
Description

Sets active UART module which will be used by UARTx_Data_Ready, UARTx_Read and UARTx_Write routines.
Parameters

Parameters :
Returns

Nothing.
Requires

Routine is available only for MCUs with multiple UART modules.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example
UART1_Init(9600);                    ' initialize UART1 module
UART2_Init(9600);                    ' initialize UART2 module

RS485Master_Init();                  ' initialize MCU as Master

UART_Set_Active(@UART1_Read, @UART1_Write, @UART1_Data_Ready, @UART1_Tx_Idle); ' set UART1 active
RS485Master_Send(dat,1,160);        ' send message through UART1

UART_Set_Active(@UART2_Read, @UART2_Write, @UART2_Data_Ready, @UART2_Tx_Idle); ' set UART2 active
RS485Master_Send(dat,1,160);        ' send through UART2
Notes

None.

UART_Data_Ready

Prototype

sub function UART_Data_Ready() as word
Description

The function tests if data in receive buffer is ready for reading.

This is a generic routine which uses the active UART module previously activated by the UART_Set_Active routine.
Parameters

None.
Returns
  • 1 if data is ready for reading
  • 0 if there is no data in the receive register
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example
dim receive as word
...
' read data if ready
if (UART_Data_Ready() = 1) then
  receive = UART_Read()
end if
Notes

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UART_Tx_Idle

Prototype

sub function UART_Tx_Idle() as word
Description

Use the function to test if the transmit shift register is empty or not.

This is a generic routine which uses the active UART module previously activated by the UART_Set_Active routine.
Parameters

None.
Returns
  • 1 if the data has been transmitted
  • 0 otherwise
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example
' If the previous data has been shifted out, send next data:
if (UART_Tx_Idle() = 1) then
  UART_Write(_data)
end if
Notes

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UART_Read

Prototype

sub function UART_Read() as word
Description

The function receives a byte via UART. Use the UART_Data_Ready function to test if data is ready first.

This is a generic routine which uses the active UART module previously activated by the UART_Set_Active routine.
Parameters

None.
Returns

Received byte.
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example
dim receive as word
...
' read data if ready
if (UART_Data_Ready() = 1) then
  receive = UART_Read()
end if
Notes

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UART_Read_Text

Prototype

sub procedure UART_Read_Text(dim byref output, delimiter as string; dim Attempts as byte)
Description

Reads characters received via UART until the delimiter sequence is detected. The read sequence is stored in the parameter output; delimiter sequence is stored in the parameter delimiter.

This is a blocking call: the delimiter sequence is expected, otherwise the procedure exits (if the delimiter is not found).

This is a generic routine which uses the active UART module previously activated by the UART_Set_Active routine.
Parameters
  • Output: received text
  • Delimiter: sequence of characters that identifies the end of a received string
  • Attempts: defines number of received characters in which Delimiter sequence is expected. If Attempts is set to 255, this routine will continuously try to detect the Delimiter sequence.
Returns

Nothing.
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example

Read text until the sequence “OK” is received, and send back what’s been received:

UART1_Init(4800)                           ' initialize UART module
Delay_ms(100)

 while TRUE
   if (UART_Data_Ready() = 1)             ' if data is received
     UART_Read_Text(output, "OK", 10)  ' reads text until 'OK' is found
     UART_Write_Text(output)              ' sends back text
   end if
 wend.
Notes

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UART_Write

Prototype

sub procedure UART_Write(dim data_ as word)
Description

The function transmits a byte via the UART module.

This is a generic routine which uses the active UART module previously activated by the UART_Set_Active routine.
Parameters
  • data_: data to be sent
Returns

Nothing.
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example
dim data_ as byte
...
data_ = 0x1E
UART_Write(data_)
Notes

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

UART_Write_Text

Prototype

sub procedure UART_Write_Text(dim byref uart_text as string[20])
Description

Sends text via UART. Text should be zero terminated.

This is a generic routine which uses the active UART module previously activated by the UART_Set_Active routine.
Parameters
  • UART_text: text to be sent
Returns

Nothing.
Requires

Routine requires at least one UART module.

Used UART module must be initialized before using this routine. See UARTx_Init and UARTx_Init_Advanced routines.
Example

Read text until the sequence “OK” is received, and send back what’s been received:

UART1_Init(4800)                           ' initialize UART module
Delay_ms(100)

 while TRUE
   if (UART_Data_Ready() = 1)             ' if data is received
     UART_Read_Text(output, 'OK', 10)  ' reads text until 'OK' is found
     UART_Write_Text(output)              ' sends back text
   end if
 wend.
Notes

Number of UART modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

Library Example

This example demonstrates simple data exchange via UART. If MCU is connected to the PC, you can test the example from the mikroBasic PRO for dsPIC30/33 and PIC24 USART communication terminal, launch it from the drop-down menu Tools › USART Terminal or simply click the USART Terminal Icon USART Terminal Icon.

Copy Code To ClipboardCopy Code To Clipboard
program UART1
dim uart_rd as byte

main:
  ADPCFG = 0xFFFF                         ' Configure AN pins as digital

  UART1_Init(9600)                        ' Initialize UART module at 9600 bps
  Delay_ms(100)                           ' Wait for UART module to stabilize

'  U1MODE.ALTIO = 1    ' un-comment this line to have Rx and Tx pins on their alternate
                          ' locations. This is used to free the pins for other module, namely the SPI.

  UART1_Write_Text("Start")
  UART1_Write(10)
  UART1_Write(13)

  while TRUE                              ' Endless loop
    if (UART1_Data_Ready() <> 0) then     ' If data is received,
      uart_rd = UART1_Read()              '   read the received data,
      UART1_Write(uart_rd)                '   and send data via UART
    end if
  wend
end.

HW Connection

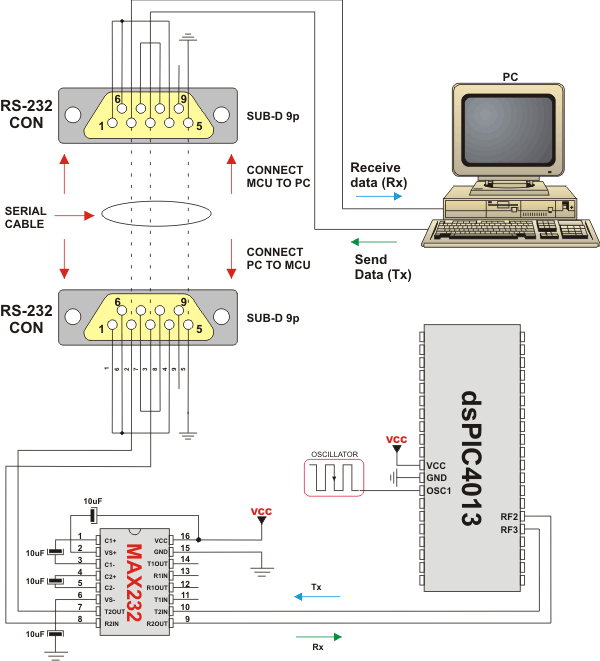

RS232 HW connection

RS232 HW connection

Copyright (c) 2002-2012 mikroElektronika. All rights reserved.
What do you think about this topic ? Send us feedback!
Want more examples and libraries?
Find them on LibStock - A place for the code
