Graphic Lcd Library

mikroBasic PRO for dsPIC30/33 and PIC24 provides a library for operating Graphic Lcd 128x64 (with commonly used Samsung KS108/KS107 controller).

For creating a custom set of Glcd images use Glcd Bitmap Editor Tool.

Library Dependency Tree

External dependencies of Graphic Lcd Library

The following variables must be defined in all projects using Graphic Lcd Library:	Description :	Example :
`dim GLCD_D0 as sbit sfr external`	Data 0 line.	`dim GLCD_D0 as sbit at RB0_bit`
`dim GLCD_D1 as sbit sfr external`	Data 1 line.	`dim GLCD_D1 as sbit at RB1_bit`
`dim GLCD_D2 as sbit sfr external`	Data 2 line.	`dim GLCD_D2 as sbit at RB2_bit`
`dim GLCD_D3 as sbit sfr external`	Data 3 line.	`dim GLCD_D3 as sbit at RB3_bit`
`dim GLCD_D4 as sbit sfr external`	Data 4 line.	`dim GLCD_D4 as sbit at RD0_bit`
`dim GLCD_D5 as sbit sfr external`	Data 5 line.	`dim GLCD_D5 as sbit at RD1_bit`
`dim GLCD_D6 as sbit sfr external`	Data 6 line.	`dim GLCD_D6 as sbit at RD2_bit`
`dim GLCD_D7 as sbit sfr external`	Data 7 line.	`dim GLCD_D7 as sbit at RD3_bit`
`dim GLCD_CS1 as sbit sfr external`	Chip Select 1 line.	`dim GLCD_CS1 as sbit at LATB4_bit`
`dim GLCD_CS2 as sbit sfr external`	Chip Select 2 line.	`dim GLCD_CS2 as sbit at LATB5_bit`
`dim GLCD_RS as sbit sfr external`	Register select line.	`dim GLCD_RS as sbit at LATF0_bit`
`dim GLCD_RW as sbit sfr external`	Read/Write line.	`dim GLCD_RW as sbit at LATF1_bit`
`dim GLCD_EN as sbit sfr external`	Enable line.	`dim GLCD_EN as sbit at LATF4_bit`
`dim GLCD_RST as sbit sfr external`	Reset line.	`dim GLCD_RST as sbit at RB5_bit`
`dim GLCD_D0_Direction as sbit sfr external`	Direction of the Data 0 pin.	`dim GLCD_D0_Direction as sbit at TRISB0_bit`
`dim GLCD_D1_Direction as sbit sfr external`	Direction of the Data 1 pin.	`dim GLCD_D1_Direction as sbit at TRISB1_bit`
`dim GLCD_D2_Direction as sbit sfr external`	Direction of the Data 2 pin.	`dim GLCD_D2_Direction as sbit at TRISF2_bit`
`dim GLCD_D3_Direction as sbit sfr external`	Direction of the Data 3 pin.	`dim GLCD_D3_Direction as sbit at TRISF3_bit`
`dim GLCD_D4_Direction as sbit sfr external`	Direction of the Data 4 pin.	`dim GLCD_D4_Direction as sbit at TRISD0_bit`
`dim GLCD_D5_Direction as sbit sfr external`	Direction of the Data 5 pin.	`dim GLCD_D5_Direction as sbit at TRISD1_bit`
`dim GLCD_D6_Direction as sbit sfr external`	Direction of the Data 6 pin.	`dim GLCD_D6_Direction as sbit at TRISD2_bit`
`dim GLCD_D7_Direction as sbit sfr external`	Direction of the Data 7 pin.	`dim GLCD_D7_Direction as sbit at TRISD3_bit`
`dim GLCD_CS1_Direction as sbit sfr external`	Direction of the Chip Select 1 pin.	`dim GLCD_CS1_Direction as sbit at TRISB4_bit`
`dim GLCD_CS2_Direction as sbit sfr external`	Direction of the Chip Select 2 pin.	`dim GLCD_CS2_Direction as sbit at TRISB5_bit`
`dim GLCD_RS_Direction as sbit sfr external`	Direction of the Register select pin.	`dim GLCD_RS_Direction as sbit at TRISF0_bit`
`dim GLCD_RW_Direction as sbit sfr external`	Direction of the Read/Write pin.	`dim GLCD_RW_Direction as sbit at TRISF1_bit`
`dim GLCD_EN_Direction as sbit sfr external`	Direction of the Enable pin.	`dim GLCD_EN_Direction as sbit at TRISF4_bit`
`dim GLCD_RST_Direction as sbit sfr external`	Direction of the Reset pin.	`dim GLCD_RST_Direction as sbit at TRISF5_bit`

Library Routines

Basic routines:

Glcd_Init
Glcd_Set_Side
Glcd_Set_X
Glcd_Set_Page
Glcd_Read_Data
Glcd_Write_Data
Glcd_Set_Ext_Buffer

Advanced routines:

Glcd_Fill
Glcd_Dot
Glcd_Line
Glcd_V_Line
Glcd_H_Line
Glcd_Rectangle
Glcd_Rectangle_Round_Edges
Glcd_Rectangle_Round_Edges_Fill
Glcd_Box
Glcd_Circle
Glcd_Circle_Fill
Glcd_Set_Font
Glcd_Set_Font_Adv
Glcd_Set_Ext_Font_Adv
Glcd_Write_Char
Glcd_Write_Char_Adv
Glcd_Write_Text
Glcd_Write_Text_Adv
Glcd_Write_Const_Text_Adv
Glcd_Image
Glcd_Ext_Image
Glcd_PartialImage
Glcd_Ext_PartialImage

Glcd_Init

Prototype	sub procedure Glcd_Init()
Description	Initializes the Glcd module. Each of the control lines are both port and pin configurable, while data lines must be on a single port (pins <0:7>).
Parameters	None.
Returns	Nothing.
Requires	Global variables : `GLCD_D0 :` Data pin 0 `GLCD_D1 :` Data pin 1 `GLCD_D2 :` Data pin 2 `GLCD_D3 :` Data pin 3 `GLCD_D4 :` Data pin 4 `GLCD_D5 :` Data pin 5 `GLCD_D6 :` Data pin 6 `GLCD_D7 :` Data pin 7 `GLCD_CS1 :` Chip select 1 signal pin `GLCD_CS2 :` Chip select 2 signal pin `GLCD_RS :` Register select signal pin `GLCD_RW :` Read/Write Signal pin `GLCD_EN :` Enable signal pin `GLCD_RST :` Reset signal pin `GLCD_D0_Direction :` Direction of the Data pin 0 `GLCD_D1_Direction :` Direction of the Data pin 1 `GLCD_D2_Direction :` Direction of the Data pin 2 `GLCD_D3_Direction :` Direction of the Data pin 3 `GLCD_D4_Direction :` Direction of the Data pin 4 `GLCD_D5_Direction :` Direction of the Data pin 5 `GLCD_D6_Direction :` Direction of the Data pin 6 `GLCD_D7_Direction :` Direction of the Data pin 7 `GLCD_CS1_Direction :` Direction of the Chip select 1 pin `GLCD_CS2_Direction :` Direction of the Chip select 2 pin `GLCD_RS_Direction :` Direction of the Register select signal pin `GLCD_RW_Direction :` Direction of the Read/Write signal pin `GLCD_EN_Direction :` Direction of the Enable signal pin `GLCD_RST_Direction :` Direction of the Reset signal pin must be defined before using this function.
Example	' Glcd module connections dim GLCD_D7 as sbit at RD3_bit GLCD_D6 as sbit at RD2_bit GLCD_D5 as sbit at RD1_bit GLCD_D4 as sbit at RD0_bit GLCD_D3 as sbit at RB3_bit GLCD_D2 as sbit at RB2_bit GLCD_D1 as sbit at RB1_bit GLCD_D0 as sbit at RB0_bit GLCD_D7_Direction as sbit at TRISD3_bit GLCD_D6_Direction as sbit at TRISD2_bit GLCD_D5_Direction as sbit at TRISD1_bit GLCD_D4_Direction as sbit at TRISD0_bit GLCD_D3_Direction as sbit at TRISB3_bit GLCD_D2_Direction as sbit at TRISB2_bit GLCD_D1_Direction as sbit at TRISB1_bit GLCD_D0_Direction as sbit at TRISB0_bit dim GLCD_CS1 as sbit at LATB4_bit GLCD_CS2 as sbit at LATB5_bit GLCD_RS as sbit at LATF0_bit GLCD_RW as sbit at LATF1_bit GLCD_EN as sbit at LATF4_bit GLCD_RST as sbit at LATF5_bit dim GLCD_CS1_Direction as sbit at TRISB4_bit GLCD_CS2_Direction as sbit at TRISB5_bit GLCD_RS_Direction as sbit at TRISF0_bit GLCD_RW_Direction as sbit at TRISF1_bit GLCD_EN_Direction as sbit at TRISF4_bit GLCD_RST_Direction as sbit at TRISF5_bit ' End Glcd module connections ... Glcd_Init()
Notes	None.

Glcd_Set_Side

Prototype	sub procedure Glcd_Set_Side(dim x_pos as byte)
Description	Selects Glcd side. Refer to the Glcd datasheet for detailed explanation.
Parameters	`x_pos:` Specifies position on x-axis of the Glcd. Valid values: 0..127. Values from 0 to 63 specify the left side, values from 64 to 127 specify the right side of the Glcd.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	The following two lines are equivalent, and both of them select the left side of Glcd: Glcd_Select_Side(0) Glcd_Select_Side(10)

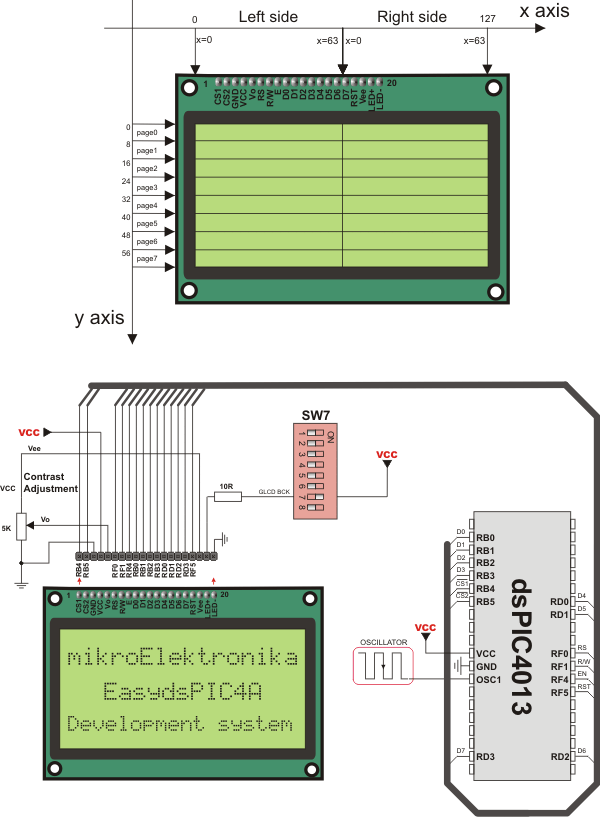

Notes	For side, x axis and page layout explanation see schematic at the bottom of this page.

Glcd_Set_X

Prototype	sub procedure Glcd_Set_X(dim x_pos as byte)
Description	Sets x-axis position to `x_pos` dots from the left border of Glcd within the selected side.
Parameters	`x_pos:` position on x-axis. Valid values: 0..63
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Set_X(25)
Notes	For side, x axis and page layout explanation see schematic at the bottom of this page.

Glcd_Set_Page

Prototype	sub procedure Glcd_Set_Page(dim page as byte)
Description	Selects page of the Glcd.
Parameters	`page:` page number. Valid values: 0..7
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Set_Page(5)
Notes	For side, x axis and page layout explanation see schematic at the bottom of this page.

Glcd_Read_Data

Prototype	sub function Glcd_Read_Data() as byte
Description	Reads data from from the current location of Glcd memory and moves to the next location.
Parameters	None.
Returns	One byte from Glcd memory, formatted as a word (16-bit).
Requires	Glcd needs to be initialized, see Glcd_Init routine. Glcd side, x-axis position and page should be set first. See functions Glcd_Set_Side, Glcd_Set_X, and Glcd_Set_Page.
Example	dim data_ as byte ... Glcd_Read_Data() data_ = Glcd_Read_Data()
Notes	This routine needs to be called twice; After the first call, data is placed in the buffer register. After the second call, data is passed from the buffer register to data lines.

Glcd_Write_Data

Prototype	sub procedure Glcd_Write_Data(dim data_ as byte)
Returns	Nothing.
Description	Writes one byte to the current location in Glcd memory and moves to the next location. Parameters : `data_:` data to be written
Requires	Glcd needs to be initialized, see Glcd_Init routine. Glcd side, x-axis position and page should be set first. See functions Glcd_Set_Side, Glcd_Set_X, and Glcd_Set_Page.
Example	dim data_ as byte ... Glcd_Write_Data(data_)

Glcd_Set_Ext_Buffer

Prototype	sub procedure Glcd_Set_Ext_Buffer(dim getExtDataPtr as ^TGlcd_Get_Ext_Data_Ptr)
Returns	Nothing.
Description	Function sets pointer to the user function which manipulates the external resource. Parameters : `TGlcd_Get_Ext_Data_Ptr` - pointer to the user function. User function prototype should be in the following format: `sub function External(dim offset as longword, dim count as word, dim byref num as word) as ^byte` Parameters used in the function have the following meaning : `offset` - offset from the beginning of the resource from where the data is requested. `count` - requested number of bytes. `num` - variable for holding the returned number of bytes (less or equal to the number of acquired bytes).
Requires	Glcd module needs to be initialized. See the Glcd_Init routine.
Example	Glcd_Set_Ext_Buffer(@ReadExternalBuffer)

Glcd_Fill

Prototype	sub procedure Glcd_Fill(dim pattern as byte)
Description	Fills Glcd memory with the byte `pattern`. To clear the Glcd screen, use `Glcd_Fill(0)`. To fill the screen completely, use `Glcd_Fill(0xFF)`.
Parameters	`pattern:` byte to fill Glcd memory with.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Fill(0) ' Clear screen
Notes	None.

Glcd_Dot

Prototype	sub procedure Glcd_Dot(dim x_pos, y_pos, color as byte)
Description	Draws a dot on Glcd at coordinates (`x_pos`, `y_pos`).
Parameters	`x_pos:` x position. Valid values: 0..127 `y_pos:` y position. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines a dot state: 0 clears dot, 1 puts a dot, and 2 inverts dot state.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Invert the dot in the upper left corner Glcd_Dot(0, 0, 2)
Notes	For x and y axis layout explanation see schematic at the bottom of this page.

Glcd_Line

Prototype	sub procedure Glcd_Line(dim x_start, y_start, x_end, y_end as integer, dim color as byte)
Description	Draws a line on Glcd.
Parameters	`x_start:` x coordinate of the line start. Valid values: 0..127 `y_start:` y coordinate of the line start. Valid values: 0..63 `x_end:` x coordinate of the line end. Valid values: 0..127 `y_end:` y coordinate of the line end. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the line color: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a line between dots (0,0) and (20,30) Glcd_Line(0, 0, 20, 30, 1)
Notes	None.

Glcd_V_Line

Prototype	sub procedure Glcd_V_Line(dim y_start, y_end, x_pos, color as byte)
Description	Draws a vertical line on Glcd.
Parameters	`y_start:` y coordinate of the line start. Valid values: 0..63 `y_end:` y coordinate of the line end. Valid values: 0..63 `x_pos:` x coordinate of vertical line. Valid values: 0..127 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the line color: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a vertical line between dots (10,5) and (10,25) Glcd_V_Line(5, 25, 10, 1)
Notes	None.

Glcd_H_Line

Prototype	sub procedure Glcd_H_Line(dim x_start, x_end, y_pos, color as byte)
Description	Draws a horizontal line on Glcd.
Parameters	`x_start:` x coordinate of the line start. Valid values: 0..127 `x_end:` x coordinate of the line end. Valid values: 0..127 `y_pos:` y coordinate of horizontal line. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the line color: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a horizontal line between dots (10,20) and (50,20) Glcd_H_Line(10, 50, 20, 1)
Notes	None.

Glcd_Rectangle

Prototype	sub procedure Glcd_Rectangle(dim x_upper_left, y_upper_left, x_bottom_right, y_bottom_right, color as byte)
Description	Draws a rectangle on Glcd.
Parameters	`x_upper_left:` x coordinate of the upper left rectangle corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left rectangle corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right rectangle corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right rectangle corner. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the rectangle border: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a rectangle between dots (5,5) and (40,40) Glcd_Rectangle(5, 5, 40, 40, 1)
Notes	None.

Glcd_Rectangle_Round_Edges

Prototype	sub procedure Glcd_Rectangle_Round_Edges(dim x_upper_left as byte, dim y_upper_left as byte, dim x_bottom_right as byte, dim y_bottom_right as byte, dim radius as byte, dim color as byte)
Description	Draws a rounded edge rectangle on Glcd.
Parameters	`x_upper_left:` x coordinate of the upper left rectangle corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left rectangle corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right rectangle corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right rectangle corner. Valid values: 0..63 `round_radius:` radius of the rounded edge. `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the rectangle border: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a rounded edge rectangle between dots (5,5) and (40,40) with the radius of 12 Glcd_Rectangle_Round_Edges(5, 5, 40, 40, 12, 1)
Notes	None.

Glcd_Rectangle_Round_Edges_Fill

Prototype	sub procedure Glcd_Rectangle_Round_Edges_Fill(dim x_upper_left as byte, dim y_upper_left as byte, dim x_bottom_right as byte, dim y_bottom_right as byte, dim radius as byte, dim color as byte)
Description	Draws a filled rounded edge rectangle on Glcd.
Parameters	`x_upper_left:` x coordinate of the upper left rectangle corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left rectangle corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right rectangle corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right rectangle corner. Valid values: 0..63 `round_radius:` radius of the rounded edge. `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the rectangle : 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draws a filled rounded edge rectangle between dots (5,5) and (40,40) with the radius of 12 Glcd_Rectangle_Round_Edges_Fill(5, 5, 40, 40, 12, 1)
Notes	None.

Glcd_Box

Prototype	sub procedure Glcd_Box(dim x_upper_left, y_upper_left, x_bottom_right, y_bottom_right, color as byte)
Description	Draws a box on Glcd.
Parameters	`x_upper_left:` x coordinate of the upper left box corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left box corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right box corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right box corner. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the box fill: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a box between dots (5,15) and (20,40) Glcd_Box(5, 15, 20, 40, 1)
Notes	None.

Glcd_Circle

Prototype	sub procedure Glcd_Circle(dim x_center, y_center, radius as integer, dim color as byte)
Description	Draws a circle on Glcd.
Parameters	`x_center:` x coordinate of the circle center. Valid values: 0..127 `y_center:` y coordinate of the circle center. Valid values: 0..63 `radius:` radius size `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the circle line: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a circle with center in (50,50) and radius=10 Glcd_Circle(50, 50, 10, 1)
Notes	None.

Glcd_Circle_Fill

Prototype	sub procedure Glcd_Circle_Fill(dim x_center as integer, dim y_center as integer, dim radius as integer, dim color as byte)
Description	Draws a filled circle on Glcd.
Parameters	`x_center:` x coordinate of the circle center. Valid values: 0..127 `y_center:` y coordinate of the circle center. Valid values: 0..63 `radius:` radius size `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the circle line: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a circle with center in (50,50) and radius=10 Glcd_Circle_Fill(50, 50, 10, 1)
Notes	None.

Glcd_Set_Font

Prototype	sub procedure Glcd_Set_Font(dim activeFont as ^const far byte, dim aFontWidth, aFontHeight as byte, dim aFontOffs as byte)
Description	Sets font that will be used with Glcd_Write_Char and Glcd_Write_Text routines.
Parameters	`activeFont:` font to be set. Needs to be formatted as an array of char `aFontWidth:` width of the font characters in dots. `aFontHeight:` height of the font characters in dots. `aFontOffs:` number that represents difference between the mikroBasic PRO for dsPIC30/33 and PIC24 character set and regular ASCII set (eg. if 'A' is 65 in ASCII character, and 'A' is 45 in the mikroBasic PRO for dsPIC30/33 and PIC24 character set, aFontOffs is 20). Demo fonts supplied with the library have an offset of 32, which means that they start with space. The user can use fonts given in the file “__Lib_GLCDFonts” file located in the Uses folder or create his own fonts. List of supported fonts: `Font_Glcd_System3x5` `Font_Glcd_System5x7` `Font_Glcd_5x7` `Font_Glcd_Character8x7` For the sake of the backward compatibility, these fonts are supported also: `System3x5` (equivalent to `Font_Glcd_System3x5`) `FontSystem5x7_v2` (equivalent to `Font_Glcd_System5x7`) `font5x7` (equivalent to `Font_Glcd_5x7`) `Character8x7` (equivalent to `Font_Glcd_Character8x7`)
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Use the custom 5x7 font "myfont" which starts with space (32): Glcd_Set_Font(@myfont, 5, 7, 32)
Notes	None.

Glcd_Set_Font_Adv

Prototype	sub procedure Glcd_Set_Font_Adv(dim const activeFont as ^far byte, dim font_color as word, dim font_orientation as word)
Description	Sets font that will be used with Glcd_Write_Char_Adv and Glcd_Write_Text_Adv routines.
Parameters	`activeFont:` font to be set. Needs to be formatted as an array of char. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Set_Font_Adv(@myfont, 0, 0)
Notes	None.

Glcd_Set_Ext_Font_Adv

Prototype	sub procedure Glcd_Set_Ext_Font_Adv(dim activeFont as longword, dim font_color as word, dim font_orientation as byte)
Description	Sets font that will be used with Glcd_Write_Char_Adv and Glcd_Write_Text_Adv routines. Font is located in an external resource.
Parameters	`activeFont:` font to be set. This parameter represents the address in the exteral resource from where the font data begins. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Set_Ext_Font_Adv(173296, 5, 7, 32)
Notes	None.

Glcd_Write_Char

Prototype	sub procedure Glcd_Write_Char(dim character, x_pos, page_num, color as byte)
Description	Prints character on the Glcd.
Parameters	`character:` character to be written `x_pos:` character starting position on x-axis. Valid values: 0..(127-FontWidth) `page_num:` the number of the page on which character will be written. Valid values: 0..7 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the character: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine. Use Glcd_Set_Font to specify the font for display; if no font is specified, then default `Font_Glcd_System5x7` font supplied with the library will be used.
Example	' Write character 'C' on the position 10 inside the page 2: Glcd_Write_Char('C', 10, 2, 1)
Notes	For x axis and page layout explanation see schematic at the bottom of this page.

Glcd_Write_Char_Adv

Prototype	sub procedure Glcd_Write_Char_Adv(dim ch, x, y as word)
Returns	Nothing.
Description	Writes a char on the glcd at coordinates (x, y). `c:` char to be written. `x:` char position on x-axis. `y:` char position on y-axis.
Requires	glcd module needs to be initialized. See the Glcd_Init routine.
Example	Glcd_Write_Char_Adv("A",22,23)

Glcd_Write_Text

Prototype	sub procedure Glcd_Write_Text(dim byref text as string, dim x_pos, page_num, color as word)
Description	Prints text on Glcd.
Parameters	`text:` text to be written `x_pos:` text starting position on x-axis. `page_num:` the number of the page on which text will be written. Valid values: 0..7 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the text: 0 white, 1 black, and 2 inverts each dot.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine. Use Glcd_Set_Font to specify the font for display; if no font is specified, then default `Font_Glcd_System5x7` font supplied with the library will be used.
Example	' Write text "Hello world!" on the position 10 inside the page 2: Glcd_Write_Text("Hello world!", 10, 2, 1)
Notes	For x axis and page layout explanation see schematic at the bottom of this page.

Glcd_Write_Text_Adv

Prototype	sub procedure Glcd_Write_Text_Adv(dim byref text as string, dim x, y as word)
Returns	Nothing.
Description	Writes text on the glcd at coordinates (x, y). Parameters : `text:` text to be written. `x:` text position on x-axis. `y:` text position on y-axis.
Requires	Glcd module needs to be initialized. See the Glcd_Init routine.
Example	Glcd_Write_Text_Adv("GLCD LIBRARY DEMO, WELCOME !", 0, 0)

Glcd_Write_Const_Text_Adv

Prototype	sub procedure Glcd_Write_Const_Text_Adv(dim ctext as ^const far byte, dim x, y as word)
Returns	Nothing.
Description	Writes text located in the program memory on the glcd at coordinates (x, y). Parameters : `text:` text to be written. `x:` text position on x-axis. `y:` text position on y-axis.
Requires	Glcd module needs to be initialized. See the Glcd_Init routine.
Example	const ctext = "mikroElektronika" ... Glcd_Write_Const_Text_Adv(@ctext, 0, 0)

Glcd_Image

Prototype	sub procedure Glcd_Image(dim image as ^const far byte)
Description	Displays bitmap on Glcd.
Parameters	`image:` image to be displayed. Bitmap array can be located in both code and RAM memory (due to the mikroBasic PRO for dsPIC30/33 and PIC24 pointer to const and pointer to RAM equivalency).
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw image my_image on Glcd Glcd_Image(@my_image)
Notes	Use the mikroBasic PRO for dsPIC30/33 and PIC24 integrated Glcd Bitmap Editor, Tools > Glcd Bitmap Editor, to convert image to a constant array suitable for displaying on Glcd.

Glcd_Ext_Image

Prototype	sub procedure Glcd_Ext_Image(dim image as longword)
Description	Displays a bitmap from an external resource.
Parameters	`image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Ext_Image(153608)
Notes	Use the mikroBasic PRO for PIC32 integrated Glcd Bitmap Editor, Tools > Glcd Bitmap Editor, to convert image to a constant array suitable for displaying on Glcd.

Glcd_PartialImage

Prototype	sub procedure Glcd_PartialImage(dim x_left, y_top, width, height, picture_width, picture_height as word, dim image as ^const far byte)
Description	Displays a partial area of the image on a desired location.
Parameters	`x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. Bitmap array can be located in both code and RAM memory (due to the mikroBasic PRO for PIC pointer to const and pointer to RAM equivalency).
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draws a 10x15 part of the image starting from the upper left corner on the coordinate (10,12). Original image size is 16x32. Glcd_PartialImage(10, 12, 10, 15, 16, 32, @image)
Notes	Use the mikroBasic PRO for dsPIC30/33 and PIC24 integrated Glcd Bitmap Editor, Tools > Glcd Bitmap Editor, to convert image to a constant array suitable for displaying on Glcd.

Glcd_Ext_PartialImage

Prototype	sub procedure Glcd_Ext_PartialImage(dim x_left, y_top, width, height, picture_width, picture_height as word, dim image as longword)
Description	Displays a partial area of the image, located on an external resource, on a desired location of the screen.
Parameters	`x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Ext_PartialImage(10, 12, 10, 15, 16, 32, 0)
Notes	Use the mikroBasic PRO for PIC32 integrated Glcd Bitmap Editor, Tools > Glcd Bitmap Editor, to convert image to a constant array suitable for displaying on Glcd.

Library Example

The following drawing demo tests advanced routines of the Glcd library.

Copy Code To Clipboard

program GLCD_Test

' Glcd module connections
dim GLCD_D7 as sbit at RD3_bit
    GLCD_D6 as sbit at RD2_bit
    GLCD_D5 as sbit at RD1_bit
    GLCD_D4 as sbit at RD0_bit
    GLCD_D3 as sbit at RB3_bit
    GLCD_D2 as sbit at RB2_bit
    GLCD_D1 as sbit at RB1_bit
    GLCD_D0 as sbit at RB0_bit
    GLCD_D7_Direction as sbit at TRISD3_bit
    GLCD_D6_Direction as sbit at TRISD2_bit
    GLCD_D5_Direction as sbit at TRISD1_bit
    GLCD_D4_Direction as sbit at TRISD0_bit
    GLCD_D3_Direction as sbit at TRISB3_bit
    GLCD_D2_Direction as sbit at TRISB2_bit
    GLCD_D1_Direction as sbit at TRISB1_bit
    GLCD_D0_Direction as sbit at TRISB0_bit

dim GLCD_CS1 as sbit at LATB4_bit
    GLCD_CS2 as sbit at LATB5_bit
    GLCD_RS  as sbit at LATF0_bit
    GLCD_RW  as sbit at LATF1_bit
    GLCD_EN  as sbit at LATF4_bit
    GLCD_RST as sbit at LATF5_bit

dim GLCD_CS1_Direction as sbit at TRISB4_bit
    GLCD_CS2_Direction as sbit at TRISB5_bit
    GLCD_RS_Direction  as sbit at TRISF0_bit
    GLCD_RW_Direction  as sbit at TRISF1_bit
    GLCD_EN_Direction  as sbit at TRISF4_bit
    GLCD_RST_Direction as sbit at TRISF5_bit
' End Glcd module connections

dim counter as byte
    someText as char[18]

sub procedure Delay2S()                            ' 2 seconds delay function
  Delay_ms(2000)
end sub

main:
  #DEFINE COMPLETE_EXAMPLE                         ' comment this line to make simpler/smaller example
  ADPCFG = 0xFFFF                                  ' Configure AN pins as digital

  Glcd_Init()                                      ' Initialize GLCD
  Glcd_Fill(0x00)                                  ' Clear GLCD

  while TRUE
    #IFDEF COMPLETE_EXAMPLE
    Glcd_Image(@truck_bmp)                         ' Draw image
    Delay2S() delay2S()
    #ENDIF
    Glcd_Fill(0x00)                                ' Clear Glcd

    Glcd_Box(62,40,124,63,1)                       ' Draw box
    Glcd_Rectangle(5,5,84,35,1)                    ' Draw rectangle
    Glcd_Line(0, 0, 127, 63, 1)                    ' Draw line
    Delay2S()
    counter = 5
    while (counter <= 59)                          ' Draw horizontal and vertical lines
      Delay_ms(250)
      Glcd_V_Line(2, 54, counter, 1)
      Glcd_H_Line(2, 120, counter, 1)
      Counter = counter + 5
    wend

    Delay2S()

    Glcd_Fill(0x00)                                ' Clear Glcd
    #IFDEF COMPLETE_EXAMPLE
    Glcd_Set_Font(@Character8x7, 8, 7, 32)         ' Choose font "Character8x7"
    Glcd_Write_Text("mikroE", 1, 7, 2)             ' Write string
    #ENDIF
    for counter = 1 to 10                          ' Draw circles
      Glcd_Circle(63,32, 3*counter, 1)
    next counter
    Delay2S()

    Glcd_Box(12,20, 70,57, 2)                      ' Draw box
    Delay2S()

    Glcd_Fill(0xFF)                                ' Fill Glcd
    #IFDEF COMPLETE_EXAMPLE
    Glcd_Set_Font(@Character8x7, 8, 7, 32)         ' Change font
    someText = "8x7 Font"
    Glcd_Write_Text(someText, 5, 0, 2)             ' Write string
    delay2S()

    Glcd_Set_Font(@System3x5, 3, 5, 32)            ' Change font
    someText = "3X5 CAPITALS ONLY"
    Glcd_Write_Text(someText, 60, 2, 2)            ' Write string
    delay2S()

    Glcd_Set_Font(@font5x7, 5, 7, 32)              ' Change font
    someText = "5x7 Font"
    Glcd_Write_Text(someText, 5, 4, 2)             ' Write string
    delay2S()

    Glcd_Set_Font(@FontSystem5x7_v2, 5, 7, 32)     ' Change font
    someText = "5x7 Font (v2)"
    Glcd_Write_Text(someText, 51, 6, 2)            ' Write string
    delay2S()
    #ENDIF
  wend
end.

HW Connection

Glcd HW connection

Want more examples and libraries?
Find them on
