SPI Library

SPI module is available with a number of PIC MCU models. mikroPascal PRO for PIC provides a library for initializing Slave mode and comfortable work with Master mode. PIC can easily communicate with other devices via SPI: A/D converters, D/A converters, MAX7219, LTC1290, etc. You need PIC MCU with hardware integrated SPI (for example, PIC16F877).

Important :

SPI routines require you to specify the module you want to use. To select the desired SPI, simply change the letter x in the prototype for a number from 1 to 2.
Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.
Some MCUs have multiple SPI modules. Switching between the SPI modules in the SPI library is done by the SPI_Set_Active function (SPI module has to be previously initialized).
Some of the MCUs do not support SPIx_Init_Advanced routine. Please, refer to the appropriate datasheet.
Certain SPI lines on some PIC16 Enhanced Family MCUs can be routed through a alternative pins. These pins are selected by configuring APFCON register and appropriate TRIS register.

Generic Routines

SPI_Read
SPI_Write

SPIx_Init

Prototype	procedure SPIx_Init();
Returns	Nothing.
Description	This routine configures and enables SPI module with the following settings: master mode clock Fosc/4 clock idle state low data transimtted on low to high edge input data sampled at the middle of interval
Requires	You need PIC MCU with hardware integrated SPI.
Example	// Initialize the SPI1 module with default settings SPI1_Init();

SPIx_Init_Advanced

Prototype

procedure SPIx_Init_Advanced(master, data_sample, clock_idle, transmit_edge : byte);

Returns

Nothing.

Description

Configures and initializes SPI. SPIx_Init or SPIx_Init_Advanced needs to be called before using other functions of SPI Library.

Parameters mode, data_sample and clock_idle configure the SPI module, and can have the following values:

Description	Predefined library const
SPI work mode:
`Master clock = Fosc/4`	`_SPI_MASTER_OSC_DIV4`
`Master clock = Fosc/16`	`_SPI_MASTER_OSC_DIV16`
`Master clock = Fosc/64`	`_SPI_MASTER_OSC_DIV64`
`Master clock source TMR2`	`_SPI_MASTER_TMR2`
`Slave select enabled`	`_SPI_SLAVE_SS_ENABLE`
`Slave select disabled`	`_SPI_SLAVE_SS_DIS`
Data sampling interval:
`Input data sampled in middle of interval`	`_SPI_DATA_SAMPLE_MIDDLE`
`Input data sampled at the end of interval`	`_SPI_DATA_SAMPLE_END`
SPI clock idle state:
`Clock idle HIGH`	`_SPI_CLK_IDLE_HIGH`
`Clock idle LOW`	`_SPI_CLK_IDLE_LOW`
Transmit edge:
`Data transmit on low to high edge`	`_SPI_LOW_2_HIGH`
`Data transmit on high to low edge`	`_SPI_HIGH_2_LOW`

Requires

You need PIC MCU with hardware integrated SPI.

Example

// Set SPI1 module to master mode, clock = Fosc/4, data sampled at the middle of interval, clock idle state low and data transmitted at low to high edge:
SPI1_Init_Advanced(_SPI_MASTER_OSC_DIV4, _SPI_DATA_SAMPLE_MIDDLE, _SPI_CLK_IDLE_LOW, _SPI_LOW_2_HIGH);

SPIx_Read

Prototype	function SPIx_Read(buffer : byte) : byte;
Returns	Returns the received data.
Description	Reads one byte from the SPI bus. Parameters : `buffer:` dummy data for clock generation (see device Datasheet for SPI modules implementation details)
Requires	You need PIC MCU with hardware integrated SPI. SPI must be initialized and communication established before using this function. See SPIx_Init_Advanced or SPIx_Init.
Example	var buffer, take : byte; begin take := SPI1_Read(buffer); end.

SPIx_Write

Prototype	procedure SPIx_Write(data_ : byte);
Returns	Nothing.
Description	Writes byte via the SPI bus. Parameters : `wrdata:` data to be sent
Requires	You need PIC MCU with hardware integrated SPI. SPI must be initialized and communication established before using this function. See SPIx_Init_Advanced or SPIx_Init.
Example	SPI1_Write(1);

SPI_Set_Active

Prototype	procedure SPI_Set_Active (read_ptr : ^TSPI_Rd_Ptr; write_ptr : ^TSPI_Wr_Ptr);
Returns	Nothing.
Description	Sets the active SPI module which will be used by the SPI routines. Parameters : `read_ptr:` SPIx_Read handler `write_ptr:` SPIx_Write handler
Requires	Routine is available only for MCUs with two SPI modules. Used SPI module must be initialized before using this function. See the SPIx_Init, SPIx_Init_Advanced
Example	SPI_Set_Active(@SPI2_Read, @SPI2_Write); // Sets the SPI2 module active

SPI_Read

Prototype	function SPI_Read(buffer : byte) : byte;
Returns	Returns the received data.
Description	Reads one byte from the SPI bus. This is a generic routine which uses the active SPI module previously activated by the SPI_Set_Active routine. Parameters : `buffer:` dummy data for clock generation (see device Datasheet for SPI modules implementation details)
Requires	You need PIC MCU with hardware integrated SPI. SPI must be initialized and communication established before using this function. See SPIx_Init_Advanced or SPIx_Init.
Example	var buffer, take : byte; begin take := SPI1_Read(buffer); end.

SPI_Write

Prototype	procedure SPI_Write(data_ : byte);
Returns	Nothing.
Description	Writes byte via the SPI bus. This is a generic routine which uses the active SPI module previously activated by the SPI_Set_Active routine. Parameters : `wrdata:` data to be sent
Requires	You need PIC MCU with hardware integrated SPI. SPI must be initialized and communication established before using this function. See SPIx_Init_Advanced or SPIx_Init.
Example	SPI1_Write(1);

Library Example

The code demonstrates how to use SPI library functions for communication between SPI module of the MCU and Microchip's MCP4921 12-bit D/A converter

Copy Code To Clipboard

program SPI;

// DAC module connections
var Chip_Select : sbit at RC0_bit;
    Chip_Select_Direction : sbit at TRISC0_bit;
// End DAC module connections

var value : word;

procedure InitMain();
  begin
    TRISA0_bit := 1;                        // Set RA0 pin as input
    TRISA1_bit := 1;                        // Set RA1 pin as input
    Chip_Select := 1;                       // Deselect DAC
    Chip_Select_Direction := 0;             // Set CS# pin as Output
    SPI1_Init();                            // Initialize SPI module
  end;

// DAC increments (0..4095) --> output voltage (0..Vref)
procedure DAC_Output( valueDAC : word);
var temp : byte;
  begin
    Chip_Select := 0;                        // Select DAC chip

    // Send High Byte
    temp := word(valueDAC shr 8) and 0x0F;   // Store valueDAC[11..8] to temp[3..0]
    temp := temp or 0x30;                    // Define DAC setting, see MCP4921 datasheet
    SPI1_Write(temp);                        // Send high byte via SPI

    // Send Low Byte
    temp := valueDAC;                        // Store valueDAC[7..0] to temp[7..0]
    SPI1_Write(temp);                        // Send low byte via SPI

    Chip_Select := 1;                        // Deselect DAC chip
  end;

begin

  ANSEL := 0;
  ANSELH := 0;

  InitMain();                                // Perform main initialization

  value := 2048;                             // When program starts, DAC gives
                                             //   the output in the mid-range

  while ( TRUE ) do                          // Endless loop
    begin

      if ((RA0_bit) and (value < 4095)) then // If RA0 button is pressed
        Inc(value)                           //   increment value
      else
        begin
          if ((RA1_bit) and (value > 0)) then  // If RA1 button is pressed
            Dec(value);                        //   decrement value
        end;

      DAC_Output(value);                     // Send value to DAC chip
      Delay_ms(1);                           // Slow down key repeat pace
    end;
end.

HW Connection

SPI connection

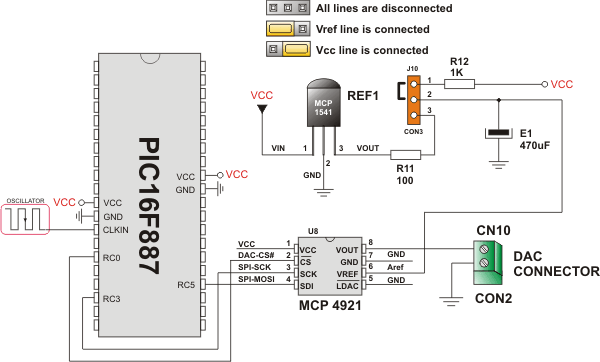

SPI HW connection
