T6963C Graphic Lcd Library

The mikroPascal PRO for 8051 provides a library for working with Glcds based on TOSHIBA T6963C controller. The Toshiba T6963C is a very popular Lcd controller for the use in small graphics modules. It is capable of controlling displays with a resolution up to 240x128. Because of its low power and small outline it is most suitable for mobile applications such as PDAs, MP3 players or mobile measurement equipment. Although small, this contoller has a capability of displaying and merging text and graphics and it manages all the interfacing signals to the displays Row and Column drivers.

For creating a custom set of Glcd images use Glcd Bitmap Editor Tool.

Note:

ChipEnable(CE), FontSelect(FS) and Reverse(MD) have to be set to appropriate levels by the user outside of the T6963C_Init function. See the Library Example code at the bottom of this page.
Some mikroElektronika's adapter boards have pinout different from T6369C datasheets. Appropriate relations between these labels are given in the table below:

Adapter Board	T6369C datasheet
RS	C/D
R/W	/RD
E	/WR

External dependencies of T6963C Graphic Lcd Library

The following variables must be defined in all projects using T6963C Graphic Lcd library:	Description :	Example :
`var T6963C_dataPort : byte; sfr; external;`	T6963C Data Port.	`var T6963C_dataPort : byte at P0;`
`var T6963C_ctrlwr : sbit; bdata; sfr; external;`	Write signal.	`var T6963C_ctrlwr : sbit at P1_2_bit;`
`var T6963C_ctrlrd : sbit; bdata; sfr; external;`	Read signal.	`var T6963C_ctrlrd : sbit at P1_1_bit;`
`var T6963C_ctrlcd : sbit; bdata; sfr; external;`	Command/Data signal.	`var T6963C_ctrlcd : sbit at P1_0_bit;`
`var T6963C_ctrlrst : sbit; bdata; sfr; external;`	Reset signal.	`var T6963C_ctrlrst : sbit at P1_4_bit;`

Library Routines

T6963C_Init
T6963C_WriteData
T6963C_WriteCommand
T6963C_SetPtr
T6963C_WaitReady
T6963C_Fill
T6963C_Dot
T6963C_Write_Char
T6963C_Write_Text
T6963C_Line
T6963C_Rectangle
T6963C_Box
T6963C_Circle
T6963C_Image
T6963C_Sprite
T6963C_Set_Cursor

Note: The following low level library routines are implemented as macros. These macros can be found in the T6963C.h header file which is located in the T6963C example projects folders.

T6963C_ClearBit
T6963C_SetBit
T6963C_NegBit
T6963C_DisplayGrPanel
T6963C_DisplayTxtPanel
T6963C_SetGrPanel
T6963C_SetTxtPanel
T6963C_PanelFill
T6963C_GrFill
T6963C_TxtFill
T6963C_Cursor_Height
T6963C_Graphics
T6963C_Text
T6963C_Cursor
T6963C_Cursor_Blink

T6963C_Init

Prototype	procedure T6963C_init(width, height, fntW : byte);
Returns	Nothing.
Description	Initalizes the Graphic Lcd controller. Parameters : `width:` width of the Glcd panel `height:` height of the Glcd panel `fntW:` font width Display RAM organization: The library cuts the RAM into panels : a complete panel is one graphics panel followed by a text panel (see schematic below). schematic: +---------------------+ /\ + GRAPHICS PANEL #0 + \| + + \| + + \| + + \| +---------------------+ \| PANEL 0 + TEXT PANEL #0 + \| + + \/ +---------------------+ /\ + GRAPHICS PANEL #1 + \| + + \| + + \| + + \| +---------------------+ \| PANEL 1 + TEXT PANEL #1 + \| + + \| +---------------------+ \/
Requires	Global variables : `T6963C_dataPort :` Data Port `T6963C_ctrlwr :` write signal pin `T6963C_ctrlrd :` read signal pin `T6963C_ctrlcd :` command/data signal pin `T6963C_ctrlrst :` reset signal pin must be defined before using this function.
Example	// T6963CGLCD pinout definition var T6963C_dataPort : byte at P0; // pointer to DATA BUS port var T6963C_ctrlwr : sbit at P1_2_bit; // WR write signal var T6963C_ctrlrd : sbit at P1_1_bit; // RD read signal var T6963C_ctrlcd : sbit at P1_0_bit; // CD command/data signal var T6963C_ctrlrst : sbit at P1_4_bit; // RST reset signal ... // init display for 240 pixel width, 128 pixel height and 8 bits character width T6963C_Init(240, 128, 8);

T6963C_WriteData

Prototype	procedure T6963C_WriteData(mydata : byte);
Returns	Nothing.
Description	Writes data to T6963C controller. Parameters : `mydata:` data to be written
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_WriteData(AddrL);

T6963C_WriteCommand

Prototype	procedure T6963C_WriteCommand(mydata : byte);
Returns	Nothing.
Description	Writes command to T6963C controller. Parameters : `mydata:` command to be written
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_WriteCommand(T6963C_CURSOR_POINTER_SET);

T6963C_SetPtr

Prototype	procedure T6963C_SetPtr(p : word; c : byte);
Returns	Nothing.
Description	Sets the memory pointer p for command c. Parameters : `p:` address where command should be written `c:` command to be written
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_SetPtr(T6963C_grHomeAddr + start, T6963C_ADDRESS_POINTER_SET);

T6963C_WaitReady

Prototype	procedure T6963C_WaitReady();
Returns	Nothing.
Description	Pools the status byte, and loops until Toshiba Glcd module is ready.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_WaitReady();

T6963C_Fill

Prototype	procedure T6963C_Fill(v : byte; start, len : word);
Returns	Nothing.
Description	Fills controller memory block with given byte. Parameters : `v:` byte to be written `start:` starting address of the memory block `len:` length of the memory block in bytes
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Fill(0x33,0x00FF,0x000F);

T6963C_Dot

Prototype	procedure T6963C_Dot(x, y : integer; color : byte);
Returns	Nothing.
Description	Draws a dot in the current graphic panel of Glcd at coordinates (x, y). Parameters : `x:` dot position on x-axis `y:` dot position on y-axis `color:` color parameter. Valid values: T6963C_BLACK and T6963C_WHITE
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Dot(x0, y0, pcolor);

T6963C_Write_Char

Prototype	procedure T6963C_Write_Char(c, x, y, mode : byte);
Returns	Nothing.
Description	Writes a char in the current text panel of Glcd at coordinates (x, y). Parameters : `c:` char to be written `x:` char position on x-axis `y:` char position on y-axis `mode:` mode parameter. Valid values: T6963C_ROM_MODE_OR, T6963C_ROM_MODE_XOR, T6963C_ROM_MODE_AND and T6963C_ROM_MODE_TEXT Mode parameter explanation: OR Mode: In the OR-Mode, text and graphics can be displayed and the data is logically "OR-ed". This is the most common way of combining text and graphics for example labels on buttons. XOR-Mode: In this mode, the text and graphics data are combined via the logical "exclusive OR". This can be useful to display text in the negative mode, i.e. white text on black background. AND-Mode: The text and graphic data shown on display are combined via the logical "AND function". TEXT-Mode: This option is only available when displaying just a text. The Text Attribute values are stored in the graphic area of display memory. For more details see the T6963C datasheet.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Write_Char('A',22,23,AND);

T6963C_Write_Text

Prototype	procedure T6963C_Write_Text(var str : string; x, y, mode : byte);
Returns	Nothing.
Description	Writes text in the current text panel of Glcd at coordinates (x, y). Parameters : `str:` text to be written `x:` text position on x-axis `y:` text position on y-axis `mode:` mode parameter. Valid values: T6963C_ROM_MODE_OR, T6963C_ROM_MODE_XOR, T6963C_ROM_MODE_AND and T6963C_ROM_MODE_TEXT Mode parameter explanation: OR Mode: In the OR-Mode, text and graphics can be displayed and the data is logically "OR-ed". This is the most common way of combining text and graphics for example labels on buttons. XOR-Mode: In this mode, the text and graphics data are combined via the logical "exclusive OR". This can be useful to display text in the negative mode, i.e. white text on black background. AND-Mode: The text and graphic data shown on display are combined via the logical "AND function". TEXT-Mode: This option is only available when displaying just a text. The Text Attribute values are stored in the graphic area of display memory. For more details see the T6963C datasheet.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Write_Text(" GLCD LIBRARY DEMO, WELCOME !", 0, 0, T6963C_ROM_MODE_XOR);

T6963C_Line

Prototype	procedure T6963C_Line(x0, y0, x1, y1 : integer; pcolor : byte);
Returns	Nothing.
Description	Draws a line from (x0, y0) to (x1, y1). Parameters : `x0:` x coordinate of the line start `y0:` y coordinate of the line end `x1:` x coordinate of the line start `y1:` y coordinate of the line end `pcolor:` color parameter. Valid values: T6963C_BLACK and T6963C_WHITE
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Line(0, 0, 239, 127, T6963C_WHITE);

T6963C_Rectangle

Prototype	procedure T6963C_Rectangle(x0, y0, x1, y1 : integer; pcolor : byte);
Returns	Nothing.
Description	Draws a rectangle on Glcd. Parameters : `x0:` x coordinate of the upper left rectangle corner `y0:` y coordinate of the upper left rectangle corner `x1:` x coordinate of the lower right rectangle corner `y1:` y coordinate of the lower right rectangle corner `pcolor:` color parameter. Valid values: T6963C_BLACK and T6963C_WHITE
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Rectangle(20, 20, 219, 107, T6963C_WHITE);

T6963C_Box

Prototype	procedure T6963C_Box(x0, y0, x1, y1 : integer; pcolor : byte);
Returns	Nothing.
Description	Draws a box on Glcd Parameters : `x0:` x coordinate of the upper left box corner `y0:` y coordinate of the upper left box corner `x1:` x coordinate of the lower right box corner `y1:` y coordinate of the lower right box corner `pcolor:` color parameter. Valid values: T6963C_BLACK and T6963C_WHITE
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Box(0, 119, 239, 127, T6963C_WHITE);

T6963C_Circle

Prototype	procedure T6963C_Circle(x, y : integer; r : longint; pcolor : word);
Returns	Nothing.
Description	Draws a circle on Glcd. Parameters : `x:` x coordinate of the circle center `y:` y coordinate of the circle center `r:` radius size `pcolor:` color parameter. Valid values: T6963C_BLACK and T6963C_WHITE
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Circle(120, 64, 110, T6963C_WHITE);

T6963C_Image

Prototype	procedure T6963C_Image(const code pic : ^byte);
Returns	Nothing.
Description	Displays bitmap on Glcd. Parameters : `pic:` image to be displayed. Bitmap array can be located in both code and RAM memory (due to the mikroPascal PRO for 8051 pointer to const and pointer to RAM equivalency). Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd. Note: Image dimension must match the display dimension.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Image(mc);

T6963C_Sprite

Prototype	procedure T6963C_Sprite(px, py : byte; const pic : ^byte; sx, sy : byte);
Returns	Nothing.
Description	Fills graphic rectangle area (px, py) to (px+sx, py+sy) with custom size picture. Parameters : `px:` x coordinate of the upper left picture corner. Valid values: multiples of the font width `py:` y coordinate of the upper left picture corner `pic:` picture to be displayed `sx:` picture width. Valid values: multiples of the font width `sy:` picture height Note: If `px` and `sx` parameters are not multiples of the font width they will be scaled to the nearest lower number that is a multiple of the font width.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Sprite(76, 4, einstein, 88, 119); // draw a sprite

T6963C_Set_Cursor

Prototype	procedure T6963C_Set_Cursor(x, y : byte);
Returns	Nothing.
Description	Sets cursor to row x and column y. Parameters : `x:` cursor position row number `y:` cursor position column number
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Set_Cursor(cposx, cposy);

T6963C_ClearBit

Prototype	procedure T6963C_ClearBit(b : byte);
Returns	Nothing.
Description	Clears control port bit(s). Parameters : `b:` bit mask. The function will clear bit `x` on control port if bit `x` in bit mask is set to 1.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// clear bits 0 and 1 on control port T6963C_ClearBit(0x03);

T6963C_SetBit

Prototype	procedure T6963C_SetBit(b : byte);
Returns	Nothing.
Description	Sets control port bit(s). Parameters : `b:` bit mask. The function will set bit `x` on control port if bit `x` in bit mask is set to 1.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// set bits 0 and 1 on control port T6963C_SetBit(0x03);

T6963C_NegBit

Prototype	procedure T6963C_NegBit(b : byte);
Returns	Nothing.
Description	Negates control port bit(s). Parameters : `b:` bit mask. The function will negate bit `x` on control port if bit `x` in bit mask is set to 1.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// negate bits 0 and 1 on control port T6963C_NegBit(0x03);

T6963C_DisplayGrPanel

Prototype	procedure T6963C_DisplayGrPanel(n : byte);
Returns	Nothing.
Description	Display selected graphic panel. Parameters : `n:` graphic panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// display graphic panel 1 T6963C_DisplayGrPanel(1);

T6963C_DisplayTxtPanel

Prototype	procedure T6963C_DisplayTxtPanel(n : byte);
Returns	Nothing.
Description	Display selected text panel. Parameters : `n:` text panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// display text panel 1 T6963C_DisplayTxtPanel(1);

T6963C_SetGrPanel

Prototype	procedure T6963C_SetGrPanel(n : byte);
Returns	Nothing.
Description	Computes start address for selected graphic panel and set appropriate internal pointers. All subsequent graphic operations will be preformed at this graphic panel. Parameters : `n:` graphic panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// set graphic panel 1 as current graphic panel. T6963C_SetGrPanel(1);

T6963C_SetTxtPanel

Prototype	procedure T6963C_SetTxtPanel(n : byte);
Returns	Nothing.
Description	Computes start address for selected text panel and set appropriate internal pointers. All subsequent text operations will be preformed at this text panel. Parameters : `n:` text panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// set text panel 1 as current text panel. T6963C_SetTxtPanel(1);

T6963C_PanelFill

Prototype	procedure T6963C_PanelFill(v : byte);
Returns	Nothing.
Description	Fill current panel in full (graphic+text) with appropriate value (0 to clear). Parameters : `v:` value to fill panel with.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	clear current panel T6963C_PanelFill(0);

T6963C_GrFill

Prototype	procedure T6963C_GrFill(v : byte);
Returns	Nothing.
Description	Fill current graphic panel with appropriate value (0 to clear). Parameters : `v:` value to fill graphic panel with.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// clear current graphic panel T6963C_GrFill(0);

T6963C_TxtFill

Prototype	procedure T6963C_TxtFill(v : byte);
Returns	Nothing.
Description	Fill current text panel with appropriate value (0 to clear). Parameters : `v:` this value increased by 32 will be used to fill text panel.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// clear current text panel T6963C_TxtFill(0);

T6963C_Cursor_Height

Prototype	procedure T6963C_Cursor_Height(n : byte);
Returns	Nothing.
Description	Set cursor size. Parameters : `n:` cursor height. Valid values: `0`..`7`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Cursor_Height(7);

T6963C_Graphics

Prototype	procedure T6963C_Graphics(n : byte);
Returns	Nothing.
Description	Enable/disable graphic displaying. Parameters : `n:` on/off parameter. Valid values: `0` (disable graphic displaying) and `1` (enable graphic displaying).
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// enable graphic displaying T6963C_Graphics(1);

T6963C_Text

Prototype	procedure T6963C_Text(n : byte);
Returns	Nothing.
Description	Enable/disable text displaying. Parameters : `n:` on/off parameter. Valid values: `0` (disable text displaying) and `1` (enable text displaying).
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// enable text displaying T6963C_Text(1);

T6963C_Cursor

Prototype	procedure T6963C_Cursor(n : byte);
Returns	Nothing.
Description	Set cursor on/off. Parameters : `n:` on/off parameter. Valid values: `0` (set cursor off) and `1` (set cursor on).
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// set cursor on T6963C_Cursor(1);

T6963C_Cursor_Blink

Prototype	procedure T6963C_Cursor_Blink(n : byte);
Returns	Nothing.
Description	Enable/disable cursor blinking. Parameters : `n:` on/off parameter. Valid values: `0` (disable cursor blinking) and `1` (enable cursor blinking).
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	// enable cursor blinking T6963C_Cursor_Blink(1);

Library Example

The following drawing demo tests advanced routines of the T6963C Glcd library. Hardware configurations in this example are made for the T6963C 240x128 display, Easy8051B board and AT89S8253.

program T6963C_240x128;

uses __Lib_T6963C_Consts;

var

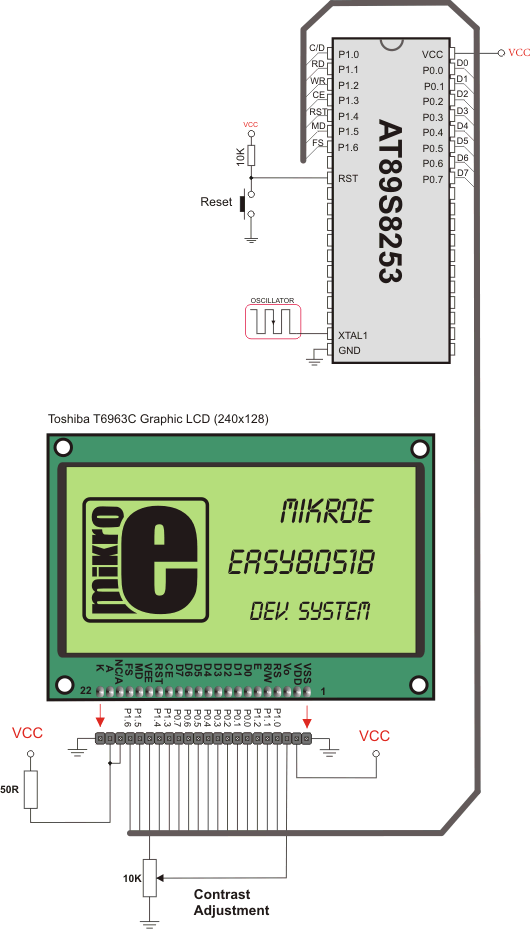

// T6963C module connections
  T6963C_dataPort : byte at P3;            // DATA port

  T6963C_ctrlwr  : sbit at P2_2_bit;       // WR write signal
  T6963C_ctrlrd  : sbit at P2_1_bit;       // RD read signal
  T6963C_ctrlcd  : sbit at P2_0_bit;       // CD command/data signal
  T6963C_ctrlrst : sbit at P2_4_bit;       // RST reset signal
// End T6963C module connections

  T6963C_ctrlce : sbit at P2_3_bit;        // CE signal
  T6963C_ctrlfs : sbit at P2_6_bit;        // FS signal
  T6963C_ctrlmd : sbit at P2_5_bit;        // MD signal


var   panel : byte;         // current panel
          i : word;         // general purpose register
       curs : byte;         // cursor visibility
      cposx,
      cposy : word;         // cursor x-y position
      txt, txt1 : string[29]; idata;

begin
  txt1 := ' EINSTEIN WOULD HAVE LIKED mE';
  txt  := ' GLCD LIBRARY DEMO, WELCOME !';

  {$DEFINE COMPLETE_EXAMPLE}// comment this line to make simpler/smaller example

  T6963C_ctrlce := 0;            // Enable T6963C
  T6963C_ctrlfs := 0;            // Font Select 8x8
  T6963C_ctrlmd := 0;            // Column number select


  // Initialize T6963C
  T6963C_init(240, 128, 8);

  {
  *
  * enable both graphics and text display at the same time
  *
  }
  T6963C_graphics(1);
  T6963C_text(1);

  panel := 0;
  i     := 0;
  curs  := 0;
  cposx := 0;
  cposy := 0;

  {
  *
  * text messages
  *
  }
  T6963C_write_text(txt,  0, 0, T6963C_ROM_MODE_XOR);
  T6963C_write_text(txt1, 0, 15, T6963C_ROM_MODE_XOR);

  {
  *
  * cursor
  *
  }
  T6963C_cursor_height(8);       // 8 pixel height
  T6963C_set_cursor(0, 0);       // move cursor to top left
  T6963C_cursor(0);              // cursor off

  {
  *
  * draw rectangles
  *
  }
  T6963C_rectangle(0,   0, 239, 127, T6963C_BLACK);
  T6963C_rectangle(20, 20, 219, 107, T6963C_BLACK);
  T6963C_rectangle(40, 40, 199,  87, T6963C_BLACK);
  T6963C_rectangle(60, 60, 179,  67, T6963C_BLACK);

  {
  *
  * draw a cross
  *
  }
  T6963C_line(0,   0, 239, 127, T6963C_BLACK);
  T6963C_line(0, 127, 239,   0, T6963C_BLACK);

  {
  *
  * draw solid boxes
  *
  }
  T6963C_box(0,   0, 239,   8, T6963C_BLACK);
  T6963C_box(0, 119, 239, 127, T6963C_BLACK);

  {$IFDEF COMPLETE_EXAMPLE}
  {
  *
  * draw circles
  *
  }
  T6963C_circle(120, 64, 10, T6963C_BLACK);
  T6963C_circle(120, 64, 30, T6963C_BLACK);
  T6963C_circle(120, 64, 50, T6963C_BLACK);
  T6963C_circle(120, 64, 70, T6963C_BLACK);
  T6963C_circle(120, 64, 90, T6963C_BLACK);
  T6963C_circle(120, 64, 110, T6963C_BLACK);
  T6963C_circle(120, 64, 130, T6963C_BLACK);

  T6963C_sprite(76, 4, @einstein_bmp, 88, 119);    // draw a sprite

  T6963C_setGrPanel(1);                            // select other graphic panel

  T6963C_Image(@mikroE_240x128_bmp);

  {$ENDIF}

  while TRUE do
    begin
      {*
       * if P2_0 is pressed, toggle the display between graphic panel 0 and graphic 1
       *}
        if(P1_0_bit = 0) then
          begin
            T6963C_graphics(1);
            T6963C_text(0);
            Delay_ms(300);
          end
      {$IFDEF COMPLETE_EXAMPLE}
      {*
       * if P2_1 is pressed, display only graphic panel
       *}
        else
          if(P1_1_bit = 0) then
            begin
              Inc(panel);
              panel := panel and 1;
              T6963C_displayGrPanel(panel);
              Delay_ms(300);
            end
      {$ENDIF}
      {*
       * if P2_2 is pressed, display only text panel
       *}
          else
            if(P1_2_bit = 0) then
              begin
                T6963C_graphics(0);
                T6963C_text(1);
                Delay_ms(300);
              end

      {*
       * if P2_3 is pressed, display text and graphic panels
       *}
          else
            if(P1_3_bit = 0) then
              begin
                T6963C_graphics(1);
                T6963C_text(1);
                Delay_ms(300);
              end

      {*
       * if P2_4 is pressed, change cursor
       *}
            else
              if(P1_4_bit = 0) then
                begin
                  Inc(curs);
                  if(curs = 3) then
                    curs := 0;
                  case curs of
                    0:
                        T6963C_cursor(0);

                    1:
                        begin
                          T6963C_cursor(1);
                          T6963C_cursor_blink(1);
                        end;

                    2:
                        begin
                          T6963C_cursor(1);
                          T6963C_cursor_blink(0);
                        end;
                  end;
                  Delay_ms(300);
                end;
      {*
       * move cursor, even if not visible
       *}
      Inc(cposx);
      if(cposx = T6963C_txtCols) then
        begin
          cposx := 0;
          Inc(cposy);
          if(cposy = (128 div T6963C_CHARACTER_HEIGHT)) then     // if y end
            cposy := 0;                                          // grafic height (128) div character height
        end;
      T6963C_set_cursor(cposx, cposy);
      Delay_ms(100);
  end;
end.

HW Connection

T6963C Glcd HW connection

Want more examples and libraries?
Find them on
