SPI Library

mikroPascal PRO for 8051 provides a library for comfortable with SPI work in Master mode. The 8051 MCU can easily communicate with other devices via SPI: A/D converters, D/A converters, MAX7219, LTC1290, etc.

Library Routines

SPIx_Init
SPIx_Init_Advanced
SPIx_Read
SPIx_Write
SPI_Set_Active

Generic Routines

SPI_Read
SPI_Write

Notes:

SPI routines require you to specify the module you want to use. To select the desired SPI, simply change the letter x in the prototype for a number from 1 to 2.
Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.
Some MCUs have multiple SPI modules. Switching between the SPI modules in the SPI library is done by the SPI_Set_Active function (SPI module has to be previously initialized).
Some of the MCUs do not support SPIx_Init_Advanced routine. Please, refer to the appropriate datasheet.

SPIx_Init

Prototype	// for ATMEL MCUs procedure SPIx_Init(); // for Silicon Laboratories MCUs procedure SPIx_Init(clock : dword);
Returns	Nothing.
Description	This routine configures and enables SPI module with the following settings: master mode clock idle low 8 bit data transfer most significant bit sent first serial output data changes on idle to active transition of clock state serial clock : - for ATMEL MCU's serial clock = Fosc/128 (Fosc/64 in x2 mode) - for Silicon Laboratories MCUs serial clock is acquired from the `clock` parameter
Requires	MCU must have SPI module.
Example	// Initialize the SPI module with default settings SPI1_Init(); // Initialize the SPI module with the baud rate of 100000 SPI1_Init(100000);

SPIx_Init_Advanced

Prototype

// for ATMEL MCUs
procedure SPIx_Init_Advanced(adv_setting : byte);

// for Silicon Laboratories MCUs
procedure SPIx_Init_Advanced(clock : dword, adv_setting : byte);

Returns

Nothing.

Description

This routine configures and enables the SPI module with the user defined settings.

Parameters :

baud_rate sets the desired SPI clock speed
adv_setting: SPI module configuration flags. Predefined library constants (see the table below) can be ORed to form appropriate configuration value.

Description	Predefined library const
SPI clock polarity:
`SPI clock idle level is low`	`_SPI_CLK_IDLE_LO`
`SPI clock idle level is high`	`_SPI_CLK_IDLE_HIGH`
SPI clock phase:
`Data transmitted on idle to active edge`	`_SPI_CLK_IDLE_2_ACTIVE`
`Data transmitted on active to idle edge`	`_SPI_CLK_ACTIVE_2_IDLE`
SPI clock speed:
`Sck = Fosc/1, Master mode`	`_SPI_FCY_DIV1`
`Sck = Fosc/2 (Fosc in x2 mode), Master mode`	`_SPI_FCY_DIV2`
`Sck = Fosc/4 (Fosc/2 in x2 mode), Master mode`	`_SPI_FCY_DIV4`
`Sck = Fosc/8 (Fosc/4 in x2 mode), Master mode`	`_SPI_FCY_DIV8`
`Sck = Fosc/16 (Fosc/8 in x2 mode), Master mode`	`_SPI_FCY_DIV16`
`Sck = Fosc/32 (Fosc/16 in x2 mode), Master mode`	`_SPI_FCY_DIV32`
`Sck = Fosc/64 (Fosc/32 in x2 mode), Master mode`	`_SPI_FCY_DIV64`
`Sck = Fosc/128 (Fosc/64 in x2 mode), Master mode`	`_SPI_FCY_DIV128`
Output mode:
`Output set as quasi-bidirectional (8051)`	`_SPI_OUTPUT_8051`
`Output set as push-pull`	`_SPI_OUTPUT_PUSH_PULL`
`Output set as open-drain`	`_SPI_OUTPUT_OPEN_DRAIN`

Notes:

Some MCUs do not support advanced configuration of the SPI module. Please consult appropriate datasheet.
Advanced polarity and phase settings are supported by all MCU's, while output modes and SPI clock speeds by ATMEL MCU's.
Bear in mind that not all of the SPI clock speeds are supported by all MCU's. Please, consult appropriate datasheet before using SPIx_Init_Advanced routine.

Requires

MCU must have SPI module.

Example

// SPI configuration for ATMEL MCU's: clock = Fosc/4 , clock IDLE state low, data transmitted at low to high clock edge and output mode 8051:
SPI1_Init_Advanced(_SPI_FCY_DIV4 or _SPI_CLK_IDLE_LO or _SPI_CLK_IDLE_2_ACTIVE or _SPI_OUTPUT_8051)

// SPI configuration for Silicon Laboratories MCU's: clock = 100000, clock IDLE state low and data transmitted at low to high clock edge:
SPI1_Init_Advanced(100000, _SPI_CLK_IDLE_LO or _SPI_CLK_IDLE_2_ACTIVE)

SPIx_Read

Prototype	function SPIx_Read(buffer : byte) : byte;
Returns	Received data.
Description	Reads one byte from the SPI bus. Parameters : `buffer:` dummy data for clock generation (see device Datasheet for SPI modules implementation details)
Requires	SPI module must be initialized before using this function. See SPIx_Init and SPIx_Init_Advanced routines.
Example	// read a byte from the SPI bus var take, dummy1 : byte; ... take := SPI1_Read(dummy1);

SPIx_Write

Prototype	procedure SPIx_Write(wrdata : byte);
Returns	Nothing.
Description	Writes byte via the SPI bus. Parameters : `wrdata:` data to be sent
Requires	SPI module must be initialized before using this function. See SPIx_Init and SPIx_Init_Advanced routines.
Example	// write a byte to the SPI bus var buffer : byte; ... SPI1_Write(buffer);

SPI_Set_Active

Prototype	procedure SPI_Set_Active(read_ptr : ^TSPI_Rd_Ptr; write_ptr : ^TSPI_Wr_Ptr);
Returns	Nothing.
Description	Sets the active SPI module which will be used by the SPI routines. Parameters : `read_ptr:` SPIx_Read handler `write_ptr:` SPIx_Write handler
Requires	Routine is available only for MCUs with two SPI modules. Used SPI module must be initialized before using this function. See the SPIx_Init and SPIx_Init_Advanced routines.
Example	SPI_Set_Active(@SPI2_Read, @SPI2_Write); // Sets the SPI2 module active

SPI_Read

Prototype	function SPI_Read(buffer : byte) : byte;
Returns	Received data.
Description	Reads one byte from the SPI bus. This is a generic routine which uses the active SPI module previously activated by the SPI_Set_Active routine. Parameters : `buffer:` dummy data for clock generation (see device Datasheet for SPI modules implementation details)
Requires	You need MCU with hardware integrated SPI. SPI must be initialized and communication established before using this function. See SPIx_Init_Advanced or SPIx_Init.
Example	var buffer, take : byte; begin take := SPI_Read(buffer); end.

SPI_Write

Prototype	procedure SPI_Write(data_out : byte);
Returns	Nothing.
Description	Writes byte via the SPI bus. This is a generic routine which uses the active SPI module previously activated by the SPI_Set_Active routine. Parameters : `data_out:` data to be sent.
Requires	You need MCU with hardware integrated SPI. SPI must be initialized and communication established before using this function. See SPIx_Init_Advanced or SPIx_Init.
Example	// write a byte to the SPI bus var buffer : byte; ... SPI_Write(buffer);

Library Example

The code demonstrates how to use SPI library functions for communication between SPI module of the MCU and Microchip's MCP4921 12-bit D/A converter

program DAC_Test;

// DAC module connections
var DAC_CS : sbit at P3_4_bit;
// End DAC module connections

var value : word;

// DAC increments (0..4095) --> output voltage (0..Vref)
procedure DAC_Output(valueDAC : word);
var temp : byte;
  begin
    DAC_CS := 0;                            // select MCP4921

    // Send High Byte
    temp := word(valueDAC shr 8) and 0x0F;  // Store valueDAC[11..8] to temp[3..0]
    temp := temp or 0x30;                   // Define DAC setting
                                            // see http://ww1.microchip.com/downloads/en/DeviceDoc/21897B.pdf#page=18&zoom=100
    SPI1_Write(temp);                       // Send high byte via SPI

    // Send Low Byte
    temp := valueDAC;                       // Store valueDAC[7..0] to temp[7..0]
    SPI1_Write(temp);                       // Send low byte via SPI

    DAC_CS := 1;                            // deselect MCP4921
  end;

begin

  DAC_CS := 1;                              // deselect MCP4921
  SPI1_Init();                              // Initialize SPI module

  value := 2048;                            // When program starts, DAC gives
                                            //   the output in the mid-range
  while TRUE do                             // Endless loop
    begin
      if ((P0_0_bit = 0) and (value < 4095)) then     // If P0.0 is connected to GND
        Inc(value)                                    //   increment value
      else
        begin
          if (( P0_1_bit = 0 ) and (value > 0)) then  // If P0.1 is connected to GND
            Dec(value);                               //   decrement value
        end;

      DAC_Output(value);                    // Perform output
      Delay_ms(1);                          // Slow down key repeat pace
    end;
end.

HW Connection

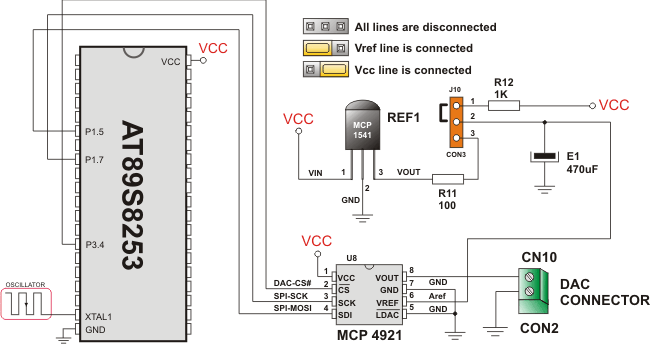

SPI connection

SPI HW connection
