Touch Panel TFT Library
  mikroBasic PRO for PIC Libraries > Hardware Libraries >


Touch Panel TFT Library

The mikroBasic PRO for PIC provides a library for working with Touch Panel for TFT.

Library Dependency Tree

Touch Panel TFT Library Dependency Tree

External dependencies of Touch Panel TFT Library

The following variables must be defined in all projects using Touch Panel TFT Library: Description : Example :
dim DriveX_Left as sbit sfr external DriveX_Left line. dim DriveX_Left as sbit at LATA0_bit
dim DriveX_Right as sbit sfr external DriveX_Right line. dim DriveX_Right as sbit at LATA1_bit
dim DriveY_Up as sbit sfr external DriveY_Up line. dim DriveY_Up as sbit at LATA2_bit
dim DriveY_Down as sbit sfr external DriveY_Down line. dim DriveY_Down as sbit at LATA3_bit
dim DriveX_Left_Direction as sbit sfr external Direction of the DriveA pin. dim DriveX_Left_Direction as sbit at TRISA0_bit
dim DriveX_Right_Direction as sbit sfr external Direction of the DriveB pin. dim DriveX_Right_Direction as sbit at TRISA1_bit
dim DriveY_Up_Direction as sbit sfr external Direction of the DriveA pin. dim DriveY_Up_Direction as sbit at TRISA2_bit
dim DriveY_Down_Direction as sbit sfr external Direction of the DriveB pin. dim DriveY_Down_Direction as sbit at TRISA3_bit

Library Routines

TP_TFT_Init

Prototype

sub procedure TP_TFT_Inits(dim display_width as word, dim display_height as word, dim readX_ChNo as byte, dim readY_ChNo as byte)
Description

Initialize TFT touch panel display. Default touch panel ADC threshold value is set to 900.
Parameters
  • display_width: set display width.
  • display_height: set display height.
  • readX_ChNo: read X coordinate from desired ADC channel.
  • readY_ChNo: read Y coordinate from desired ADC channel.
Returns

Nothing.
Requires

Before calling this function initialize ADC module.
Example
ADC1_Init()                      ' Initalize ADC module
TP_TFT_Init(320, 240, 13, 12)    ' Initialize touch panel, dimensions 320x240

TP_TFT_Rotate

Prototype

sub procedure TP_TFT_Rotate(dim rotate as byte)
Description

Rotates touch panel by 180 degrees.
Parameters
  • rotate: set display width. Valid values : 0 - don't rotate, 1 - rotate by 180 degrees.
Returns

Nothing.
Requires

Nothing.
Example
TP_TFT_Rotate(1)   ' rotate Touch Panel by 180 degrees
Notes

None.

TP_TFT_Set_ADC_Threshold

Prototype

sub procedure TP_TFT_Set_ADC_Threshold(dim threshold as word)
Description

Set custom ADC threshold value, call this function after TP_TFT_Init.
Parameters
  • threshold: custom ADC threshold value.
Returns

Nothing.
Requires

TP_TFT_Init has to be called before using this routine.
Example
TP_TFT_Set_ADC_Threshold(900)    ' Set touch panel ADC threshold
Notes

None.

TP_TFT_Press_Detect

Prototype

sub function TP_TFT_Press_Detect() as byte
Description

Detects if the touch panel has been pressed.
Parameters

None.
Returns
  • 1 - if touch panel is pressed.
  • 0 - otherwise.
Requires

Global variables :

  • DriveX_Left: DriveX_Left pin.
  • DriveX_Right: DriveX_Right pin.
  • DriveY_Up: DriveY_Up pin.
  • DriveY_Down: DriveY_Down pin.
  • DriveX_Left_Direction: Direction of DriveX_Left pin.
  • DriveX_Right_Direction: Direction of DriveX_Right pin.
  • DriveY_Up_Direction: Direction of DriveY_Up pin.
  • DriveY_Down_Direction: Direction of DriveY_Down pin.
must be defined before using this function.
Example
' Touch Panel module connections
dim DriveX_Left as sbit at LATA0_bit
    DriveX_Right as sbit at LATA1_bit
    DriveY_Up as sbit at LATA2_bit
    DriveY_Down as sbit at LATA3_bit
    DriveX_Left_Direction as sbit at TRISA0_bit
    DriveX_Right_Direction as sbit at TRISA1_bit
    DriveY_Up_Direction as sbit at TRISA2_bit
    DriveY_Down_Direction as sbit at TRISA3_bit
' End Touch Panel module connections

if (TP_TFT_Press_Detect() <> 0) then
  ...
end if
Notes

None.

TP_TFT_Get_Coordinates

Prototype

sub function TP_TFT_Get_Coordinates(dim byref x_coordinate as word, dim byref y_coordinate as word) as byte
Description

Get touch panel coordinates and store them in x_coordinate and y_coordinate parameters.
Parameters
  • x_coordinate: x coordinate of the place of touch.
  • y_coordinate: y coordinate of the place of touch.
Returns
  • 0 - if reading is within display dimension range.
  • 1 - if reading is out of display dimension range.
Requires

Nothing.
Example
if (TP_TFT_Get_Coordinates(@x_coord, @y_coord) = 0) then
  ...
end if
Notes

None.

TP_TFT_Calibrate_Min

Prototype

sub procedure TP_TFT_Calibrate_Min()
Description

Calibrate bottom left corner of the touch Panel.
Parameters

None.
Returns

Nothing.
Requires

Nothing.
Example
TP_TFT_Calibrate_Min()    ' Calibration of bottom left corner
Notes

None.

TP_TFT_Calibrate_Max

Prototype

sub procedure TP_TFT_Calibrate_Max()
Description

Calibrate upper right corner of the touch Panel.
Parameters

None.
Returns

Nothing.
Requires

Nothing.
Example
TP_TFT_Calibrate_Max()    ' Calibration of upper right corner
Notes

None.

TP_TFT_Get_Calibration_Consts

Prototype

sub procedure TP_TFT_Get_Calibration_Consts(dim byref x_min as word, dim byref x_max as word, dim byref y_min as word, dim byref y_max as word)
Description

Gets calibration constants after calibration is done and stores them in x_min, x_max, y_min and y_max parameters.
Parameters
  • x_min: x coordinate of the bottom left corner of the working area.
  • x_max: x coordinate of the upper right corner of the working area.
  • y_min: y coordinate of the bottom left corner of the working area.
  • y_max: y coordinate of the upper right corner of the working area.
Returns

Nothing.
Requires

Nothing.
Example
TP_TFT_Get_Calibration_Consts(@x_min, @y_min, @x_max, @y_max)    ' Get calibration constants
Notes

None.

TP_TFT_Set_Calibration_Consts

Prototype

sub procedure TP_TFT_Set_Calibration_Consts(dim x_min as word, dim x_max as word, dim y_min as word, dim y_max as word)
Description

Sets calibration constants.
Parameters
  • x_min: x coordinate of the bottom left corner of the working area.
  • x_max: x coordinate of the upper right corner of the working area.
  • y_min: y coordinate of the bottom left corner of the working area.
  • y_max: y coordinate of the upper right corner of the working area.
Returns

Nothing.
Requires

Nothing.
Example
TP_TFT_Set_Calibration_Consts(148, 3590, 519, 3370)    ' Set calibration constants
Notes

None.

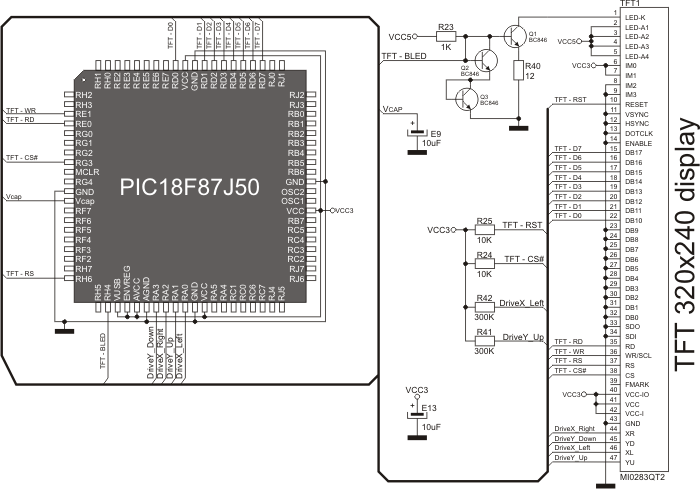

HW Connection

Touch Panel TFT HW connection

Touch Panel TFT HW connection
