TFT Display Library

TFT Library

Thin film transistor liquid crystal display (TFT-LCD) is a variant of liquid crystal display (LCD) which uses thin-film transistor (TFT) technology to improve image quality (e.g., addressability, contrast).
TFT LCD is one type of active matrix LCD, though all LCD-screens are based on TFT active matrix addressing.
TFT LCDs are used in television sets, computer monitors, mobile phones, handheld video game systems, personal digital assistants, navigation systems, projectors, etc.

The mikroBasic PRO for PIC provides a library for working with the following display controllers :

Himax HX8347G,
Solomon Systech SSD1963,
Renesas SP R61526,
Sitronix SST7715R.

Note :

When connecting the TFT display to the MCU use voltage translators from 5V to 3.3V (if MCU is a 5V device). In any other case you can damage the TFT!
Library works with PIC18 family only.
All display controllers are initialized with 65,536 colors (R(5),G(6),B(5)).

External dependencies of TFT Library

The following variables must be defined in all projects using TFT library:	Description :	Example :
`dim TFT_DataPort as byte sfr external`	TFT Data Port.	`dim TFT_DataPort as byte at LATD`
`dim TFT_DataPort_Direction as byte sfr external`	Direction of the TFT Data Port.	`dim TFT_DataPort_Direction as byte at TRISD`
`dim TFT_WR as byte sfr external`	Write signal.	`dim TFT_WR as sbit at LATE1_bit`
`dim TFT_RD as byte sfr external`	Read signal.	`dim TFT_RD as sbit at LATE0_bit`
`dim TFT_CS as byte sfr external`	Chip Select signal.	`dim TFT_CS as sbit at LATG3_bit`
`dim TFT_RS as byte sfr external`	Command/Register Select signal.	`dim TFT_RS as sbit at LATH6_bit`
`dim TFT_RST as byte sfr external`	Reset signal.	`dim TFT_RST as sbit at LATH4_bit`
`dim TFT_WR_Direction as byte sfr external`	Direction of the Write pin.	`dim TFT_WR_Direction as sbit at TRISE1_bit`
`dim TFT_RD_Direction as byte sfr external`	Direction of the Read pin.	`dim TFT_WR_Direction as sbit at TRISE0_bit`
`dim TFT_CS_Direction as byte sfr external`	Direction of the Chip Select pin.	`dim TFT_CS_Direction as sbit at TRISG3_bit`
`dim TFT_RS_Direction as byte sfr external`	Direction of the Register Select pin.	`dim TFT_RS_Direction as sbit at TRISH6_bit`
`dim TFT_RST_Direction as byte sfr external`	Direction of the Reset pin.	`dim TFT_RST_Direction as sbit at TRISH4_bit`

Library Routines

TFT_Init
TFT_Init_HX8347G
TFT_Init_SSD1963_8bit
TFT_Init_R61526
TFT_Init_SST7715R
TFT_Init_ILI9340_8bit
TFT_Init_ILI9481_8bit
TFT_Set_Index
TFT_Write_Command
TFT_Write_Data
TFT_Set_Reg
TFT_Set_Ext_Buffer
TFT_Set_Active
TFT_Set_Default_Mode
TFT_Set_Font
TFT_Set_Ext_Font
TFT_Write_Char
TFT_Write_Text
TFT_Write_Const_Text
TFT_Fill_Screen
TFT_Set_Pen
TFT_Set_Brush
TFT_Dot
TFT_Line
TFT_H_Line
TFT_V_Line
TFT_Rectangle
TFT_Rectangle_Round_Edges
TFT_Circle
TFT_Image
TFT_Ext_Image
TFT_Partial_Image
TFT_Ext_Partial_Image
TFT_Image_Jpeg
TFT_RGBToColor16bit
TFT_Color16bitToRGB
TFT_Rotate_180

TFT_Init

Prototype	sub procedure TFT_Init(dim display_width, display_height as word)
Returns	Nothing.
Description	Initializes HX8347-D display controller display in the 8-bit working mode. Parameters : `width:` width of the TFT panel `height:` height of the TFT panel
Requires	Global variables : `TFT_DataPort:` Data Port `TFT_WR:` Write signal pin `TFT_RD:` Read signal pin `TFT_CS:` Chip Select signal pin `TFT_RS:` Register Select signal pin `TFT_RST:` Reset signal pin `TFT_DataPort_Direction:` Direction of Data Port `TFT_WR_Direction:` Direction of Write signal pin `TFT_RD_Direction:` Direction of Read signal pin `TFT_CS_Direction:` Direction of Chip Select signal pin `TFT_RS_Direction:` Direction of Register Select signal pin `TFT_RST_Direction:` Direction of Reset signal pin must be defined before using this function.
Example	' TFT display connections dim TFT_DataPort as byte at LATD dim TFT_WR as sbit at LATE1_bit dim TFT_RD as sbit at LATE0_bit dim TFT_CS as sbit at LATG3_bit dim TFT_RS as sbit at LATH6_bit dim TFT_RST as sbit at LATH4_bit dim TFT_DataPort_Direction as byte at TRISD dim TFT_WR_Direction as sbit at TRISE1_bit dim TFT_RD_Direction as sbit at TRISE0_bit dim TFT_CS_Direction as sbit at TRISG3_bit dim TFT_RS_Direction as sbit at TRISH6_bit var TFT_RST_Direction as sbit at TRISH4_bit ' End of TFT display connections ' Initialize 240x320 TFT display TFT_Init(240, 320)

TFT_Init_HX8347G

Prototype	sub procedure TFT_Init_HX8347G(dim display_width, display_height as word)
Returns	Nothing.
Description	Initializes HX8347-G display controller display in the 8-bit working mode. Parameters : `width:` width of the TFT panel `height:` height of the TFT panel
Requires	Global variables : `TFT_DataPort:` Data Port `TFT_WR:` Write signal pin `TFT_RD:` Read signal pin `TFT_CS:` Chip Select signal pin `TFT_RS:` Register Select signal pin `TFT_RST:` Reset signal pin `TFT_DataPort_Direction:` Direction of Data Port `TFT_WR_Direction:` Direction of Write signal pin `TFT_RD_Direction:` Direction of Read signal pin `TFT_CS_Direction:` Direction of Chip Select signal pin `TFT_RS_Direction:` Direction of Register Select signal pin `TFT_RST_Direction:` Direction of Reset signal pin must be defined before using this function.
Example	' TFT display connections dim TFT_DataPort as byte at LATD dim TFT_WR as sbit at LATE1_bit dim TFT_RD as sbit at LATE0_bit dim TFT_CS as sbit at LATG3_bit dim TFT_RS as sbit at LATH6_bit dim TFT_RST as sbit at LATH4_bit dim TFT_DataPort_Direction as byte at TRISD dim TFT_WR_Direction as sbit at TRISE1_bit dim TFT_RD_Direction as sbit at TRISE0_bit dim TFT_CS_Direction as sbit at TRISG3_bit dim TFT_RS_Direction as sbit at TRISH6_bit var TFT_RST_Direction as sbit at TRISH4_bit ' End of TFT display connections ' Initialize 240x320 TFT display TFT_Init_HX8347G(240, 320)

TFT_Init_SSD1963_8bit

Prototype	sub procedure TFT_Init_SSD1963_8bit(dim display_width, display_height as word)
Returns	Nothing.
Description	Initializes SSD1963 display controller display in the 8-bit working mode. Parameters : `width:` width of the TFT panel `height:` height of the TFT panel
Requires	Global variables : `TFT_DataPort:` Data Port `TFT_WR:` Write signal pin `TFT_RD:` Read signal pin `TFT_CS:` Chip Select signal pin `TFT_RS:` Register Select signal pin `TFT_RST:` Reset signal pin `TFT_DataPort_Direction:` Direction of Data Port `TFT_WR_Direction:` Direction of Write signal pin `TFT_RD_Direction:` Direction of Read signal pin `TFT_CS_Direction:` Direction of Chip Select signal pin `TFT_RS_Direction:` Direction of Register Select signal pin `TFT_RST_Direction:` Direction of Reset signal pin must be defined before using this function.
Example	' TFT display connections dim TFT_DataPort as byte at LATD dim TFT_WR as sbit at LATE1_bit dim TFT_RD as sbit at LATE0_bit dim TFT_CS as sbit at LATG3_bit dim TFT_RS as sbit at LATH6_bit dim TFT_RST as sbit at LATH4_bit dim TFT_DataPort_Direction as byte at TRISD dim TFT_WR_Direction as sbit at TRISE1_bit dim TFT_RD_Direction as sbit at TRISE0_bit dim TFT_CS_Direction as sbit at TRISG3_bit dim TFT_RS_Direction as sbit at TRISH6_bit var TFT_RST_Direction as sbit at TRISH4_bit ' End of TFT display connections ' Initialize 240x320 TFT display TFT_Init_SSD1963_8bit(240, 320)

TFT_Init_R61526

Prototype	sub procedure TFT_Init_R61526(dim display_width, display_height as word)
Returns	Nothing.
Description	Initializes R61526 display controller display in the 8-bit working mode. Parameters : `width:` width of the TFT panel `height:` height of the TFT panel
Requires	Global variables : `TFT_DataPort:` Data Port `TFT_WR:` Write signal pin `TFT_RD:` Read signal pin `TFT_CS:` Chip Select signal pin `TFT_RS:` Register Select signal pin `TFT_RST:` Reset signal pin `TFT_DataPort_Direction:` Direction of Data Port `TFT_WR_Direction:` Direction of Write signal pin `TFT_RD_Direction:` Direction of Read signal pin `TFT_CS_Direction:` Direction of Chip Select signal pin `TFT_RS_Direction:` Direction of Register Select signal pin `TFT_RST_Direction:` Direction of Reset signal pin must be defined before using this function.
Example	' TFT display connections dim TFT_DataPort as byte at LATD dim TFT_WR as sbit at LATE1_bit dim TFT_RD as sbit at LATE0_bit dim TFT_CS as sbit at LATG3_bit dim TFT_RS as sbit at LATH6_bit dim TFT_RST as sbit at LATH4_bit dim TFT_DataPort_Direction as byte at TRISD dim TFT_WR_Direction as sbit at TRISE1_bit dim TFT_RD_Direction as sbit at TRISE0_bit dim TFT_CS_Direction as sbit at TRISG3_bit dim TFT_RS_Direction as sbit at TRISH6_bit var TFT_RST_Direction as sbit at TRISH4_bit ' End of TFT display connections ' Initialize 240x320 TFT display TFT_Init_R61526(240, 320)

TFT_Init_SST7715R

Prototype	sub procedure TFT_Init_SST7715R(dim display_width, display_height as word)
Returns	Nothing.
Description	Initializes SST7715R display controller display in the 8-bit working mode. Parameters : `width:` width of the TFT panel `height:` height of the TFT panel
Requires	Global variables : `TFT_DataPort:` Data Port `TFT_WR:` Write signal pin `TFT_RD:` Read signal pin `TFT_CS:` Chip Select signal pin `TFT_RS:` Register Select signal pin `TFT_RST:` Reset signal pin `TFT_DataPort_Direction:` Direction of Data Port `TFT_WR_Direction:` Direction of Write signal pin `TFT_RD_Direction:` Direction of Read signal pin `TFT_CS_Direction:` Direction of Chip Select signal pin `TFT_RS_Direction:` Direction of Register Select signal pin `TFT_RST_Direction:` Direction of Reset signal pin must be defined before using this function.
Example	' TFT display connections dim TFT_DataPort as byte at LATD dim TFT_WR as sbit at LATE1_bit dim TFT_RD as sbit at LATE0_bit dim TFT_CS as sbit at LATG3_bit dim TFT_RS as sbit at LATH6_bit dim TFT_RST as sbit at LATH4_bit dim TFT_DataPort_Direction as byte at TRISD dim TFT_WR_Direction as sbit at TRISE1_bit dim TFT_RD_Direction as sbit at TRISE0_bit dim TFT_CS_Direction as sbit at TRISG3_bit dim TFT_RS_Direction as sbit at TRISH6_bit var TFT_RST_Direction as sbit at TRISH4_bit ' End of TFT display connections ' Initialize 240x320 TFT display TFT_Init_SST7715R(240, 320)

TFT_Init_ILI9340_8bit

Prototype	procedure TFT_Init_ILI9340_8bit(dim display_width, display_height as word)
Returns	Nothing.
Description	Initializes ILI9340 display controller display in the 8-bit working mode. Parameters : `width:` width of the TFT panel `height:` height of the TFT panel
Requires	Global variables : `TFT_DataPort:` Data Port `TFT_WR:` Write signal pin `TFT_RD:` Read signal pin `TFT_CS:` Chip Select signal pin `TFT_RS:` Register Select signal pin `TFT_RST:` Reset signal pin `TFT_DataPort_Direction:` Direction of Data Port `TFT_WR_Direction:` Direction of Write signal pin `TFT_RD_Direction:` Direction of Read signal pin `TFT_CS_Direction:` Direction of Chip Select signal pin `TFT_RS_Direction:` Direction of Register Select signal pin `TFT_RST_Direction:` Direction of Reset signal pin must be defined before using this function.
Example	' TFT display connections dim TFT_DataPort as byte at LATD dim TFT_WR as sbit at LATE1_bit dim TFT_RD as sbit at LATE0_bit dim TFT_CS as sbit at LATG3_bit dim TFT_RS as sbit at LATH6_bit dim TFT_RST as sbit at LATH4_bit dim TFT_DataPort_Direction as byte at TRISD dim TFT_WR_Direction as sbit at TRISE1_bit dim TFT_RD_Direction as sbit at TRISE0_bit dim TFT_CS_Direction as sbit at TRISG3_bit dim TFT_RS_Direction as sbit at TRISH6_bit var TFT_RST_Direction as sbit at TRISH4_bit ' End of TFT display connections // Initialize 240x320 TFT display TFT_Init_ILI9340_8bit(240, 320);

TFT_Init_ILI9481_8bit

Prototype	procedure TFT_Init_ILI9481_8bit(dim display_width, display_height as word)
Returns	Nothing.
Description	Initializes ILI9481 display controller display in the 8-bit working mode. Parameters : `width:` width of the TFT panel `height:` height of the TFT panel
Requires	Global variables : `TFT_DataPort:` Data Port `TFT_WR:` Write signal pin `TFT_RD:` Read signal pin `TFT_CS:` Chip Select signal pin `TFT_RS:` Register Select signal pin `TFT_RST:` Reset signal pin `TFT_DataPort_Direction:` Direction of Data Port `TFT_WR_Direction:` Direction of Write signal pin `TFT_RD_Direction:` Direction of Read signal pin `TFT_CS_Direction:` Direction of Chip Select signal pin `TFT_RS_Direction:` Direction of Register Select signal pin `TFT_RST_Direction:` Direction of Reset signal pin must be defined before using this function.
Example	' TFT display connections dim TFT_DataPort as byte at LATD dim TFT_WR as sbit at LATE1_bit dim TFT_RD as sbit at LATE0_bit dim TFT_CS as sbit at LATG3_bit dim TFT_RS as sbit at LATH6_bit dim TFT_RST as sbit at LATH4_bit dim TFT_DataPort_Direction as byte at TRISD dim TFT_WR_Direction as sbit at TRISE1_bit dim TFT_RD_Direction as sbit at TRISE0_bit dim TFT_CS_Direction as sbit at TRISG3_bit dim TFT_RS_Direction as sbit at TRISH6_bit var TFT_RST_Direction as sbit at TRISH4_bit ' End of TFT display connections // Initialize 240x320 TFT display TFT_Init_ILI9481_8bit(240, 320);

TFT_Set_Index

Prototype	sub procedure TFT_Set_Index(dim index as byte)
Returns	Nothing.
Description	Accesses register space of the controller and sets the desired register. Parameters : `index:` desired register number.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	' Access register at the location 0x02 TFT_Set_Index(0x02)

TFT_Write_Command

Prototype	sub procedure TFT_Write_Command(dim cmd as byte)
Returns	Nothing.
Description	Accesses data space and writes a command. Parameters : `cmd:` command to be written.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	' Write a command TFT_Write_Command(0x02)

TFT_Write_Data

Prototype	sub procedure TFT_Write_Data(dim _data as word)
Returns	Nothing.
Description	Writes date into display memory. Parameters : `_data:`data to be written.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	' Send data TFT_Write_Data(0x02)

TFT_Set_Reg

Prototype	sub procedure TFT_Set_Reg(dim index, value as byte)
Returns	Nothing.
Description	Accesses register space of the controller and writes a value in the desired register. Parameters : `index:` desired register. `value:` value to be written.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	' 65K Color Selection TFT_Set_Reg(0x17, 0x05)

TFT_Set_Ext_Buffer

Prototype	sub procedure TFT_Set_Ext_Buffer(dim getExtDataPtr as ^TTFT_Get_Ext_Data_Ptr)
Returns	Nothing.
Description	Function sets pointer to the user function which manipulates the external resource. Parameters : `TTFT_Get_Ext_Data_Ptr` - pointer to the user function. User function prototype should be in the following format: `sub function External(dim offset as longword, dim count as word, dim byref num as word) as ^byte` Parameters used in the function have the following meaning : `offset` - offset from the beginning of the resource from where the data is requested. `count` - requested number of bytes. `num` - variable for holding the returned number of bytes (less or equal to the number of acquired bytes).
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Set_Ext_Buffer(@ReadExternalBuffer)

TFT_Set_Active

Prototype	sub procedure TFT_Set_Active(dim Set_Index_Ptr as ^TTFT_Set_Index_Ptr, dim Write_Command_Ptr as ^TTFT_Write_Command_Ptr, dim Write_Data_Ptr as ^TTFT_Write_Data_Ptr)
Returns	Nothing.
Description	This function sets appropriate pointers to a user-defined basic routines in order to enable multiple working modes. Parameters : `Set_Index_Ptr:` Set_Index handler. `Write_Command_Ptr:` _Write_Command handler. `Write_Data_Ptr:` Write_Data handler.
Requires	None.
Example	' Example of establishing 16-bit communication between TFT display and PORTD, PORTE of MCU : sub procedure Set_Index(dim index as byte) TFT_RS = 0 Lo(LATD) = index TFT_WR = 0 TFT_WR = 1 end sub sub procedure Write_Command(dim cmd as byte) TFT_RS = 1 Lo(LATD) = cmd TFT_WR = 0 TFT_WR = 1 end sub sub procedure Write_Data(dim _data as byte) TFT_RS = 1 Lo(LATE) = Hi(_data) Lo(LATD) = Lo(_data) TFT_WR = 0 TFT_WR = 1 end sub main : TRISE = 0 TRISD = 0 TFT_Set_Active(Set_Index,Write_Command,Write_Data) TFT_Init(320, 240) ..... end.

TFT_Set_Default_Mode

Prototype	sub procedure TFT_Set_Default_Mode()
Returns	Nothing.
Description	This sub procedure sets TFT in default working mode. Parameters : None.
Requires	None.
Example	TFT_Set_Default_Mode() TFT_Init(320, 240)

TFT_Set_Font

Prototype

sub procedure TFT_Set_Font(dim activeFont as ^far const byte, dim font_color as word, dim font_orientation as byte)

Returns

Nothing.

Description

Sets font, its color and font orientation.

Parameters :

activeFont: desired font. Currently, only TFT_defaultFont (Tahoma14x16) is supported.

font_color: sets font color :

Value Description

CL_AQUA Aqua color

CL_BLACK Black color

CL_BLUE Blue color

CL_FUCHSIA Fuchsia color

CL_GRAY Gray color

CL_GREEN Green color

CL_LIME Lime color

CL_MAROON Maroon color

CL_NAVY Navy color

CL_OLIVE Olive color

CL_PURPLE Purple color

CL_RED Red color

CL_SILVER Silver color

CL_TEAL Teal color

CL_WHITE White color

CL_YELLOW Yellow color

font_orientation: sets font orientation :

Value Description

FO_HORIZONTAL Horizontal orientation

FO_VERTICAL Vertical orientation

Requires

TFT module needs to be initialized. Please, see appropriate TFT initialization routine.

Example

TFT_Set_Font(@TFT_defaultFont, CL_BLACK, FO_HORIZONTAL)

TFT_Set_Ext_Font

Prototype

sub procedure TFT_Set_Ext_Font(dim activeFont as longword, dim font_color as word, dim font_orientation as byte)

Returns

Nothing.

Description

Sets font, its color and font orientation. Font is located in an external resource

Parameters :

activeFont: desired font. This parameter represents the address in the exteral resource from where the font data begins.

font_color: sets font color :

font_orientation: sets font orientation :

Value Description

FO_HORIZONTAL Horizontal orientation

FO_VERTICAL Vertical orientation

Requires

TFT module needs to be initialized. Please, see appropriate TFT initialization routine.

Example

TFT_Set_Ext_Font(173296,CL_BLACK,FO_HORIZONTAL)

TFT_Write_Char

Prototype	sub procedure TFT_Write_Char(dim ch, x, y as word)
Returns	Nothing.
Description	Writes a char on the TFT at coordinates (x, y). `c:` char to be written. `x:` char position on x-axis. `y:` char position on y-axis.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Write_Char("A",22,23)

TFT_Write_Text

Prototype	sub procedure TFT_Write_Text(dim byref text as string, dim x, y as word)
Returns	Nothing.
Description	Writes text on the TFT at coordinates (x, y). Parameters : `text:` text to be written. `x:` text position on x-axis. `y:` text position on y-axis.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Write_Text("TFT LIBRARY DEMO, WELCOME !", 0, 0)

TFT_Write_Const_Text

Prototype	sub procedure TFT_Write_Const_Text(dim text as ^byte, dim x, y as word)
Returns	Nothing.
Description	Writes text located in the program memory on the TFT at coordinates (x, y). Parameters : `text:` text to be written. `x:` text position on x-axis. `y:` text position on y-axis.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	const message = "mikroElektronika" ... TFT_Write_Const_Text(message, 0, 0)

TFT_Fill_Screen

Prototype

sub procedure TFT_Fill_Screen(dim color as word)

Returns

Nothing.

Description

Fills screen memory block with given color.

Parameters :

color: color to be filled :

Requires

TFT module needs to be initialized. Please, see appropriate TFT initialization routine.

Example

TFT_Fill_Screen(CL_BLACK)

TFT_Dot

Prototype

sub procedure TFT_Dot(dim x, y as integer, dim color as word)

Returns

Nothing.

Description

Draws a dot on the TFT at coordinates (x, y).

Parameters :

x: dot position on x-axis.
y: dot position on y-axis.

color: color parameter. Valid values :

Requires

TFT module needs to be initialized. Please, see appropriate TFT initialization routine.

Example

TFT_Dot(50, 50, CL_BLACK)

TFT_Set_Pen

Prototype

sub procedure TFT_Set_Pen(dim pen_color as word, dim pen_width as byte)

Returns

Nothing.

Description

Sets color and thickness parameter for drawing line, circle and rectangle elements.

Parameters :

pen_color: Sets color.

pen_width: sets thickness.

Requires

TFT module needs to be initialized. Please, see appropriate TFT initialization routine.

Example

TFT_Set_Pen(CL_BLACK, 10)

TFT_Set_Brush

Prototype

sub procedure TFT_Set_Brush(dim brush_enabled as byte, dim brush_color as word, dim gradient_enabled, gradient_orientation as byte, dim gradient_color_from, gradient_color_to as word)

Returns

Nothing.

Description

Sets color and gradient which will be used to fill circles or rectangles.

Parameters :

brush_enabled: enable brush fill.

Value Description

1 Enable brush fill.

0 Disable brush fill.

brush_color: set brush fill color.

gradient_enabled: enable gradient

Value Description

1 Enable gradient.

0 Disable gradient.

gradient_orientation: sets gradient orientation :

Value Description

LEFT_TO_RIGHT Left to right gradient orientation

TOP_TO_BOTTOM Top to bottom gradient orientation

gradient_color_from: sets the starting gradient color.

gradient_color_to: sets the ending gradient color.

Requires

TFT module needs to be initialized. Please, see appropriate TFT initialization routine.

Example

' Enable gradient from black to white color, left-right orientation
TFT_Set_Brush(0, 0, 1, LEFT_TO_RIGHT, CL_BLACK, CL_WHITE)

TFT_Line

Prototype	sub procedure TFT_Line(dim x1, y1, x2, y2 as integer)
Returns	Nothing.
Description	Draws a line from (x1, y1) to (x2, y2). Parameters : `x1:` x coordinate of the line start. `y1:` y coordinate of the line end. `x2:` x coordinate of the line start. `y2:` y coordinate of the line end.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Line(0, 0, 239, 127)

TFT_H_Line

Prototype	sub procedure TFT_H_Line(dim x_start, x_end, y_pos as integer)
Returns	Nothing.
Description	Draws a horizontal line on TFT. Parameters : `x_start:` x coordinate of the line start. `x_end:` x coordinate of the line end. `y_pos:` y coordinate of horizontal line.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	' Draw a horizontal line between dots (10,20) and (50,20) TFT_H_Line(10, 50, 20)

TFT_V_Line

Prototype	sub procedure TFT_V_Line(dim y_start, y_end, x_pos as integer)
Returns	Nothing.
Description	Draws a vertical line on TFT. Parameters : `y_start:` y coordinate of the line start. `y_end:` y coordinate of the line end. `x_pos:` x coordinate of vertical line.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	' Draw a vertical line between dots (10,5) and (10,25) TFT_V_Line(5, 25, 10)

TFT_Rectangle

Prototype	sub procedure TFT_Rectangle(dim x_upper_left, y_upper_left, x_bottom_right, y_bottom_right as integer)
Returns	Nothing.
Description	Draws a rectangle on TFT. Parameters : `x_upper_left:` x coordinate of the upper left rectangle corner. `y_upper_left:` y coordinate of the upper left rectangle corner. `x_bottom_right:` x coordinate of the lower right rectangle corner. `y_bottom_right:` y coordinate of the lower right rectangle corner.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Rectangle(20, 20, 219, 107)

TFT_Rectangle_Round_Edges

Prototype	sub procedure TFT_Rectangle_Round_Edges(dim x_upper_left, y_upper_left, x_bottom_right, y_bottom_right, round_radius as word)
Returns	Nothing.
Description	Draws a rounded edge rectangle on TFT. Parameters : `x_upper_left:` x coordinate of the upper left rectangle corner. `y_upper_left:` y coordinate of the upper left rectangle corner. `x_bottom_right:` x coordinate of the lower right rectangle corner. `y_bottom_right:` y coordinate of the lower right rectangle corner. `round_radius:` radius of the rounded edge.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Rectangle_Round_Edges(20, 20, 219, 107, 12)

TFT_Circle

Prototype	sub procedure TFT_Circle(dim x_center, y_center, radius as integer)
Returns	Nothing.
Description	Draws a circle on TFT. Parameters : `x:` x coordinate of the circle center. `y:` y coordinate of the circle center. `r:` radius size.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Circle(120, 64, 110)

TFT_Image

Prototype	sub procedure TFT_Image(dim left, top as word, dim image as far const byte, dim stretch as byte)
Returns	Nothing.
Description	Displays an image on a desired location. Parameters : `left:` position of the image's left edge. `top:`position of the image's top edge. `image:` image to be displayed. Bitmap array is located in code memory. `stretch:` stretches image by a given factor (if 2, it will double the image.).
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Image(0, 0, @image, 1)

TFT_Ext_Image

Prototype	sub procedure TFT_Ext_Image(dim left, top as word, dim image as longword, dim stretch as byte)
Returns	Nothing.
Description	Displays an image from an external resource on a desired address. Parameters : `left:` position of the image's left edge. `top:`position of the image's top edge. `image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins. `stretch:` stretches image by a given factor (if 2, it will double the image.).
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Ext_Image(0, 0, 153608, 1)

TFT_Partial_Image

Prototype	sub procedure TFT_Partial_Image(dim left, top, width, height as word, dim image as far const byte, dim stretch as byte)
Returns	Nothing.
Description	Displays a partial area of the image on a desired location. Parameters : `left:` left coordinate of the image. `top:` top coordinate of the image. `width:` desired image width. `height:` desired image height. `image:` image to be displayed. Bitmap array is located in code memory. `stretch:` stretches image by a given factor (if 2, it will double the image.).
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	' Draws a 10x15 part of the image starting from the upper left corner on the coordinate (10,12) TFT_PartialImage(10, 12, 10, 15, @image, 1)

TFT_Ext_Partial_Image

Prototype	sub procedure TFT_Ext_Partial_Image(dim left, top, width, height as word, dim image as longword, dim stretch as byte)
Returns	Nothing.
Description	Displays a partial area of the image, located on an external resource, on a desired location of the screen. Parameters : `left:` left coordinate of the image. `top:` top coordinate of the image. `width:` desired image width. `height:` desired image height. `image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins. `stretch:` stretches image by a given factor (if 2, it will double the image.).
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Ext_Partial_Image(159,0,160,120,0,1)

TFT_Image_Jpeg

Prototype	sub function TFT_Image_Jpeg(dim left, top as word, dim image as far const byte) as byte
Returns	`0` - if image is loaded and displayed successfully. `1` - if error occured.
Description	Displays a JPEG image on a desired location. Parameters : `left:` left coordinate of the image. `top:` top coordinate of the image. `image:` image to be displayed. Bitmap array is located in code memory.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Image_Jpeg(0, 0, @image)

TFT_RGBToColor16bit

Prototype	sub function TFT_RGBToColor16bit(dim rgb_red, rgb_green, rgb_blue as byte) as word
Returns	Returns a color value in the following bit-order : 5 bits red, 6 bits green and 5 bits blue color.
Description	Converts 5:6:5 RGB format into true color format. Parameters : `rgb_red:` red component of the image. `rgb_green:` green component of the image. `rgb_blue:` blue component of the image.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	color16 = TFT_RGBToColor16bit(150, 193, 65)

TFT_Color16bitToRGB

Prototype	sub procedure TFT_Color16bitToRGB(dim color as word, dim rgb_red, rgb_green, rgb_blue as ^byte)
Returns	Nothing.
Description	Converts true color into 5:6:5 RGB format. Parameters : `color:` true color to be converted. `rgb_red:` red component of the input color. `rgb_green:` green component of the input color. `rgb_blue:` blue component of the input color.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	TFT_Color16bitToRGB(start_color, @red_start, @green_start, @blue_start)

TFT_Rotate_180

Prototype	sub procedure TFT_Rotate_180(dim rotate as byte);
Returns	Nothing.
Description	Rotates the TFT display. Parameters : `rotate:` parameter for rotating display. Valid values : 0 - display will not be rotated. 1 - display will be rotated for 180 degrees.
Requires	TFT module needs to be initialized. Please, see appropriate TFT initialization routine.
Example	' Rotate TFT display for 180 degrees TFT_Rotate_180(1) ' Initialize TFT display TFT_Init(240, 320)

HW Connection

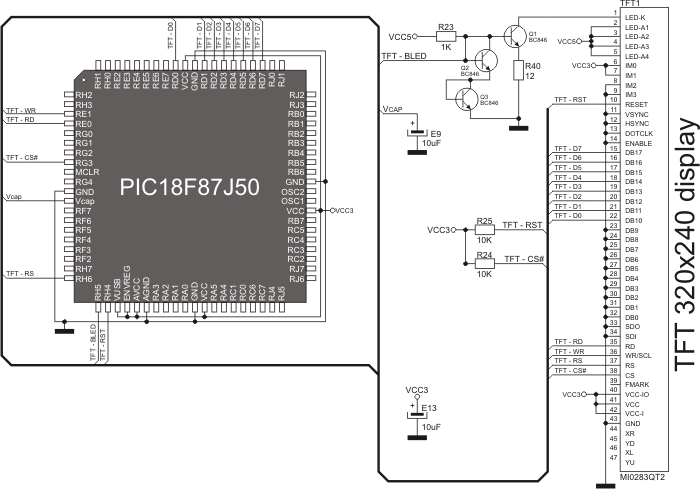

TFT HW connection

Want more examples and libraries?
Find them on
