Manchester Code Library

The mikroBasic PRO for PIC provides a library for handling Manchester coded signals. The Manchester code is a code in which data and clock signals are combined to form a single self-synchronizing data stream; each encoded bit contains a transition at the midpoint of a bit period, the direction of transition determines whether the bit is 0 or 1; the second half is the true bit value and the first half is the complement of the true bit value (as shown in the figure below).

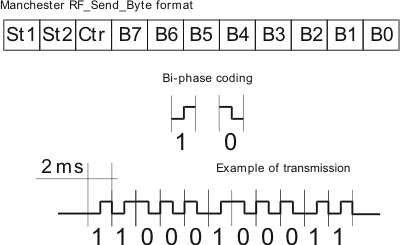

Manchester signal format

Important :

The Manchester receive routines are blocking calls (Man_Receive_Init and Man_Synchro). This means that MCU will wait until the task has been performed (e.g. byte is received, synchronization achieved, etc).
Manchester code library implements time-based activities, so interrupts need to be disabled when using it.

External dependencies of Manchester Code Library

The following variables must be defined in all projects using Manchester Code Library:	Description:	Example:
`dim MANRXPIN as sbit sfr external`	Receive line.	`dim MANRXPIN as sbit at RC0_bit`
`dim MANTXPIN as sbit sfr external`	Transmit line.	`dim MANTXPIN as sbit at RC1_bit`
`dim MANRXPIN_Direction as sbit sfr external`	Direction of the Receive pin.	`dim MANRXPIN_Direction as sbit at TRISC0_bit`
`dim MANTXPIN_Direction as sbit sfr external`	Direction of the Transmit pin.	`dim MANTXPIN_Direction as sbit at TRISC1_bit`

The following routines are for the internal use by compiler only:

Manchester_0
Manchester_1
Manchester_Out

Man_Receive_Init

Prototype	sub function Man_Receive_Init() as word
Returns	`0` - if initialization and synchronization were successful. `1` - upon unsuccessful synchronization. `255` - upon user abort.
Description	The function configures Receiver pin and performs synchronization procedure in order to retrieve baud rate out of the incoming signal. Note : In case of multiple persistent errors on reception, the user should call this routine once again or Man_Synchro routine to enable synchronization.
Requires	Global variables : `MANRXPIN` : Receive line `MANRXPIN_Direction` : Direction of the receive pin must be defined before using this function.
Example	' Initialize Receiver dim MANRXPIN as sbit at RC0_bit dim MANRXPIN_Direction as sbit at TRISC0_bit ... Man_Receive_Init()

Man_Receive

Prototype	sub function Man_Receive(dim byref error as byte) as byte
Returns	A byte read from the incoming signal.
Description	The function extracts one byte from incoming signal. Parameters : `error:` error flag. If signal format does not match the expected, the `error` flag will be set to non-zero.
Requires	To use this function, the user must prepare the MCU for receiving. See Man_Receive_Init.
Example	dim data, error as byte ... data = 0 error = 0 data = Man_Receive(&error) if (error <> 0) then ' error handling end if

Man_Send_Init

Prototype	sub procedure Man_Send_Init()
Returns	Nothing.
Description	The function configures Transmitter pin.
Requires	Global variables : `MANTXPIN` : Transmit line `MANTXPIN_Direction` : Direction of the transmit pin must be defined before using this function.
Example	' Initialize Transmitter: dim MANTXPIN as sbit at PORTC1_bit dim MANTXPIN_Direction as sbit at TRISC1_bit ... Man_Send_Init()

Man_Send

Prototype	sub procedure Man_Send(tr_data as byte)
Returns	Nothing.
Description	Sends one byte. Parameters : `tr_data:` data to be sent Note : Baud rate used is 500 bps.
Requires	To use this function, the user must prepare the MCU for sending. See Man_Send_Init.
Example	dim msg as byte ... Man_Send(msg)

Man_Synchro

Prototype	sub function Man_Synchro() as word
Returns	`255` - if synchronization was not successful. Half of the manchester bit length, given in multiples of 10us - upon successful synchronization.
Description	Measures half of the manchester bit length with 10us resolution.
Requires	To use this function, you must first prepare the MCU for receiving. See Man_Receive_Init.
Example	dim man__half_bit_len as word ... man__half_bit_len = Man_Synchro()

Man_Break

Prototype	sub procedure Man_Break()
Returns	Nothing.
Description	Man_Receive is blocking routine and it can block the program flow. Call this routine from interrupt to unblock the program execution. This mechanism is similar to WDT. Note : Interrupts should be disabled before using Manchester routines again (see note at the top of this page).
Requires	Nothing.
Example	dim data1, error_, counter as byte sub procedure interrupt() if (INTCON.T0IF <> 0) then if (counter >= 20) then Man_Break() counter = 0 ' reset counter end if else Inc(counter) ' increment counter INTCON.T0IF = 0 ' Clear Timer0 overflow interrupt flag end if end sub main: counter = 0 OPTION_REG = 0x04 ' TMR0 prescaler set to 1:32 ... Man_Receive_Init() ... ' try Man_Receive with blocking prevention mechanism INTCON.GIE = 1 ' Global interrupt enable INTCON.T0IE = 1 ' Enable Timer0 overflow interrupt data1 = Man_Receive(error_) INTCON.GIE = 0 ' Global interrupt disable end.

Library Example

The following code is code for the Manchester receiver, it shows how to use the Manchester Library for receiving data:

Copy Code To Clipboard

program Manchester_Receiver

' LCD module connections
dim LCD_RS as sbit at RB4_bit
    LCD_EN as sbit at RB5_bit
    LCD_D4 as sbit at RB0_bit
    LCD_D5 as sbit at RB1_bit
    LCD_D6 as sbit at RB2_bit
    LCD_D7 as sbit at RB3_bit

    LCD_RS_Direction as sbit at TRISB4_bit
    LCD_EN_Direction as sbit at TRISB5_bit
    LCD_D4_Direction as sbit at TRISB0_bit
    LCD_D5_Direction as sbit at TRISB1_bit
    LCD_D6_Direction as sbit at TRISB2_bit
    LCD_D7_Direction as sbit at TRISB3_bit
' End LCD module connections

' Manchester module connections
dim MANRXPIN as sbit at RC0_bit
    MANRXPIN_Direction as sbit at TRISC0_bit
    MANTXPIN as sbit at RC1_bit
    MANTXPIN_Direction as sbit at TRISC1_bit
' End Manchester module connections

dim error_flag, ErrorCount, counter, temp as byte

main:
  ErrorCount = 0
  counter = 0
  ANSEL  = 0                              ' Configure AN pins as digital I/O
  ANSELH = 0
  C1ON_bit = 0                            ' Disable comparators
  C2ON_bit = 0
  TRISC5_bit = 0
  Lcd_Init()                              ' Initialize LCD
  Lcd_Cmd(_LCD_CLEAR)                     ' Clear LCD display

  Man_Receive_Init()                      ' Initialize Receiver

  while TRUE                              ' Endless loop
      Lcd_Cmd(_LCD_FIRST_ROW)             ' Move cursor to the 1st row

      while TRUE                          ' Wait for the "start" byte
          temp = Man_Receive(error_flag)  ' Attempt byte receive
         if (temp = 0x0B) then            ' "Start" byte, see Transmitter example
            break                         ' We got the starting sequence
         end if
         if (error_flag <> 0) then        ' Exit so we do not loop forever
            break
         end if
        wend

      do
        temp = Man_Receive(error_flag)    ' Attempt byte receive
        if (error_flag <> 0) then         ' If error occured
            Lcd_Chr_CP("?")               ' Write question mark on LCD
            Inc(ErrorCount)               ' Update error counter
            if (ErrorCount > 20) then     ' In case of multiple errors
                temp = Man_Synchro()      ' Try to synchronize again
                'Man_Receive_Init()       ' Alternative, try to Initialize Receiver again
                ErrorCount = 0            ' Reset error counter
            end if
        else                              ' No error occured
          if (temp <> 0x0E) then          ' If "End" byte was received(see Transmitter example)
                                          ' do not write anymore received byte on Lcd
            Lcd_Chr_CP(temp)              ' else write character on Lcd
            Inc(counter)                  ' Counts how many chars have been written on Lcd
            if counter = 25 then          ' If there were more then 25 characters
                                          ' synchronization is off
              Lcd_Cmd(_LCD_CLEAR)         ' Clear the Lcd of garbled communication
              temp = Man_Synchro()        ' Try to synchronize again
            end if

          else
            counter = 0                   ' reset counter
          end if
          Delay_ms(25)
         end if
      loop until ( temp = 0x0E )
  wend                                    ' If "End" byte was received exit do loop
end.

The following code is code for the Manchester transmitter, it shows how to use the Manchester Library for transmitting data:

Copy Code To Clipboard

program Manchester_Transmitter

' Manchester module connections
dim MANRXPIN as sbit at RC0_bit
    MANRXPIN_Direction as sbit at TRISC0_bit
    MANTXPIN as sbit at RC1_bit
    MANTXPIN_Direction as sbit at TRISC1_bit
' End Manchester module connections

dim index, character as byte
    s1 as char[17]

main:
    s1 = "mikroElektronika"
    ANSEL  = 0                     ' Configure AN pins as digital I/O
    ANSELH = 0
    C1ON_bit = 0                   ' Disable comparators
    C2ON_bit = 0

    Man_Send_Init()                ' Initialize transmitter

    while TRUE                     ' Endless loop
        Man_Send(0x0B)             ' Send "start" byte
        Delay_ms(100)              ' Wait for a while

        character = s1[0]          ' Take first char from string
        index = 0                  ' Initialize index variable
        while (character <> 0)     ' String ends with zero
            Man_Send(character)    ' Send character
            Delay_ms(90)           ' Wait for a while
            Inc(index)             ' Increment index variable
            character = s1[index]  ' Take next char from string
        wend
        Man_Send(0x0E)             ' Send "end" byte
        Delay_ms(1000)
      wend
  end.

Connection Example

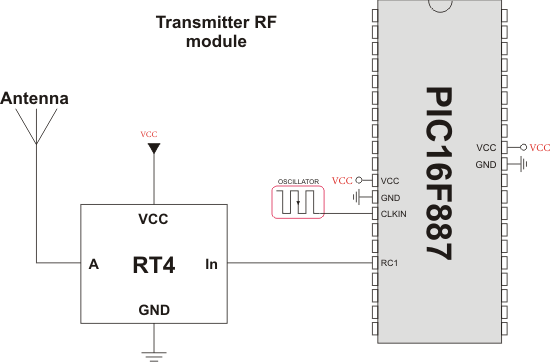

Simple Transmitter connection

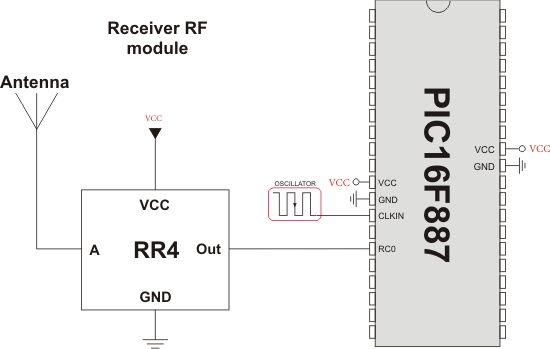

Simple Receiver connection
