Graphic Lcd Library

The mikroBasic PRO for PIC provides a library for operating Graphic Lcd 128x64 (with commonly used Samsung KS108/KS107 controller).

For creating a custom set of Glcd images use Glcd Bitmap Editor Tool.

Important : PIC16 family of MCUs does not support working with external resources.

Library Dependency Tree

External dependencies of Graphic Lcd Library

The following variables must be defined in all projects using Graphic Lcd Library:	Description:	Example:
`dim GLCD_DataPort as byte sfr external`	Glcd Data Port.	`dim GLCD_DataPort as byte at PORTD_bit`
`dim GLCD_CS1 as sbit sfr external`	Chip Select 1 line.	`dim GLCD_CS1 as sbit at RB0_bit`
`dim GLCD_CS2 as sbit sfr external`	Chip Select 2 line.	`dim GLCD_CS2 as sbit at RB1_bit`
`dim GLCD_RS as sbit sfr external`	Register select line.	`dim GLCD_RS as sbit at RB2_bit`
`dim GLCD_RW as sbit sfr external`	Read/Write line.	`dim GLCD_RW as sbit at RB3_bit`
`dim GLCD_EN as sbit sfr external`	Enable line.	`dim GLCD_EN as sbit at RB4_bit`
`dim GLCD_RST as sbit sfr external`	Reset line.	`dim GLCD_RST as sbit at RB5_bit`
`dim GLCD_CS1_Direction as sbit sfr external`	Direction of the Chip Select 1 pin.	`dim GLCD_CS1_Direction as sbit at TRISB0_bit`
`dim GLCD_CS2_Direction as sbit sfr external`	Direction of the Chip Select 2 pin.	`dim GLCD_CS2_Direction as sbit at TRISB1_bit`
`dim GLCD_RS_Direction as sbit sfr external`	Direction of the Register select pin.	`dim GLCD_RS_Direction as sbit at TRISB2_bit`
`dim GLCD_RW_Direction as sbit sfr external`	Direction of the Read/Write pin.	`dim GLCD_RW_Direction as sbit at TRISB3_bit`
`dim GLCD_EN_Direction as sbit sfr external`	Direction of the Enable pin.	`dim GLCD_EN_Direction as sbit at TRISB4_bit`
`dim GLCD_RST_Direction as sbit sfr external`	Direction of the Reset pin.	`dim GLCD_RST_Direction as sbit at TRISB5_bit`

Library Routines

Basic routines:

Glcd_Init
Glcd_Set_Side
Glcd_Set_X
Glcd_Set_Page
Glcd_Read_Data
Glcd_Write_Data
Glcd_Set_Ext_Buffer

Advanced routines:

Glcd_Fill
Glcd_Dot
Glcd_Line
Glcd_V_Line
Glcd_H_Line
Glcd_Rectangle
Glcd_Rectangle_Round_Edges
Glcd_Rectangle_Round_Edges_Fill
Glcd_Box
Glcd_Circle
Glcd_Circle_Fill
Glcd_Set_Font
Glcd_Set_Font_Adv
Glcd_Set_Ext_Font_Adv
Glcd_Write_Char
Glcd_Write_Char_Adv
Glcd_Write_Text
Glcd_Write_Text_Adv
Glcd_Write_Const_Text_Adv
Glcd_Image
Glcd_Ext_Image
Glcd_PartialImage
Glcd_Ext_PartialImage

Glcd_Init

Prototype	sub procedure Glcd_Init()
Returns	Nothing.
Description	Initializes the Glcd module. Each of the control lines is both port and pin configurable, while data lines must be on a single port (pins <0:7>).
Requires	Global variables : `GLCD_CS1 :` Chip select 1 signal pin `GLCD_CS2 :` Chip select 2 signal pin `GLCD_RS :` Register select signal pin `GLCD_RW :` Read/Write Signal pin `GLCD_EN :` Enable signal pin `GLCD_RST :` Reset signal pin `GLCD_DataPort :` Data port `GLCD_CS1_Direction :` Direction of the Chip select 1 pin `GLCD_CS2_Direction :` Direction of the Chip select 2 pin `GLCD_RS_Direction :` Direction of the Register select signal pin `GLCD_RW_Direction :` Direction of the Read/Write signal pin `GLCD_EN_Direction :` Direction of the Enable signal pin `GLCD_RST_Direction :` Direction of the Reset signal pin must be defined before using this function.
Example	' Glcd module connections dim GLCD_DataPort as byte at PORTD dim GLCD_CS1 as sbit at RB0_bit GLCD_CS2 as sbit at RB1_bit GLCD_RS as sbit at RB2_bit GLCD_RW as sbit at RB3_bit GLCD_EN as sbit at RB4_bit GLCD_RST as sbit at RB5_bit dim GLCD_CS1_Direction as sbit at TRISB0_bit GLCD_CS2_Direction as sbit at TRISB1_bit GLCD_RS_Direction as sbit at TRISB2_bit GLCD_RW_Direction as sbit at TRISB3_bit GLCD_EN_Direction as sbit at TRISB4_bit GLCD_RST_Direction as sbit at TRISB5_bit ' End Glcd module connections ... Glcd_Init()

Glcd_Set_Side

Prototype	`sub procedure` Glcd_Set_Side(dim x_pos as byte)
Returns	Nothing.
Description	Selects Glcd side. Refer to the Glcd datasheet for detailed explanation. Parameters : `x_pos:` position on x-axis. Valid values: 0..127 The parameter `x_pos` specifies the Glcd side: values from 0 to 63 specify the left side, values from 64 to 127 specify the right side. Note : For side, x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	The following two lines are equivalent, and both of them select the left side of Glcd: Glcd_Select_Side(0) Glcd_Select_Side(10)

Glcd_Set_X

Prototype	sub procedure Glcd_Set_X(dim x_pos as byte)
Returns	Nothing.
Description	Sets x-axis position to `x_pos` dots from the left border of Glcd within the selected side. Parameters : `x_pos:` position on x-axis. Valid values: 0..63 Note : For side, x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Set_X(25)

Glcd_Set_Page

Prototype	sub procedure Glcd_Set_Page(dim page as byte)
Returns	Nothing.
Description	Selects page of the Glcd. Parameters : `page:` page number. Valid values: 0..7 Note : For side, x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Set_Page(5)

Glcd_Read_Data

Prototype	sub function Glcd_Read_Data() as byte
Returns	One byte from Glcd memory.
Description	Reads data from from the current location of Glcd memory and moves to the next location.
Requires	Glcd needs to be initialized, see Glcd_Init routine. Glcd side, x-axis position and page should be set first. See functions Glcd_Set_Side, Glcd_Set_X, and Glcd_Set_Page.
Example	dim data as byte ... data = Glcd_Read_Data()

Glcd_Write_Data

Prototype	sub procedure Glcd_Write_Data(dim ddata as byte)
Returns	Nothing.
Description	Writes one byte to the current location in Glcd memory and moves to the next location. Parameters : `ddata:` data to be written
Requires	Glcd needs to be initialized, see Glcd_Init routine. Glcd side, x-axis position and page should be set first. See functions Glcd_Set_Side, Glcd_Set_X, and Glcd_Set_Page.
Example	dim data as byte ... Glcd_Write_Data(data)

Glcd_Set_Ext_Buffer

Prototype	sub procedure Glcd_Set_Ext_Buffer(dim getExtDataPtr as ^TGlcd_Get_Ext_Data_Ptr)
Returns	Nothing.
Description	Function sets pointer to the user function which manipulates the external resource. Parameters : `TGlcd_Get_Ext_Data_Ptr` - pointer to the user function. User function prototype should be in the following format: `sub function External(dim offset as longword, dim count as longword, dim byref num as longword) as ^byte` Parameters used in the function have the following meaning : `offset` - offset from the beginning of the resource from where the data is requested. `count` - requested number of bytes. `num` - variable for holding the returned number of bytes (less or equal to the number of acquired bytes).
Requires	Glcd module needs to be initialized. See the Glcd_Init routine.
Example	Glcd_Set_Ext_Buffer(@ReadExternalBuffer)

Glcd_Fill

Prototype	sub procedure Glcd_Fill(dim pattern as byte)
Returns	Nothing.
Description	Fills Glcd memory with the byte `pattern`. Parameters : `pattern:` byte to fill Glcd memory with To clear the Glcd screen, use `Glcd_Fill(0)`. To fill the screen completely, use `Glcd_Fill(0xFF)`.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Clear screen Glcd_Fill(0)

Glcd_Dot

Prototype	sub procedure Glcd_Dot(dim x_pos as byte, dim y_pos as byte, dim color as byte)
Returns	Nothing.
Description	Draws a dot on Glcd at coordinates (`x_pos`, `y_pos`). Parameters : `x_pos:` x position. Valid values: 0..127 `y_pos:` y position. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines a dot state: 0 clears dot, 1 puts a dot, and 2 inverts dot state. Note : For x and y axis layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Invert the dot in the upper left corner Glcd_Dot(0, 0, 2)

Glcd_Line

Prototype	sub procedure Glcd_Line(dim x_start as integer, dim y_start as integer, dim x_end as integer, dim y_end as integer, dim color as byte)
Returns	Nothing.
Description	Draws a line on Glcd. Parameters : `x_start:` x coordinate of the line start. Valid values: 0..127 `y_start:` y coordinate of the line start. Valid values: 0..63 `x_end:` x coordinate of the line end. Valid values: 0..127 `y_end:` y coordinate of the line end. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the line color: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a line between dots (0,0) and (20,30) Glcd_Line(0, 0, 20, 30, 1)

Glcd_V_Line

Prototype	sub procedure Glcd_V_Line(dim y_start as byte, dim y_end as byte, dim x_pos as byte, dim color as byte)
Returns	Nothing.
Description	Draws a vertical line on Glcd. Parameters : `y_start:` y coordinate of the line start. Valid values: 0..63 `y_end:` y coordinate of the line end. Valid values: 0..63 `x_pos:` x coordinate of vertical line. Valid values: 0..127 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the line color: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a vertical line between dots (10,5) and (10,25) Glcd_V_Line(5, 25, 10, 1)

Glcd_H_Line

Prototype	sub procedure Glcd_V_Line(dim x_start as byte, dim x_end as byte, dim y_pos as byte, dim color as byte)
Returns	Nothing.
Description	Draws a horizontal line on Glcd. Parameters : `x_start:` x coordinate of the line start. Valid values: 0..127 `x_end:` x coordinate of the line end. Valid values: 0..127 `y_pos:` y coordinate of horizontal line. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the line color: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a horizontal line between dots (10,20) and (50,20) Glcd_H_Line(10, 50, 20, 1)

Glcd_Rectangle

Prototype	sub procedure Glcd_Rectangle(dim x_upper_left as byte, dim y_upper_left as byte, dim x_bottom_right as byte, dim y_bottom_right as byte, dim color as byte)
Returns	Nothing.
Description	Draws a rectangle on Glcd. Parameters : `x_upper_left:` x coordinate of the upper left rectangle corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left rectangle corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right rectangle corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right rectangle corner. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the rectangle border: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a rectangle between dots (5,5) and (40,40) Glcd_Rectangle(5, 5, 40, 40, 1)

Glcd_Rectangle_Round_Edges

Prototype	sub procedure Glcd_Rectangle_Round_Edges(dim x_upper_left as byte, dim y_upper_left as byte, dim x_bottom_right as byte, dim y_bottom_right as byte, dim radius as byte, dim color as byte)
Returns	Nothing.
Description	Draws a rounded edge rectangle on Glcd. Parameters : `x_upper_left:` x coordinate of the upper left rectangle corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left rectangle corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right rectangle corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right rectangle corner. Valid values: 0..63 `round_radius:` radius of the rounded edge. `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the rectangle border: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a rounded edge rectangle between dots (5,5) and (40,40) with the radius of 12 Glcd_Rectangle_Round_Edges(5, 5, 40, 40, 12, 1)

Glcd_Rectangle_Round_Edges_Fill

Prototype	sub procedure Glcd_Rectangle_Round_Edges_Fill(dim x_upper_left as byte, dim y_upper_left as byte, dim x_bottom_right as byte, dim y_bottom_right as byte, dim radius as byte, dim color as byte)
Returns	Nothing.
Description	Draws a filled rounded edge rectangle on Glcd with color. Parameters : `x_upper_left:` x coordinate of the upper left rectangle corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left rectangle corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right rectangle corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right rectangle corner. Valid values: 0..63 `round_radius:` radius of the rounded edge. `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the rectangle border: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draws a filled rounded edge rectangle between dots (5,5) and (40,40) with the radius of 12 Glcd_Rectangle_Round_Edges_Fill(5, 5, 40, 40, 12, 1)

Glcd_Box

Prototype	sub procedure Glcd_Box(dim x_upper_left as byte, dim y_upper_left as byte, dim x_bottom_right as byte, dim y_bottom_right as byte, dim color as byte)
Returns	Nothing.
Description	Draws a box on Glcd. Parameters : `x_upper_left:` x coordinate of the upper left box corner. Valid values: 0..127 `y_upper_left:` y coordinate of the upper left box corner. Valid values: 0..63 `x_bottom_right:` x coordinate of the lower right box corner. Valid values: 0..127 `y_bottom_right:` y coordinate of the lower right box corner. Valid values: 0..63 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the box fill: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a box between dots (5,15) and (20,40) Glcd_Box(5, 15, 20, 40, 1)

Glcd_Circle

Prototype	sub procedure Glcd_Circle(dim x_center as integer, dim y_center as integer, dim radius as integer, dim color as byte)
Returns	Nothing.
Description	Draws a circle on Glcd. Parameters : `x_center:` x coordinate of the circle center. Valid values: 0..127 `y_center:` y coordinate of the circle center. Valid values: 0..63 `radius:` radius size `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the circle line: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a circle with center in (50,50) and radius=10 Glcd_Circle(50, 50, 10, 1)

Glcd_Circle_Fill

Prototype	sub procedure Glcd_Circle_Fill(dim x_center as integer, dim y_center as integer, dim radius as integer, dim color as byte)
Returns	Nothing.
Description	Draws a filled circle on Glcd. Parameters : `x_center:` x coordinate of the circle center. Valid values: 0..127 `y_center:` y coordinate of the circle center. Valid values: 0..63 `radius:` radius size `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the circle line: 0 white, 1 black, and 2 inverts each dot.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw a circle with center in (50,50) and radius=10 Glcd_Circle_Fill(50, 50, 10, 1)

Glcd_Set_Font

Prototype	sub procedure Glcd_Set_Font(dim byref const ActiveFont as ^byte, dim FontWidth as byte, dim FontHeight as byte, dim FontOffs as word)
Returns	Nothing.
Description	Sets font that will be used with Glcd_Write_Char and Glcd_Write_Text routines. Parameters : `activeFont:` font to be set. Needs to be formatted as an array of char `aFontWidth:` width of the font characters in dots. `aFontHeight:` height of the font characters in dots. `aFontOffs:` number that represents difference between the mikroBasic PRO for PIC character set and regular ASCII set (eg. if 'A' is 65 in ASCII character, and 'A' is 45 in the mikroBasic PRO for PIC character set, aFontOffs is 20). Demo fonts supplied with the library have an offset of 32, which means that they start with space. List of supported fonts: `Font_Glcd_System3x5` `Font_Glcd_System5x7` `Font_Glcd_5x7` `Font_Glcd_Character8x7` For the sake of the backward compatibility, these fonts are supported also: `System3x5` (equivalent to `Font_Glcd_System3x5`) `FontSystem5x7_v2` (equivalent to `Font_Glcd_System5x7`) `font5x7` (equivalent to `Font_Glcd_5x7`) `Character8x7` (equivalent to `Font_Glcd_Character8x7`)
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Use the custom 5x7 font "myfont" which starts with space (32): Glcd_Set_Font(myfont, 5, 7, 32)

Glcd_Set_Font_Adv

Prototype	sub procedure Glcd_Set_Font_Adv(dim activeFont as ^const byte, dim font_color as word, dim font_orientation as byte)
Description	Sets font that will be used with Glcd_Write_Char_Adv and Glcd_Write_Text_Adv routines.
Parameters	`activeFont:` font to be set. Needs to be formatted as an array of char. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Set_Font_Adv(@myfont, 0, 0)
Notes	None.

Glcd_Set_Ext_Font_Adv

Prototype	sub procedure Glcd_Set_Ext_Font_Adv(dim activeFont as longword, dim font_color as word, dim font_orientation as word)
Description	Sets font that will be used with Glcd_Write_Char_Adv and Glcd_Write_Text_Adv routines. Font is located in an external resource.
Parameters	`activeFont:` font to be set. This parameter represents the address in the exteral resource from where the font data begins. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Set_Ext_Font_Adv(173296, 5, 7, 32)
Notes	None.

Glcd_Write_Char

Prototype	sub procedure Glcd_Write_Char(dim chr as byte, dim x_pos as byte, dim page_num as byte, dim color as byte)
Returns	Nothing.
Description	Prints character on the Glcd. Parameters : `chr:` character to be written `x_pos:` character starting position on x-axis. Valid values: 0..(127-FontWidth) `page_num:` the number of the page on which character will be written. Valid values: 0..7 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the character: 0 white, 1 black, and 2 inverts each dot. Note : For x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized, see Glcd_Init routine. Use Glcd_Set_Font to specify the font for display; if no font is specified, then default `Font_Glcd_System5x7` font supplied with the library will be used.
Example	' Write character 'C' on the position 10 inside the page 2: Glcd_Write_Char("C", 10, 2, 1)

Glcd_Write_Char_Adv

Prototype	sub procedure Glcd_Write_Char_Adv(dim ch, x, y as word)
Returns	Nothing.
Description	Writes a char on the glcd at coordinates (x, y). `ch:` char to be written. `x:` char position on x-axis. `y:` char position on y-axis.
Requires	glcd module needs to be initialized. See the Glcd_Init routine.
Example	Glcd_Write_Char_Adv("A",22,23)

Glcd_Write_Text

Prototype	sub procedure Glcd_Write_Text(dim byref text as string, dim x_pos as byte, dim page_num as byte, dim color as byte)
Returns	Nothing.
Description	Prints text on Glcd. Parameters : `text:` text to be written `x_pos:` text starting position on x-axis. `page_num:` the number of the page on which text will be written. Valid values: 0..7 `color:` color parameter. Valid values: 0..2 The parameter `color` determines the color of the text: 0 white, 1 black, and 2 inverts each dot. Note : For x axis and page layout explanation see schematic at the bottom of this page.
Requires	Glcd needs to be initialized, see Glcd_Init routine. Use Glcd_Set_Font to specify the font for display; if no font is specified, then default `Font_Glcd_System5x7` font supplied with the library will be used.
Example	' Write text "Hello world!" on the position 10 inside the page 2: Glcd_Write_Text("Hello world!", 10, 2, 1)

Glcd_Write_Text_Adv

Prototype	sub procedure Glcd_Write_Text_Adv(dim byref text as string, dim x, y as word)
Returns	Nothing.
Description	Writes text on the glcd at coordinates (x, y). Parameters : `text:` text to be written. `x:` text position on x-axis. `y:` text position on y-axis.
Requires	Glcd module needs to be initialized. See the Glcd_Init routine.
Example	Glcd_Write_Text_Adv("GLCD LIBRARY DEMO, WELCOME !", 0, 0)

Glcd_Write_Const_Text_Adv

Prototype	sub procedure Glcd_Write_Const_Text_Adv(dim text as ^far const byte, dim x, y as word)
Returns	Nothing.
Description	Writes text located in the program memory on the glcd at coordinates (x, y). Parameters : `text:` text to be written. `x:` text position on x-axis. `y:` text position on y-axis.
Requires	Glcd module needs to be initialized. See the Glcd_Init routine.
Example	const ctext = "mikroElektronika" ... Glcd_Write_Const_Text_Adv(@ctext, 0, 0)

Glcd_Image

Prototype	sub procedure Glcd_Image(dim byref const image as ^byte)
Returns	Nothing.
Description	Displays bitmap on Glcd. Parameters : `image:` image to be displayed. Bitmap array must be located in code memory. Use the mikroBasic PRO for PIC integrated Glcd Bitmap Editor to convert image to a constant array suitable for displaying on Glcd.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draw image my_image on Glcd Glcd_Image(@my_image)

Glcd_Ext_Image

Prototype	sub procedure Glcd_Ext_Image(dim image as longword)
Description	Displays a bitmap from an external resource.
Parameters	`image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Ext_Image(153608)
Notes	Use the mikroBasic PRO for AVR integrated Glcd Bitmap Editor, Tools > Glcd Bitmap Editor, to convert image to a constant array suitable for displaying on Glcd.

Glcd_PartialImage

Prototype	sub procedure Glcd_PartialImage(dim x_left, y_top, width, height, picture_width, picture_height as word, const image as ^byte)
Returns	Nothing.
Description	Displays a partial area of the image on a desired location. Parameters : `x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. Bitmap array is located in code memory. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd. Note : Image dimension must match the display dimension.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	' Draws a 10x15 part of the image starting from the upper left corner on the coordinate (10,12). Original image size is 16x32. Glcd_PartialImage(10, 12, 10, 15, 16, 32, @image)

Glcd_Ext_PartialImage

Prototype	sub procedure Glcd_Ext_PartialImage(dim x_left, y_top, width, height, picture_width, picture_height as word, dim image as longword)
Description	Displays a partial area of the image, located on an external resource, on a desired location of the screen.
Parameters	`x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Glcd needs to be initialized, see Glcd_Init routine.
Example	Glcd_Ext_PartialImage(10, 12, 10, 15, 16, 32, 0)
Notes	Use the mikroBasic PRO for AVR integrated Glcd Bitmap Editor, Tools > Glcd Bitmap Editor, to convert image to a constant array suitable for displaying on Glcd.

Library Example

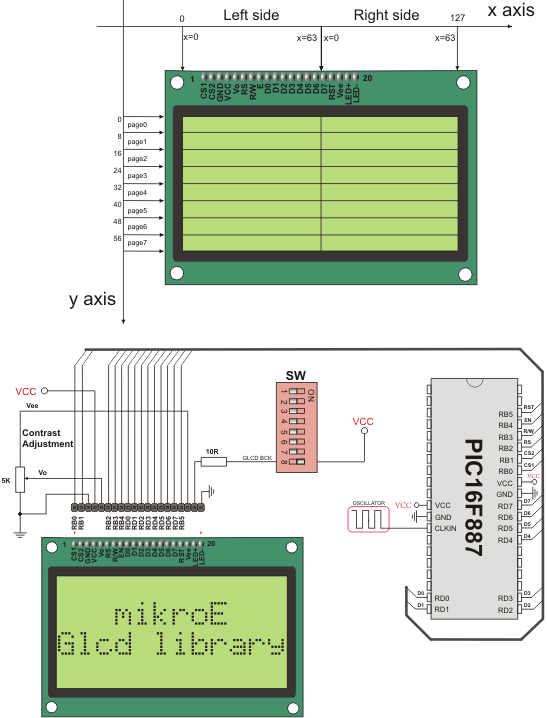

The following example demonstrates routines of the Glcd library: initialization, clear(pattern fill), image displaying, drawing lines, circles, boxes and rectangles, text displaying and handling.

Copy Code To Clipboard

program Glcd_Test

' Glcd module connections
dim GLCD_DataPort as byte at PORTD

dim GLCD_CS1 as sbit at RB0_bit
    GLCD_CS2 as sbit at RB1_bit
    GLCD_RS  as sbit at RB2_bit
    GLCD_RW  as sbit at RB3_bit
    GLCD_EN  as sbit at RB4_bit
    GLCD_RST as sbit at RB5_bit

dim GLCD_CS1_Direction as sbit at TRISB0_bit
    GLCD_CS2_Direction as sbit at TRISB1_bit
    GLCD_RS_Direction  as sbit at TRISB2_bit
    GLCD_RW_Direction  as sbit at TRISB3_bit
    GLCD_EN_Direction  as sbit at TRISB4_bit
    GLCD_RST_Direction as sbit at TRISB5_bit
' End Glcd module connections

dim counter as byte
    someText as char[18]

sub procedure Delay2S()                          ' 2 seconds delay sub function
  Delay_ms(2000)
end sub

main:
  ANSEL  = 0                                     ' Configure AN pins as digital I/O
  ANSELH = 0

  Glcd_Init()                                    ' Initialize Glcd
  Glcd_Fill(0x00)                                ' Clear Glcd

  while TRUE
    Glcd_Image(@truck_bmp)                       ' Draw image
    Delay2S() delay2S()

    Glcd_Fill(0x00)                              ' Clear Glcd

    Glcd_Box(62,40,124,63,1)                     ' Draw box
    Glcd_Rectangle(5,5,84,35,1)                  ' Draw rectangle
    Glcd_Line(0, 0, 127, 63, 1)                  ' Draw line
    Delay2S()
    counter = 5

    while (counter <= 59)                        ' Draw horizontal and vertical lines
      Delay_ms(250)
      Glcd_V_Line(2, 54, counter, 1)
      Glcd_H_Line(2, 120, counter, 1)
      Counter = counter + 5
    wend

    Delay2S()

    Glcd_Fill(0x00)                                     ' Clear Glcd

    Glcd_Set_Font(@Font_Glcd_Character8x7, 8, 7, 32)    ' Choose font "Character8x7"
    Glcd_Write_Text("mikroE", 1, 7, 2)                  ' Write string

    for counter = 1 to 10                               ' Draw circles
      Glcd_Circle(63,32, 3*counter, 1)
    next counter
    Delay2S()

    Glcd_Box(10,20, 70,63, 2)                           ' Draw box
    Delay2S()

    Glcd_Fill(0xFF)                                     ' Fill Glcd
    Glcd_Set_Font(@Font_Glcd_Character8x7, 8, 7, 32)    ' Change font
    someText = "8x7 Font"
    Glcd_Write_Text(someText, 5, 0, 2)                  ' Write string
    delay2S()

    Glcd_Set_Font(@Font_Glcd_System3x5, 3, 5, 32)       ' Change font
    someText = "3X5 CAPITALS ONLY"
    Glcd_Write_Text(someText, 60, 2, 2)                 ' Write string
    delay2S()

    Glcd_Set_Font(@Font_Glcd_5x7, 5, 7, 32)             ' Change font
    someText = "5x7 Font"
    Glcd_Write_Text(someText, 5, 4, 2)                  ' Write string
    delay2S()

    Glcd_Set_Font(@Font_Glcd_System5x7, 5, 7, 32)       ' Change font
    someText = "5x7 Font (v2)"
    Glcd_Write_Text(someText, 50, 6, 2)                 ' Write string
    delay2S()
  wend
end.

HW Connection

Glcd HW connection

Want more examples and libraries?
Find them on
