Port Expander Library

mikroBasic PRO for dsPIC30/33 and PIC24 provides a library for communication with the Microchip’s Port Expander MCP23S17 via SPI interface. Connections of the dsPIC30/33 and PIC24 MCU and MCP23S17 is given on the schematic at the bottom of this page.

Important :

The library uses the SPI module for communication. User must initialize the appropriate SPI module before using the Port Expander Library.
For MCUs with multiple SPI modules it is possible to initialize all of them and then switch by using the SPI_Set_Active() function. See the SPI Library functions.
Library does not use Port Expander interrupts.

Library Dependency Tree

External dependencies of Port Expander Library

The following variables must be defined in all projects using Port Expander Library:	Description :	Example :
`dim SPExpanderRST as sbit sfr external`	Reset line.	`dim SPExpanderRST as sbit at LATF0_bit`
`dim SPExpanderCS as sbit sfr external`	Chip Select line.	`dim SPExpanderCS as sbit at LATF1_bit`
`dim SPExpanderRST_Direction as sbit sfr external`	Direction of the Reset pin.	`dim SPExpanderRST_Direction as sbit at TRISF0_bit`
`dim SPExpanderCS_Direction as sbit sfr external`	Direction of the Chip Select pin.	`dim SPExpanderCS_Directions as sbit at TRISF1_bit`

Library Routines

Expander_Init
Expander_Init_Advanced
Expander_Read_Byte
Expander_Write_Byte
Expander_Read_PortA
Expander_Read_PortB
Expander_Read_PortAB
Expander_Write_PortA
Expander_Write_PortB
Expander_Write_PortAB
Expander_Set_DirectionPortA
Expander_Set_DirectionPortB
Expander_Set_DirectionPortAB
Expander_Set_PullUpsPortA
Expander_Set_PullUpsPortB
Expander_Set_PullUpsPortAB

Expander_Init

Prototype	sub procedure Expander_Init(dim ModuleAddress as byte)
Description	Initializes Port Expander using SPI communication. Port Expander module settings : hardware addressing enabled automatic address pointer incrementing disabled (byte mode) BANK_0 register adressing slew rate enabled
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page
Returns	Nothing.
Requires	Global variables : `SPExpanderCS`: Chip Select line `SPExpanderRST`: Reset line `SPExpanderCS_Direction`: Direction of the Chip Select pin `SPExpanderRST_Direction`: Direction of the Reset pin must be defined before using this function. SPI module needs to be initialized. See SPIx_Init and SPIx_Init_Advanced routines.
Example	' Port Expander module connections dim SPExpanderRST as sbit at LATF0_bit SPExpanderCS as sbit at LATF1_bit SPExpanderRST_Direction as sbit at TRISF0_bit SPExpanderCS_Direction as sbit at TRISF1_bit ' End Port Expander module connections ... SPI1_Init() ' initialize SPI module Expander_Init(0) ' initialize Port Expander
Notes	None.

Expander_Init_Advanced

Prototype	sub procedure Expander_Init_Advanced(dim byref rstPort, rstPin, haen as byte)p>
Description	Initializes Port Expander using SPI communication.
Parameters	`rstPort:` Port Expander's reset port `rstPin:` Port Expander's reset pin `haen:` Port Expander's hardware address
Returns	Nothing.
Requires	`SPExpanderCS`: Chip Select line `SPExpanderRST`: Reset line `SPExpanderCS_Direction`: Direction of the Chip Select pin `SPExpanderRST_Direction`: Direction of the Reset pin must be defined before using this function. SPI module needs to be initialized. See SPIx_Init and SPIx_Init_Advanced routines.
Example	' Port Expander module connections dim SPExpanderRST as sbit at LATF0_bit SPExpanderCS as sbit at LATF1_bit SPExpanderRST_Direction as sbit at TRISF0_bit SPExpanderCS_Direction as sbit at TRISF1_bit ' End Port Expander module connections ... ' If Port Expander Library uses SPI1 module SPI1_Init() ' initialize SPI module Expander_Init_Advanced(PORTB, 0, 0) ' initialize Port Expander
Notes	None.

Expander_Read_Byte

Prototype	sub function Expander_Read_Byte(dim ModuleAddress, RegAddress as byte) as byte
Description	The function reads byte from Port Expander.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `RegAddress:` Port Expander's internal register address
Returns	Byte read.
Requires	Port Expander must be initialized. See Expander_Init.
Example	' Read a byte from Port Expander's register dim read_data as byte ... read_data = Expander_Read_Byte(0,1)
Notes	None.

Expander_Write_Byte

Prototype	sub procedure Expander_Write_Byte(dim ModuleAddress, RegAddress, Data as byte)
Description	Routine writes a byte to Port Expander.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `RegAddress:` Port Expander's internal register address `Data:` data to be written
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init.
Example	' Write a byte to the Port Expander's register Expander_Write_Byte(0,1,$FF)
Notes	None.

Expander_Read_PortA

Prototype	sub function Expander_Read_PortA(dim ModuleAddress as byte) as byte
Description	The function reads byte from Port Expander's PortA.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page
Returns	Byte read.
Requires	Port Expander must be initialized. See Expander_Init. Port Expander's PortA should be configured as input. See Expander_Set_DirectionPortA and Expander_Set_DirectionPortAB routines.
Example	' Read a byte from Port Expander's PORTA dim read_data as byte ... Expander_Set_DirectionPortA(0,$FF) ' set expander's porta to be input ... read_data = Expander_Read_PortA(0)
Notes	None.

Expander_Read_PortB

Prototype	sub function Expander_Read_PortB(dim ModuleAddress as byte) as byte
Description	The function reads byte from Port Expander's PortB.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page
Returns	Byte read.
Requires	Port Expander must be initialized. See Expander_Init. Port Expander's PortB should be configured as input. See Expander_Set_DirectionPortB and Expander_Set_DirectionPortAB routines.
Example	' Read a byte from Port Expander's PORTB dim read_data as byte ... Expander_Set_DirectionPortB(0,$FF) ' set expander's portb to be input ... read_data = Expander_Read_PortB(0)
Notes	None.

Expander_Read_PortAB

Prototype	sub function Expander_Read_PortAB(dim ModuleAddress as byte) as word
Description	The function reads word from Port Expander's ports. PortA readings are in the higher byte of the result. PortB readings are in the lower byte of the result.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page
Returns	Word read.
Requires	Port Expander must be initialized. See Expander_Init. Port Expander's PortA and PortB should be configured as inputs. See Expander_Set_DirectionPortA, Expander_Set_DirectionPortB and Expander_Set_DirectionPortAB routines.
Example	' Read a byte from Port Expander's PORTA and PORTB dim read_data as word ... Expander_Set_DirectionPortAB(0,$FFFF) ' set expander's porta and portb to be input ... read_data s= Expander_Read_PortAB(0)
Notes	None.

Expander_Write_PortA

Prototype	sub procedure Expander_Write_PortA(dim ModuleAddress, Data as byte)
Description	The function writes byte to Port Expander's PortA.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `Data:` data to be written
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init. Port Expander's PortA should be configured as output. See Expander_Set_DirectionPortA and Expander_Set_DirectionPortAB routines.
Example	' Write a byte to Port Expander's PORTA ... Expander_Set_DirectionPortA(0,$00) ' set expander's porta to be output ... Expander_Write_PortA(0, $AA)
Notes	None.

Expander_Write_PortB

Prototype	sub procedure Expander_Write_PortB(dim ModuleAddress, Data as byte)
Description	The function writes byte to Port Expander's PortB.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `Data:` data to be written
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init. Port Expander's PortB should be configured as output. See Expander_Set_DirectionPortB and Expander_Set_DirectionPortAB routines.
Example	' Write a byte to Port Expander's PORTB ... Expander_Set_DirectionPortB(0,$00) ' set expander's portb to be output ... Expander_Write_PortB(0,$55)
Notes	None.

Expander_Write_PortAB

Prototype	sub procedure Expander_Write_PortAB(dim ModuleAddress as byte, dim Data as word)
Description	The function writes word to Port Expander's ports.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `Data:` data to be written. Data to be written to PortA are passed in `Data`'s higher byte. Data to be written to PortB are passed in `Data`'s lower byte
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init. Port Expander's PortA and PortB should be configured as outputs. See Expander_Set_DirectionPortA, Expander_Set_DirectionPortB and Expander_Set_DirectionPortAB routines.
Example	' Write a byte to Port Expander's PORTA and PORTB ... Expander_Set_DirectionPortAB(0, $0000) ' set expander's porta and portb to be output ... Expander_Write_PortAB(0, $AA55)
Notes	None.

Expander_Set_DirectionPortA

Prototype	sub procedure Expander_Set_DirectionPortA(dim ModuleAddress, Data as byte)
Description	The function sets Port Expander's PortA direction.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `Data:` data to be written to the PortA direction register. Each bit corresponds to the appropriate pin of the PortA register. Set bit designates corresponding pin as input. Cleared bit designates corresponding pin as output.
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init.
Example	' Set Port Expander's PORTA to be output Expander_Set_DirectionPortA(0,$00)
Notes	None.

Expander_Set_DirectionPortB

Prototype	sub procedure Expander_Set_DirectionPortB(dim ModuleAddress, Data as byte)
Description	The function sets Port Expander's PortB direction.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `Data:` data to be written to the PortB direction register. Each bit corresponds to the appropriate pin of the PortB register. Set bit designates corresponding pin as input. Cleared bit designates corresponding pin as output.
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init.
Example	' Set Port Expander's PORTB to be input Expander_Set_DirectionPortB(0,$FF)
Notes	None.

Expander_Set_DirectionPortAB

Prototype	sub procedure Expander_Set_DirectionPortAB(dim ModuleAddress, Direction as word)
Description	The function sets Port Expander's PortA and PortB direction.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `Direction:` data to be written to direction registers. Data to be written to the PortA direction register are passed in `Direction`'s higher byte. Data to be written to the PortB direction register are passed in `Direction`'s lower byte. Each bit corresponds to the appropriate pin of the PortA/PortB register. Set bit designates corresponding pin as input. Cleared bit designates corresponding pin as output.
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init.
Example	' Set Port Expander's PORTA to be output and PORTB to be input Expander_Set_DirectionPortAB(0,$00FF)
Notes	None.

Expander_Set_PullUpsPortA

Prototype	sub procedure Expander_Set_PullUpsPortA(dim ModuleAddress, Data as byte)
Description	The function sets Port Expander's PortA pull up/down resistors.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `Data:` data for choosing pull up/down resistors configuration. Each bit corresponds to the appropriate pin of the PortA register. Set bit enables pull-up for corresponding pin.
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init.
Example	' Set Port Expander's PORTA pull-up resistors Expander_Set_PullUpsPortA(0, $FF)
Notes	None.

Expander_Set_PullUpsPortB

Prototype	sub procedure Expander_Set_PullUpsPortB(dim ModuleAddress, Data as byte)
Description	The function sets Port Expander's PortB pull up/down resistors.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `Data:` data for choosing pull up/down resistors configuration. Each bit corresponds to the appropriate pin of the PortB register. Set bit enables pull-up for corresponding pin.
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init.
Example	' Set Port Expander's PORTB pull-up resistors Expander_Set_PullUpsPortB(0, 0xFF)
Notes	None.

Expander_Set_PullUpsPortAB

Prototype	sub procedure Expander_Set_PullUpsPortAB(dim ModuleAddress as byte, dim PullUps as word)
Description	The function sets Port Expander's PortA and PortB pull up/down resistors.
Parameters	`ModuleAddress:` Port Expander hardware address, see schematic at the bottom of this page `PullUps:` data for choosing pull up/down resistors configuration. PortA pull up/down resistors configuration is passed in `PullUps`'s higher byte. PortB pull up/down resistors configuration is passed in `PullUps`'s lower byte. Each bit corresponds to the appropriate pin of the PortA/PortB register. Set bit enables pull-up for corresponding pin.
Returns	Nothing.
Requires	Port Expander must be initialized. See Expander_Init.
Example	' Set Port Expander's PORTA and PORTB pull-up resistors Expander_Set_PullUpsPortAB(0, $FFFF)
Notes	None.

Library Example

The example demonstrates how to communicate with Port Expander MCP23S17. Note that Port Expander pins A2 A1 A0 are connected to GND so Port Expander Hardware Address is 0.

Copy Code To Clipboard

program PortExpander

' Port Expander module connections
dim SPExpanderRST as sbit at LATF0_bit
    SPExpanderCS  as sbit at LATF1_bit
    SPExpanderRST_Direction as sbit at TRISF0_bit
    SPExpanderCS_Direction  as sbit at TRISF1_bit
' End Port Expander module connections

dim counter as word

main:
  ADPCFG = 0xFFFF                       ' initialize AN pins as digital

  TRISB  = 0x00
  LATB   = 0xFF

  ' If Port Expander Library uses SPI1 module
  SPI1_Init()                            ' Initialize SPI module used with PortExpander

  Expander_Init(0)                       ' Initialize Port Expander

  Expander_Set_DirectionPortA(0, 0x00)   ' Set Expander's PORTA to be output

  Expander_Set_DirectionPortB(0,0xFF)    ' Set Expander's PORTB to be input
  Expander_Set_PullUpsPortB(0,0xFF)      ' Set pull-ups to all of the Expander's PORTB pins

  while ( TRUE )                         ' Endless loop
    Expander_Write_PortA(0, counter)     ' Write i to expander's PORTA
    Inc(counter)
    PORTB = Expander_Read_PortB(0)       ' Read expander's PORTB and write it to LEDs
    Delay_ms(100)
  wend

end.

HW Connection

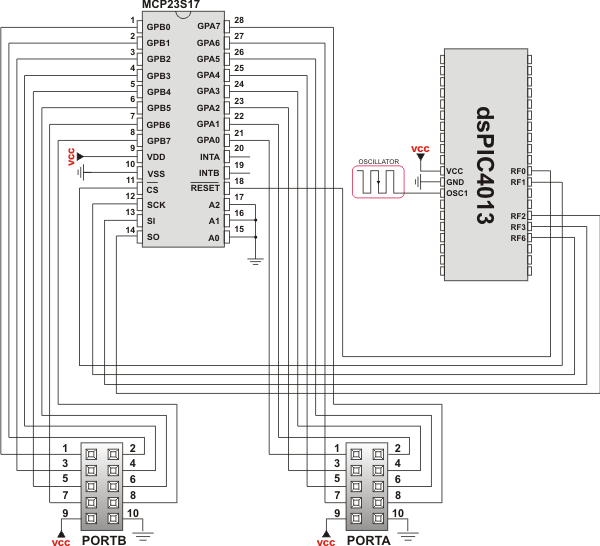

Port Expander HW connection
