T6963C Graphic Lcd Library

The mikroBasic PRO for AVR provides a library for working with Glcds based on TOSHIBA T6963C controller. The Toshiba T6963C is a very popular Lcd controller for the use in small graphics modules. It is capable of controlling displays with a resolution up to 240x128. Because of its low power and small outline it is most suitable for mobile applications such as PDAs, MP3 players or mobile measurement equipment. Although small, this contoller has a capability of displaying and merging text and graphics and it manages all the interfacing signals to the displays Row and Column drivers.

For creating a custom set of Glcd images use Glcd Bitmap Editor Tool.

Important :

ChipEnable(CE), FontSelect(FS) and Reverse(MD) have to be set to appropriate levels by the user outside of the T6963C_Init() function. See the Library Example code at the bottom of this page.
Glcd size based initialization routines can be found in setup library files located in the Uses folder.
The user must make sure that used MCU has appropriate ports and pins. If this is not the case the user should adjust initialization routines.

Some mikroElektronika's adapter boards have pinout different from T6369C datasheets. Appropriate relations between these labels are given in the table below :

Adapter Board	T6369C datasheet
RS	C/D
R/W	/RD
E	/WR

Library Dependency Tree

External dependencies of T6963C Graphic Lcd Library

The following variables must be defined in all projects using T6963C Graphic Lcd library:	Description :	Example :
`dim T6963C_dataPort as byte sfr external`	T6963C Data Port.	`dim T6963C_dataPort as byte at PORTD`
`dim T6963C_dataPort_Direction as byte sfr external`	Direction of the T6963C Data Port.	`dim T6963C_dataPort_Direction as byte at DDRD`
`dim T6963C_ctrlwr as sbit sfr external`	Write signal.	`dim T6963C_ctrlwr as sbit at PORTC2_bit`
`dim T6963C_ctrlrd as sbit sfr external`	Read signal.	`dim T6963C_ctrlrd as sbit at PORTC1_bit`
`dim T6963C_ctrlcd as sbit sfr external`	Command/Data signal.	`dim T6963C_ctrlcd as sbit at PORTC0_bit`
`dim T6963C_ctrlrst as sbit sfr external`	Reset signal.	`dim T6963C_ctrlrst as sbit at PORTC4_bit`
`dim T6963C_ctrlwr_Direction as sbit sfr external`	Direction of the Write pin.	`dim T6963C_ctrlwr_Direction as sbit at DDC2_bit`
`dim T6963C_ctrlrd_Direction as sbit sfr external`	Direction of the Read pin.	`dim T6963C_ctrlrd_Direction as sbit at DDC1_bit`
`dim T6963C_ctrlcd_Direction as sbit sfr external`	Direction of the Command/Data pin.	`dim T6963C_ctrlcd_Direction as sbit at DDC0_bit`
`dim T6963C_ctrlrst_Direction as sbit sfr external`	Direction of the Reset pin.	`dim T6963C_ctrlrst_Direction as sbit at DDC4_bit`

Library Routines

T6963C_Init
T6963C_WriteData
T6963C_WriteCommand
T6963C_SetPtr
T6963C_Set_Ext_Buffer
T6963C_WaitReady
T6963C_Fill
T6963C_Dot
T6963C_Set_Font_Adv
T6963C_Set_Font_Ext_Adv
T6963C_Write_Char
T6963C_Write_Char_Adv
T6963C_Write_Text
T6963C_Write_Text_Adv
T6963C_Write_Const_Text_Adv
T6963C_Line
T6963C_Rectangle
T6963C_rectangle_round_edges
T6963C_rectangle_round_edges_fill
T6963C_Box
T6963C_Circle
T6963C_circle_fill
T6963C_Image
T6963C_Ext_Image
T6963C_PartialImage
T6963C_Ext_PartialImage
T6963C_Sprite
T6963C_Set_Cursor
T6963C_DisplayGrPanel
T6963C_DisplayTxtPanel
T6963C_SetGrPanel
T6963C_SetTxtPanel
T6963C_PanelFill
T6963C_GrFill
T6963C_TxtFill
T6963C_Cursor_Height
T6963C_Graphics
T6963C_Text
T6963C_Cursor
T6963C_Cursor_Blink

T6963C_Init

Prototype	sub procedure T6963C_Init(dim width, height, fntW as byte)
Returns	Nothing.
Description	Initializes T6963C Graphic Lcd controller. Parameters : `width:` width of the Glcd panel `height:` height of the Glcd panel `fntW:` font width Display RAM organization: The library cuts the RAM into panels : a complete panel is one graphics panel followed by a text panel (see schematic below). schematic: +---------------------+ /\ + GRAPHICS PANEL #0 + \| + + \| + + \| + + \| +---------------------+ \| PANEL 0 + TEXT PANEL #0 + \| + + \/ +---------------------+ /\ + GRAPHICS PANEL #1 + \| + + \| + + \| + + \| +---------------------+ \| PANEL 1 + TEXT PANEL #1 + \| + + \| +---------------------+ \/
Requires	Global variables : `T6963C_dataPort:` Data Port `T6963C_ctrlwr:` Write signal pin `T6963C_ctrlrd:` Read signal pin `T6963C_ctrlcd:` Command/Data signal pin `T6963C_ctrlrst:` Reset signal pin `T6963C_dataPort_Direction:` Direction of Data Port `T6963C_ctrlwr_Direction:` Direction of Write signal pin `T6963C_ctrlrd_Direction:` Direction of Read signal pin `T6963C_ctrlcd_Direction:` Direction of Command/Data signal pin `T6963C_ctrlrst_Direction:` Direction of Reset signal pin must be defined before using this function.
Example	' T6963C module connections dim T6963C_dataPort as byte at PORTD dim T6963C_dataPort_Direction as byte at DDRC dim T6963C_ctrlwr as sbit at PORTC2_bit dim T6963C_ctrlrd as sbit at PORTC1_bit dim T6963C_ctrlcd as sbit at PORTC0_bit dim T6963C_ctrlrst as sbit at PORTC4_bit dim T6963C_ctrlwr_Direction as sbit at DDC2_bit dim T6963C_ctrlrd_Direction as sbit at DDC1_bit dim T6963C_ctrlcd_Direction as sbit at DDC0_bit dim T6963C_ctrlrst_Direction as sbit at DDC4_bit ' End of T6963C module connections ... ' init display for 240 pixel width, 128 pixel height and 8 bits character width T6963C_Init(240, 128, 8)

T6963C_WriteData

Prototype	sub procedure T6963C_WriteData(dim mydata as byte)
Returns	Nothing.
Description	Writes data to T6963C controller. Parameters : `mydata:` data to be written
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_WriteData(AddrL)

T6963C_WriteCommand

Prototype	sub procedure T6963C_WriteCommand(dim mydata as byte)
Returns	Nothing.
Description	Writes command to T6963C controller. Parameters : `mydata:` command to be written
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_WriteCommand(T6963C_CURSOR_POINTER_SET)

T6963C_SetPtr

Prototype	sub procedure T6963C_SetPtr(dim p as word, dim c as byte)
Returns	Nothing.
Description	Sets the memory pointer p for command c. Parameters : `p:` address where command should be written `c:` command to be written
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_SetPtr(T6963C_grHomeAddr + start, T6963C_ADDRESS_POINTER_SET)

T6963C_Set_Ext_Buffer

Prototype	sub procedure T6963C_Set_Ext_Buffer(dim getExtDataPtr as ^TT6963C_Get_Ext_Data_Ptr)
Returns	Nothing.
Description	Function sets pointer to the user function which manipulates the external resource. Parameters : `TT6963C_Get_Ext_Data_Ptr` - pointer to the user function. User function prototype should be in the following format: `sub function External(dim offset as longword, dim count as longword, dim byref num as longword) as ^byte` Parameters used in the function have the following meaning : `offset` - offset from the beginning of the resource from where the data is requested. `count` - requested number of bytes. `num` - variable for holding the returned number of bytes (less or equal to the number of acquired bytes).
Requires	Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Set_Ext_Buffer(@ReadExternalBuffer)

T6963C_WaitReady

Prototype	sub procedure T6963C_WaitReady()
Returns	Nothing.
Description	Pools the status byte, and loops until Toshiba Glcd module is ready.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_WaitReady()

T6963C_Fill

Prototype	sub procedure T6963C_Fill(dim v as byte, dim start, len as word)
Returns	Nothing.
Description	Fills controller memory block with given byte. Parameters : `v:` byte to be written `start:` starting address of the memory block `len:` length of the memory block in bytes
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Fill(0x33,0x00FF,0x000F)

T6963C_Dot

Prototype	sub procedure T6963C_Dot(dim x, y as integer, dim color as byte)
Returns	Nothing.
Description	Draws a dot in the current graphic panel of Glcd at coordinates (x, y). Parameters : `x:` dot position on x-axis `y:` dot position on y-axis `color:` color parameter. Valid values: T6963C_BLACK, T6963C_WHITE and T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Dot(x0, y0, T6963C_WHITE)

T6963C_Set_Font_Adv

Prototype	sub procedure T6963C_Set_Font_Adv(dim activeFont as ^far const byte, dim font_color as word, dim font_orientation as byte)
Description	Sets font that will be used with T6963C_Write_Char_Adv and T6963C_Write_Text_Adv routines.
Parameters	`activeFont:` font to be set. Needs to be formatted as an array of char. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Glcd needs to be initialized, see T6963C_Init routine.
Example	T6963C_Set_Font_Adv(@myfont, 1, 0)
Notes	None.

T6963C_Set_Ext_Font_Adv

Prototype	sub procedure T6963C_Set_Ext_Font_Adv(dim activeFont as longword, dim font_color as word, dim font_orientation as word)
Description	Sets font that will be used with T6963C_Write_Char_Adv and T6963C_Write_Text_Adv routines. Font is located in an external resource.
Parameters	`activeFont:` font to be set. This parameter represents the address in the exteral resource from where the font data begins. `font_color:` sets font color. `font_orientation:` sets font orientation.
Returns	Nothing.
Requires	Glcd needs to be initialized, see T6963C_Init routine.
Example	T6963C_Set_Ext_Font_Adv(173296, 5, 7, 32)
Notes	None.

T6963C_Write_Char

Prototype	sub procedure T6963C_Write_Char(dim c, x, y, mode as byte)
Returns	Nothing.
Description	Writes a char in the current text panel of Glcd at coordinates (x, y). Parameters : `c:` char to be written `x:` char position on x-axis `y:` char position on y-axis `mode:` mode parameter. Valid values: `T6963C_ROM_MODE_OR`, `T6963C_ROM_MODE_XOR`, `T6963C_ROM_MODE_AND` and `T6963C_ROM_MODE_TEXT` Mode parameter explanation: `T6963C_ROM_MODE_OR` Mode: In the OR-Mode, text and graphics can be displayed and the data is logically "OR-ed". This is the most common way of combining text and graphics for example labels on buttons. `T6963C_ROM_MODE_XOR` Mode: In this mode, the text and graphics data are combined via the logical "exclusive OR". This can be useful to display text in the negative mode, i.e. white text on black background. `T6963C_ROM_MODE_AND` Mode: The text and graphic data shown on display are combined via the logical "AND function". `T6963C_ROM_MODE_TEXT` Mode: This option is only available when displaying just a text. The Text Attribute values are stored in the graphic area of display memory. For more details see the T6963C datasheet.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Write_Char("A",22,23,T6963C_ROM_MODE_AND)

T6963C_write_char_adv

Prototype	sub procedure T6963C_write_char_adv(dim ch, x, y as word)
Description	Writes a char in the current text panel of Glcd at coordinates (x, y).
Parameters	`c:` char to be written `x:` char position on x-axis `y:` char position on y-axis
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_init routine.
Example	T6963C_write_char_adv("A",22,23)
Notes	None.

T6963C_Write_Text

Prototype	sub procedure T6963C_Write_Text(dim byref str as string, dim x, y, mode as byte)
Returns	Nothing.
Description	Writes text in the current text panel of Glcd at coordinates (x, y). Parameters : `str:` text to be written `x:` text position on x-axis `y:` text position on y-axis `mode:` mode parameter. Valid values: `T6963C_ROM_MODE_OR`, `T6963C_ROM_MODE_XOR`, `T6963C_ROM_MODE_AND` and `T6963C_ROM_MODE_TEXT` Mode parameter explanation: `T6963C_ROM_MODE_OR` Mode: In the OR-Mode, text and graphics can be displayed and the data is logically "OR-ed". This is the most common way of combining text and graphics for example labels on buttons. `T6963C_ROM_MODE_XOR` Mode: In this mode, the text and graphics data are combined via the logical "exclusive OR". This can be useful to display text in the negative mode, i.e. white text on black background. `T6963C_ROM_MODE_AND` Mode: The text and graphic data shown on display are combined via the logical "AND function". `T6963C_ROM_MODE_TEXT` Mode: This option is only available when displaying just a text. The Text Attribute values are stored in the graphic area of display memory. For more details see the T6963C datasheet.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Write_Text(" GLCD LIBRARY DEMO, WELCOME !", 0, 0, T6963C_ROM_MODE_XOR)

T6963C_Write_Text_Adv

Prototype	sub procedure T6963C_Write_Text_Adv(dim byref text as string, dim x, y as word)
Description	Writes text in the current text panel of Glcd at coordinates (x, y).
Parameters	`str:` text to be written `x:` text position on x-axis `y:` text position on y-axis
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_init routine.
Example	T6963C_Write_Text_Adv("Glcd LIBRARY DEMO, WELCOME !", 0, 0)
Notes	None.

T6963C_Write_Const_Text_Adv

Prototype	sub procedure SPI_T6963C_Write_Const_Text_Adv(dim text as ^far const byte, dim x, y as word)
Description	Writes text located in the program memory on the glcd at coordinates (x, y).
Parameters	`str:` text to be written `x:` text position on x-axis `y:` text position on y-axis
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_init routine.
Example	const ctext = "mikroElektronika" ... SPI_T6963C_Write_Const_Text_Adv(@ctext, 0, 0)
Notes	None.

T6963C_Line

Prototype	sub procedure T6963C_Line(dim x0, y0, x1, y1 as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a line from (x0, y0) to (x1, y1). Parameters : `x0:` x coordinate of the line start `y0:` y coordinate of the line end `x1:` x coordinate of the line start `y1:` y coordinate of the line end `pcolor:` color parameter. Valid values: T6963C_BLACK, T6963C_WHITE and T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Line(0, 0, 239, 127, T6963C_WHITE)

T6963C_Rectangle

Prototype	sub procedure T6963C_Rectangle(dim x0, y0, x1, y1 as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a rectangle on Glcd. Parameters : `x0:` x coordinate of the upper left rectangle corner `y0:` y coordinate of the upper left rectangle corner `x1:` x coordinate of the lower right rectangle corner `y1:` y coordinate of the lower right rectangle corner `pcolor:` color parameter. Valid values: T6963C_BLACK, T6963C_WHITE and T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Rectangle(20, 20, 219, 107, T6963C_WHITE)

T6963C_rectangle_round_edges

Prototype	sub procedure T6963C_rectangle_round_edges(dim x0, y0, x1, y1, radius as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a rounded edge rectangle on Glcd. Parameters : `x0:` x coordinate of the upper left rectangle corner `y0:` y coordinate of the upper left rectangle corner `x1:` x coordinate of the lower right rectangle corner `y1:` y coordinate of the lower right rectangle corner `round_radius:` radius of the rounded edge. `pcolor:` color parameter. Valid values: T6963C_BLACK, T6963C_WHITE and T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_rectangle_round_edges(20, 20, 219, 107, 12, T6963C_WHITE)

T6963C_rectangle_round_edges_fill

Prototype	sub procedure T6963C_rectangle_round_edges_fill(dim x0, y0, x1, y1, radius as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a filled rounded edge rectangle on Glcd. Parameters : `x0:` x coordinate of the upper left rectangle corner `y0:` y coordinate of the upper left rectangle corner `x1:` x coordinate of the lower right rectangle corner `y1:` y coordinate of the lower right rectangle corner `round_radius:` radius of the rounded edge `pcolor:` color parameter. Valid values: T6963C_BLACK, T6963C_WHITE and T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_rectangle_round_edges_fill(20, 20, 219, 107, 12, T6963C_WHITE)

T6963C_Box

Prototype	sub procedure T6963C_Box(dim x0, y0, x1, y1 as integer, dim pcolor as byte)
Returns	Nothing.
Description	Draws a box on Glcd Parameters : `x0:` x coordinate of the upper left box corner `y0:` y coordinate of the upper left box corner `x1:` x coordinate of the lower right box corner `y1:` y coordinate of the lower right box corner `pcolor:` color parameter. Valid values: T6963C_BLACK, T6963C_WHITE and T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Box(0, 119, 239, 127, T6963C_WHITE)

T6963C_Circle

Prototype	sub procedure T6963C_Circle(dim x, y as integer, dim r as longint, dim pcolor as byte)
Returns	Nothing.
Description	Draws a circle on Glcd. Parameters : `x:` x coordinate of the circle center `y:` y coordinate of the circle center `r:` radius size `pcolor:` color parameter. Valid values: T6963C_BLACK, T6963C_WHITE and T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Circle(120, 64, 110, T6963C_WHITE)

T6963C_circle_fill

Prototype	sub procedure T6963C_circle_fill(dim x, y as integer, dim r as longint, dim pcolor as byte)
Returns	Nothing.
Description	Draws a filled circle on Glcd. Parameters : `x:` x coordinate of the circle center `y:` y coordinate of the circle center `r:` radius size `pcolor:` color parameter. Valid values: T6963C_BLACK, T6963C_WHITE and T6963C_INVERT.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_circle_fill(120, 64, 110, T6963C_WHITE)

T6963C_Image

Prototype	sub procedure T6963C_Image(const pic as ^byte)
Returns	Nothing.
Description	Displays bitmap on Glcd. Parameters : `image:` image to be displayed. Bitmap array is located in code memory. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd. Note : Image dimension must match the display dimension.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Image(@mc)

T6963C_Ext_Image

Prototype	sub procedureT6963C_Ext_Image(dim image as longword)
Description	Displays a bitmap from an external resource.
Parameters	`pic:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_init routine.
Example	T6963C_Ext_image(153608)
Notes	Image dimension must match the display dimension. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd.

T6963C_PartialImage

Prototype	sub procedure T6963C_PartialImage(dim x_left, y_top, width, height, picture_width, picture_height as word, const image as ^byte)
Returns	Nothing.
Description	Displays a partial area of the image on a desired location. Parameters : `x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. Bitmap array is located in code memory. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd. Note : Image dimension must match the display dimension.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' Draws a 10x15 part of the image starting from the upper left corner on the coordinate (10,12). Original image size is 16x32. T6963C_PartialImage(10, 12, 10, 15, 16, 32, @image)

T6963C_Ext_PartialImage

Prototype	sub procedure T6963C_Ext_PartialImage(dim x_left, y_top, width, height, picture_width, picture_height as word, dim image as longword)
Description	Displays a partial area of the image on a desired location.
Parameters	`x_left:` x coordinate of the desired location (upper left coordinate). `y_top:` y coordinate of the desired location (upper left coordinate). `width:` desired image width. `height:` desired image height. `picture_width:` width of the original image. `picture_height:` height of the original image. `image:` image to be displayed. This parameter represents the address in the exteral resource from where the image data begins.
Returns	Nothing.
Requires	Toshiba Glcd module needs to be initialized. See T6963C_init routine.
Example	T6963C_Ext_PartialImage(10, 12, 10, 15, 16, 32, 0)
Notes	Image dimension must match the display dimension. Use the integrated Glcd Bitmap Editor (menu option Tools › Glcd Bitmap Editor) to convert image to a constant array suitable for displaying on Glcd.

T6963C_Sprite

Prototype	sub procedure T6963C_Sprite(dim px, py as byte, const pic as ^byte, dim sx, sy as byte)
Returns	Nothing.
Description	Fills graphic rectangle area (px, py) to (px+sx, py+sy) with custom size picture. Parameters : `px:` x coordinate of the upper left picture corner. Valid values: multiples of the font width `py:` y coordinate of the upper left picture corner `pic:` picture to be displayed `sx:` picture width. Valid values: multiples of the font width `sy:` picture height Note : If `px` and `sx` parameters are not multiples of the font width they will be scaled to the nearest lower number that is a multiple of the font width.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Sprite(76, 4, einstein, 88, 119) ' draw a sprite

T6963C_Set_Cursor

Prototype	sub procedure T6963C_Set_Cursor(dim x, y as byte)
Returns	Nothing.
Description	Sets cursor to row x and column y. Parameters : `x:` cursor position row number `y:` cursor position column number
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Set_Cursor(cposx, cposy)

T6963C_DisplayGrPanel

Prototype	sub procedure T6963C_DisplayGrPanel(dim n as byte)
Returns	Nothing.
Description	Display selected graphic panel. Parameters : `n:` graphic panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' display graphic panel 1 T6963C_DisplayGrPanel(1)

T6963C_DisplayTxtPanel

Prototype	sub procedure T6963C_DisplayTxtPanel(dim n as byte)
Returns	Nothing.
Description	Display selected text panel. Parameters : `n:` text panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' display text panel 1 T6963C_DisplayTxtPanel(1)

T6963C_SetGrPanel

Prototype	sub procedure T6963C_SetGrPanel(dim n as byte)
Returns	Nothing.
Description	Computes start address for selected graphic panel and set appropriate internal pointers. All subsequent graphic operations will be preformed at this graphic panel. Parameters : `n:` graphic panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' set graphic panel 1 as current graphic panel. T6963C_SetGrPanel(1)

T6963C_SetTxtPanel

Prototype	sub procedure T6963C_SetTxtPanel(dim n as byte)
Returns	Nothing.
Description	Computes start address for selected text panel and set appropriate internal pointers. All subsequent text operations will be preformed at this text panel. Parameters : `n:` text panel number. Valid values: `0` and `1`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' set text panel 1 as current text panel. T6963C_SetTxtPanel(1)

T6963C_PanelFill

Prototype	sub procedure T6963C_PanelFill(dim v as byte)
Returns	Nothing.
Description	Fill current panel in full (graphic+text) with appropriate value (0 to clear). Parameters : `v:` value to fill panel with.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' clear current panel T6963C_PanelFill(0)

T6963C_GrFill

Prototype	sub procedure T6963C_GrFill(dim v as byte)
Returns	Nothing.
Description	Fill current graphic panel with appropriate value (0 to clear). Parameters : `v:` value to fill graphic panel with.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' clear current graphic panel T6963C_GrFill(0)

T6963C_TxtFill

Prototype	sub procedure T6963C_TxtFill(dim v as byte)
Returns	Nothing.
Description	Fill current text panel with appropriate value (0 to clear). Parameters : `v:` this value increased by 32 will be used to fill text panel.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' clear current text panel T6963C_TxtFill(0)

T6963C_Cursor_Height

Prototype	sub procedure T6963C_Cursor_Height(dim n as byte)
Returns	Nothing.
Description	Set cursor size. Parameters : `n:` cursor height. Valid values: `0`..`7`.
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	T6963C_Cursor_Height(7)

T6963C_Graphics

Prototype	sub procedure T6963C_Graphics(dim n as byte)
Returns	Nothing.
Description	Enable/disable graphic displaying. Parameters : `n:` on/off parameter. Valid values: `0` (disable graphic displaying) and `1` (enable graphic displaying).
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' enable graphic displaying T6963C_Graphics(1)

T6963C_Text

Prototype	sub procedure T6963C_Text(dim n as byte)
Returns	Nothing.
Description	Enable/disable text displaying. Parameters : `n:` on/off parameter. Valid values: `0` (disable text displaying) and `1` (enable text displaying).
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' enable text displaying T6963C_Text(1)

T6963C_cursor

Prototype	sub procedure T6963C_Cursor(dim n as byte)
Returns	Nothing.
Description	Set cursor on/off. Parameters : `n:` on/off parameter. Valid values: `0` (set cursor off) and `1` (set cursor on).
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' set cursor on T6963C_Cursor(1)

T6963C_Cursor_Blink

Prototype	sub procedure T6963C_Cursor_Blink(dim n as byte)
Returns	Nothing.
Description	Enable/disable cursor blinking. Parameters : `n:` on/off parameter. Valid values: `0` (disable cursor blinking) and `1` (enable cursor blinking).
Requires	Toshiba Glcd module needs to be initialized. See the T6963C_Init routine.
Example	' enable cursor blinking T6963C_Cursor_Blink(1)

Library Example

The following drawing demo tests advanced routines of the T6963C Glcd library. Hardware configurations in this example are made for the T6963C 240x128 display, EasyAVR5A board and ATmega16.

Copy Code To Clipboard

program T6963C_240x128

include __Lib_T6963C_Consts

' T6963C module connections
dim T6963C_dataPort as byte at PORTD                    ' DATA port
dim T6963C_dataPort_Direction as byte at DDRD           ' DATA direction register

dim T6963C_ctrlwr as sbit at PORTC2_bit                 ' WR write signal
dim T6963C_ctrlrd as sbit at PORTC1_bit                 ' RD read signal
dim T6963C_ctrlcd as sbit at PORTC0_bit                 ' CD command/data signal
dim T6963C_ctrlrst as sbit at PORTC4_bit                ' RST reset signal
dim T6963C_ctrlwr_Direction as sbit at  DDC2_bit        ' WR write signal direction
dim T6963C_ctrlrd_Direction as sbit at  DDC1_bit        ' RD read signal direction
dim T6963C_ctrlcd_Direction as sbit at  DDC0_bit        ' CD command/data signal direction
dim T6963C_ctrlrst_Direction as sbit at DDC4_bit        ' RST reset signal direction

' Signals not used by library, they are set in main sub function
dim T6963C_ctrlce as sbit at PORTC3_bit                 ' CE signal
dim T6963C_ctrlfs as sbit at PORTC6_bit                 ' FS signal
dim T6963C_ctrlmd as sbit at PORTC5_bit                 ' MD signal
dim T6963C_ctrlce_Direction as sbit at DDC3_bit         ' CE signal direction
dim T6963C_ctrlfs_Direction as sbit at DDC6_bit         ' FS signal direction
dim T6963C_ctrlmd_Direction as sbit at DDC5_bit         ' MD signal direction
' End T6963C module connections

dim   panel as byte         ' current panel
          i as word         ' general purpose register
       curs as byte         ' cursor visibility
      cposx,
      cposy as word         ' cursor x-y position
      txtcols as byte       ' number of text coloms
      txt, txt1 as string[29]

main:
  txt1 = " EINSTEIN WOULD HAVE LIKED mE"
  txt  = " GLCD LIBRARY DEMO, WELCOME !"

  DDRA = 0x00                   ' configure PORTA as input

  DDA0_bit = 0                  ' Set PB0 as input
  DDA1_bit = 0                  ' Set PB1 as input
  DDA2_bit = 0                  ' Set PB2 as input
  DDA3_bit = 0                  ' Set PB3 as input
  DDA4_bit = 0                  ' Set PB4 as input

  T6963C_ctrlce_Direction = 1
  T6963C_ctrlce = 0             ' Enable T6963C
  T6963C_ctrlfs_Direction = 1
  T6963C_ctrlfs = 0             ' Font Select 8x8
  T6963C_ctrlmd_Direction = 1
  T6963C_ctrlmd = 0             ' Column number select

  panel = 0
  i = 0
  curs = 0
  cposx = 0
  cposy = 0

  ' Initialize T6369C
  T6963C_Init(240, 128, 8)

'   *
'   * Enable both graphics and text display at the same time
'   *
  T6963C_graphics(1)
  T6963C_text(1)

'   *
'   * Text messages
'   *
  T6963C_write_text(txt, 0, 0, T6963C_ROM_MODE_XOR)
  T6963C_write_text(txt1, 0, 15, T6963C_ROM_MODE_XOR)


'   *
'   * Cursor
'   *
  T6963C_cursor_height(8)       ' 8 pixel height
  T6963C_set_cursor(0, 0)       ' Move cursor to top left
  T6963C_cursor(0)              ' Cursor off

'   *
'   * Draw rectangles
'   *
  T6963C_rectangle(0, 0, 239, 127, T6963C_WHITE)
  T6963C_rectangle(20, 20, 219, 107, T6963C_WHITE)
  T6963C_rectangle(40, 40, 199, 87, T6963C_WHITE)
  T6963C_rectangle(60, 60, 179, 67, T6963C_WHITE)

'   *
'   * Draw a cross
'   *
  T6963C_line(0, 0, 239, 127, T6963C_WHITE)
  T6963C_line(0, 127, 239, 0, T6963C_WHITE)

'   *
'   * Draw solid boxes
'   *
  T6963C_box(0, 0, 239, 8, T6963C_WHITE)
  T6963C_box(0, 119, 239, 127, T6963C_WHITE)

'   *
'   * Draw circles
'   *
  T6963C_circle(120, 64, 10, T6963C_WHITE)
  T6963C_circle(120, 64, 30, T6963C_WHITE)
  T6963C_circle(120, 64, 50, T6963C_WHITE)
  T6963C_circle(120, 64, 70, T6963C_WHITE)
  T6963C_circle(120, 64, 90, T6963C_WHITE)
  T6963C_circle(120, 64, 110, T6963C_WHITE)
  T6963C_circle(120, 64, 130, T6963C_WHITE)

  T6963C_sprite(76, 4, @einstein, 88, 119)      ' Draw a sprite

  T6963C_setGrPanel(1)                          ' Select other graphic panel

  T6963C_image(@mikroE_240x128_bmp)

  while TRUE                                    ' Endless loop


    '*
    '* If PA0 is pressed, toggle the display between graphic panel 0 and graphic 1
    '*
    if( PINA0_bit <> 0) then
        Inc(panel)
        panel = panel and 1
        T6963C_setPtr((T6963C_grMemSize + T6963C_txtMemSize) * panel, T6963C_GRAPHIC_HOME_ADDRESS_SET)
        Delay_ms(300)

    '*
    '* If PA1 is pressed, display only graphic panel
    '*
    else
      if ( PINA1_bit <> 0) then
          T6963C_graphics(1)
          T6963C_text(0)
          Delay_ms(300)

    '*
    '* If PA2 is pressed, display only text panel
    '*
      else
        if ( PINA2_bit <> 0) then
            T6963C_graphics(0)
            T6963C_text(1)
            Delay_ms(300)

    '*
    '* If PA3 is pressed, display text and graphic panels
    '*
        else
          if ( PINA3_bit <> 0) then
              T6963C_graphics(1)
              T6963C_text(1)
              Delay_ms(300)

    '*
    '* If PA4 is pressed, change cursor
    '*
          else
            if( PINA4_bit <> 0) then
              Inc(curs)
              if (curs = 3) then
                curs = 0
              end if
              select case curs
                case 0
                   ' no cursor
                   T6963C_cursor(0)
                case 1
                   ' blinking cursor
                   T6963C_cursor(1)
                   T6963C_cursor_blink(1)
                case 2
                   ' non blinking cursor
                   T6963C_cursor(1)
                   T6963C_cursor_blink(0)
              end select
                Delay_ms(300)

            end if
          end if
        end if
      end if
    end if

    '*
    '* Move cursor, even if not visible
    '*
    Inc(cposx)
    if (cposx = T6963C_txtCols) then
      cposx = 0
      Inc(cposy)
      if (cposy = T6963C_grHeight / T6963C_CHARACTER_HEIGHT) then
        cposy = 0
      end if
    end if
    T6963C_set_cursor(cposx, cposy)

    Delay_ms(100)
  wend
end.

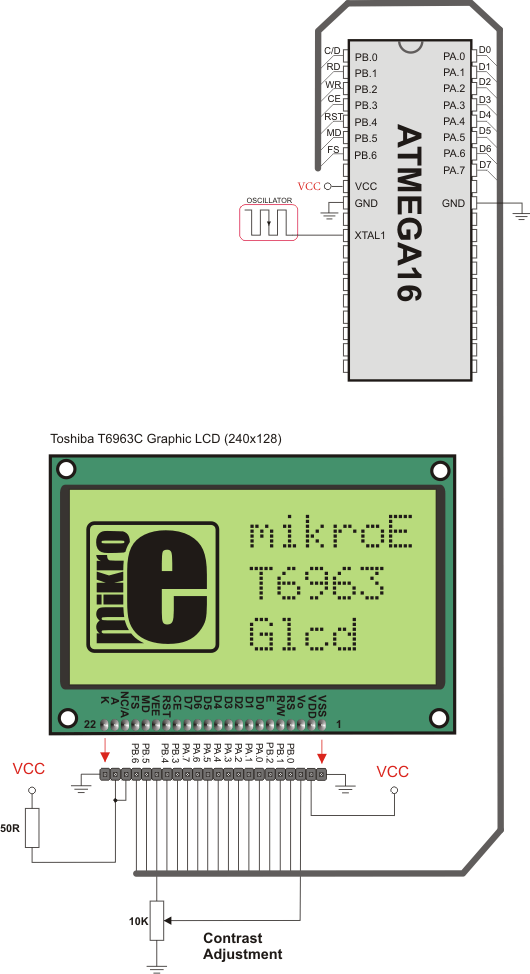

HW Connection

T6963C Glcd HW connection

Want more examples and libraries?
Find them on
