Keypad Library

The mikroBasic PRO for AVR provides a library for working with 4x4 keypad. The library routines can also be used with 4x1, 4x2, or 4x3 keypad. For connections explanation see schematic at the bottom of this page.

External dependencies of Keypad Library

The following variable must be defined in all projects using Keypad Library:	Description :	Example :
`dim keypadPort as byte sfr external`	Keypad Port.	`dim keypadPort as byte at PORTB`
`dim keypadPort_Direction as byte sfr external`	Direction of the Keypad Port.	`dim keypadPort_Direction as byte at DDRB`

Keypad_Init

Prototype	sub procedure Keypad_Init()
Returns	Nothing.
Description	Initializes port for working with keypad.
Requires	Global variables : `keypadPort` - Keypad port `keypadPort_Direction` - Direction of the Keypad port must be defined before using this function.
Example	' Initialize PORTB for communication with keypad dim keypadPort as byte at PORTB dim keypadPort_Direction as byte at DDRB ... Keypad_Init()

Keypad_Key_Press

Prototype	sub function Keypad_Key_Press() as byte
Returns	The code of a pressed key (1..16). If no key is pressed, returns 0.
Description	Reads the key from keypad when key gets pressed.
Requires	Port needs to be initialized for working with the Keypad library, see Keypad_Init.
Example	dim kp as byte ... kp = Keypad_Key_Press()

Keypad_Key_Click

Prototype	sub function Keypad_Key_Click() as byte
Returns	The code of a clicked key (1..16). If no key is clicked, returns 0.
Description	Call to `Keypad_Key_Click` is a blocking call: the function waits until some key is pressed and released. When released, the function returns 1 to 16, depending on the key. If more than one key is pressed simultaneously the function will wait until all pressed keys are released. After that the function will return the code of the first pressed key.
Requires	Port needs to be initialized for working with the Keypad library, see Keypad_Init.
Example	dim kp as byte ... kp = Keypad_Key_Click()

Library Example

This is a simple example of using the Keypad Library. It supports keypads with 1..4 rows and 1..4 columns. The code being returned by Keypad_Key_Click() function is in range from 1..16. In this example, the code returned is transformed into ASCII codes [0..9,A..F] and displayed on Lcd. In addition, a small single-byte counter displays in the second Lcd row number of key presses.

Copy Code To Clipboard

program Keypad_Test
dim kp, cnt, oldstate as byte
    txt as string[7]

' Keypad module connections
dim keypadPort as byte at PORTB
dim keypadPort_Direction as byte at DDRB
' End Keypad module connections

' LCD pinout definition
dim LCD_RS as sbit at PORTD2_bit
dim LCD_EN as sbit at PORTD3_bit
    LCD_D4 as sbit at PORTD4_bit
    LCD_D5 as sbit at PORTD5_bit
    LCD_D6 as sbit at PORTD6_bit
    LCD_D7 as sbit at PORTD7_bit

dim LCD_RS_Direction as sbit at DDD2_bit
    LCD_EN_Direction as sbit at DDD3_bit
    LCD_D4_Direction as sbit at DDD4_bit
    LCD_D5_Direction as sbit at DDD5_bit
    LCD_D6_Direction as sbit at DDD6_bit
    LCD_D7_Direction as sbit at DDD7_bit
' end LCD pinout definitions

main:
  oldstate = 0
  cnt = 0                                ' Reset counter
  Keypad_Init()                          ' Initialize Keypad
  Lcd_Init()                             ' Initialize LCD
  Lcd_Cmd(_LCD_CLEAR)                    ' Clear display
  Lcd_Cmd(_LCD_CURSOR_OFF)               ' Cursor off
  Lcd_Out(1, 1, "Key  :")                ' Write message text on LCD
  Lcd_Out(2, 1, "Times:")

  while TRUE

    kp = 0                             ' Reset key code variable

    ' Wait for key to be pressed and released
    while ( kp = 0 )
      kp = Keypad_Key_Click()          ' Store key code in kp variable
    wend
    ' Prepare value for output, transform key to it"s ASCII value
    select case kp
      'case 10: kp = 42   ' "*"        ' Uncomment this block for keypad4x3
      'case 11: kp = 48   ' "0"
      'case 12: kp = 35   ' "#"
      'default: kp += 48

    case 1
      kp = 49  ' 1               ' Uncomment this block for keypad4x4
    case 2
      kp = 50  ' 2
    case 3
      kp = 51  ' 3
    case 4
      kp = 65  ' A
    case 5
      kp = 52  ' 4
    case 6
      kp = 53  ' 5
    case 7
      kp = 54  ' 6
    case 8
      kp = 66  ' B
    case 9
      kp = 55  ' 7
    case 10
      kp = 56  ' 8
    case 11
      kp = 57  ' 9
    case 12
      kp = 67  ' C
    case 13
      kp = 42  ' *
    case 14
      kp = 48  ' 0
    case 15
      kp = 35  ' #
    case 16
      kp = 68  ' D

    end select

    if (kp <> oldstate) then         ' Pressed key differs from previous
      cnt = 1
      oldstate = kp
    else                             ' Pressed key is same as previous
      Inc(cnt)
    end if
    Lcd_Chr(1, 10, kp)               ' Print key ASCII value on LCD

    if (cnt = 255) then              ' If counter varialble overflow
      cnt = 0
      Lcd_Out(2, 10, "     ")
    end if

    WordToStr(cnt, txt)              ' Transform counter value to string


    Lcd_Out(2, 10, txt)              ' Display counter value on LCD
  wend
end.

HW Connection

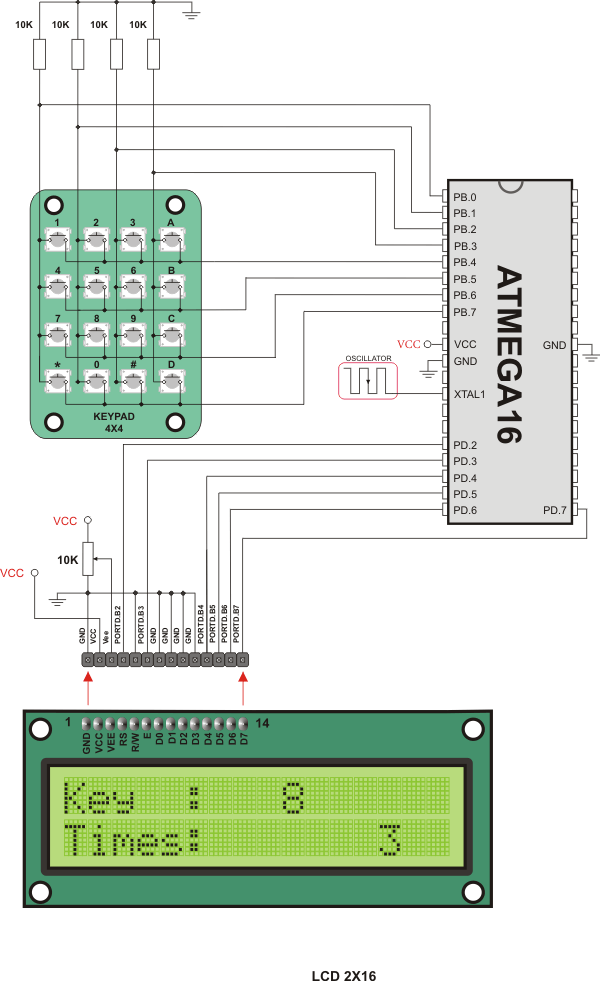

4x4 Keypad connection scheme
