Read Modify Write Problem
The Microchip microcontrollers use a sequence known as Read-Modify-Write (RMW) when changing an output state (1 or 0) on a pin. This can cause unexpected behavior under certain circumstances.
When your program changes the state on a specific pin, for example RB0 in PORTB, the microcontroller first READs all 8 bits of the PORTB register which represents the states of all 8 pins in PORTB (RB7-RB0).
The microcontroller then stores this data in the MCU. The bit associated with RB that you've commanded to MODIFY is changed, and then the microcontroller WRITEs all 8 bits (RB7-RB0) back to the PORTB register.
During the first reading of the PORT register, you will be reading the actual state of the physical pin.
The problem arises when an output pin is loaded in such a way that its logic state is affected by the load. Instances of such loads are LEDs without current-limiting resistors or loads with high capacitance or inductance.
For example, if a capacitor is attached between pin and ground, it will take a short while to charge when the pin is set to 1.
On the other hand, if the capacitor is discharged, it acts like a short circuit, forcing the pin to '0' state, and, therefore, a read of the PORT register will return 0, even though we wrote a 1 to it.
Lets analyze the following example :
PORTB.B0 = 1; PORTB.B1 = 1;
Assume that the PORTB is initially set to zero, and that all pins are set to output. Let's say we connect a discharged capacitor to RB0 pin.

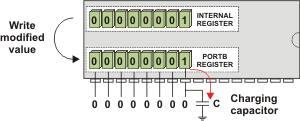

The first line, PORTB.B0 = 1;
will be decoded like in this way :
|

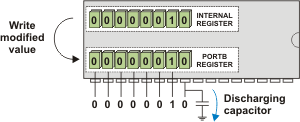

The second line, PORTB.B1 = 1;
will be decoded like in this way :
|
To correct the problem in the code, insert a delay after each PORTB.Bx = 1
line, or modify the entire PORTB register in a single line PORTB = 0b00000011
.
This problem can be avoided by using LATx register when writing to ports, rather than using PORTx registers.
Writing to a LATx register is equivalent to writing to a PORTx register, but readings from LATx registers return the data value held in the port latch, regardless of the state of the actual pin.
For example, lets analyze the following example :
LATB.B0 = 1; LATB.B1 = 1;

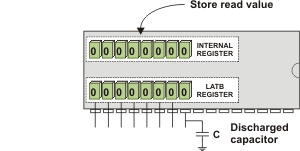

The first line, LATB.B0 = 1;
will be decoded like in this way :
|

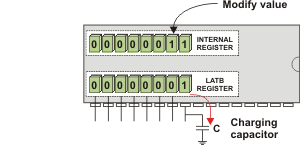

The second line, LATB.B1 = 1;
will be decoded like in this way :
|
When to use LATx instead of PORTx
Depending on your hardware, one may experience unpredictable behavior when using PORTx bits for driving output.
Displays (GLCD, LCD), chip select pins in SPI interfaces and other cases when you need fast and reliable output, LATx should be used instead of PORTx.
